Truck Dock Mobile Platform Steps – 1000mm to 1800mm Height (5–9 Treads), 1200 x 700mm Platform, 500kg

Heavy-duty mobile steel steps that make loading and unloading lorries and containers safer and quicker. With access from three sides and a gentle 45° climbing angle, they give a stable, practical way to move goods from vehicles into the warehouse.

Features

• Three exit chains let workers step safely on and off the platform wherever needed, such as onto a loading bay, container, lorry, vehicle or into the warehouse. The top chain sits at about 950mm and the lower chain at about 560mm.
• Dual chains reduce the risk of a user slipping under a single chain. Keep them fastened except when stepping from the platform onto another surface such as a lorry bed.
• Removable chains give a clear view and flexible three-sided access, ideal for bridging onto lorry beds, and let you place the steps at the approach angle that suits a tight loading bay.
• Spacious 1200mm x 700mm working platform with room for users and equipment.

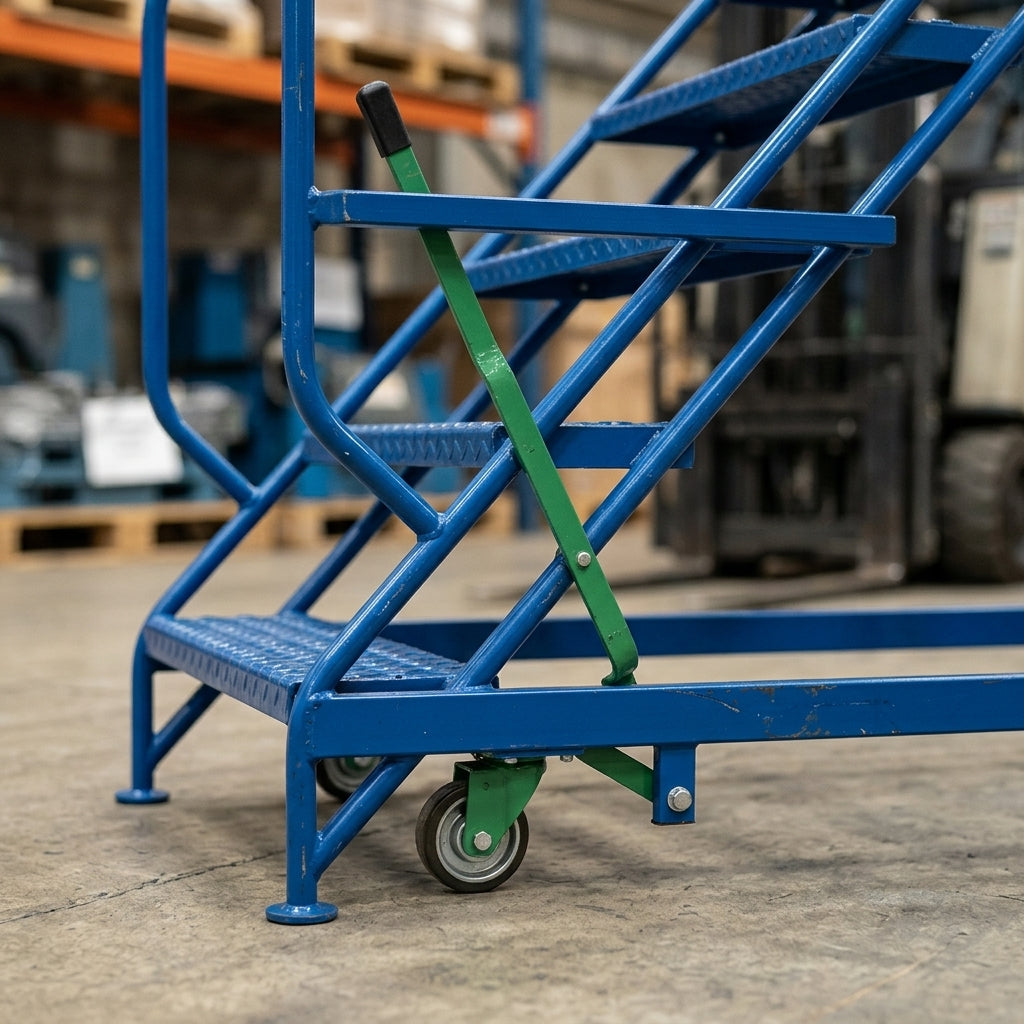

• A side brake holds the steps still during use, so nobody needs to hold them.
• Fitted with wheels for easy positioning.
• Choose punched metal or PVC-covered treads to reduce slips; confirm your choice with us after ordering.
• Dual handrails let users keep three points of contact at all times.
• A high-visibility blue finish alerts passers-by, staff and drivers to the steps.

Build Quality

• Heavy-duty design rated to 500kg.
• Welded construction from Electric Resistance Welded (ERW) steel tube, light, strong and long-lasting.
• High-gloss powder coating is water-resistant, scratch-resistant, easy to clean and environmentally friendly. It is not waterproof, so the steps can be used outdoors in good weather but should be stored indoors.
• Made in Britain and delivered fully assembled.
• One-year warranty, extendable to four years after purchase.
• Customisation available, including other colours; a safety gate can be fitted instead of chains if preferred.

Sizes

Platform heights from 1000mm (5 treads) to 1800mm (9 treads). The tread count includes the top platform, so 5 treads means 4 treads plus the platform. Treads are 700mm W x 200mm L. The main frame is about 750mm wide, and the overall width at the widest point (the axle) is 995mm.
