Lengthways Folding Aluminium Wheelchair Ramp 1000mm to 2800mm – 400kg, Anti-Slip Mesh

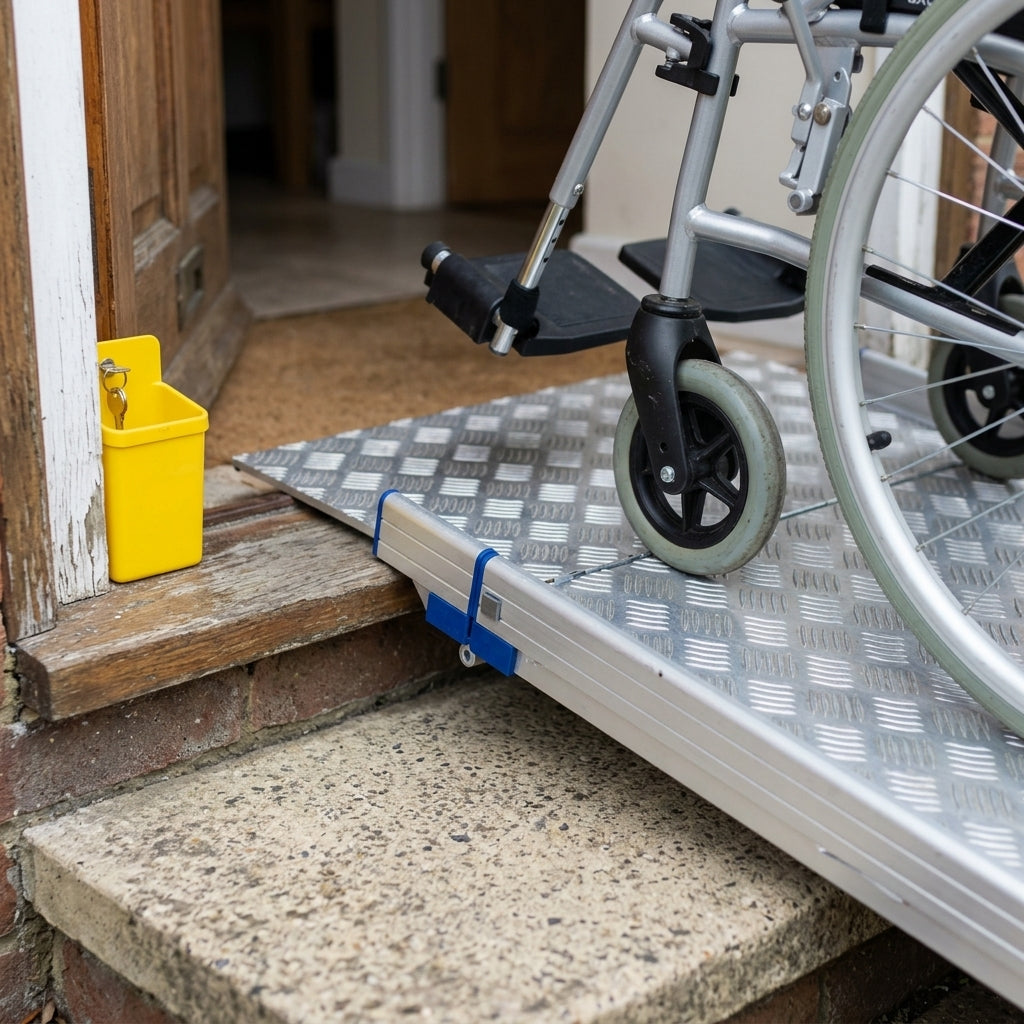

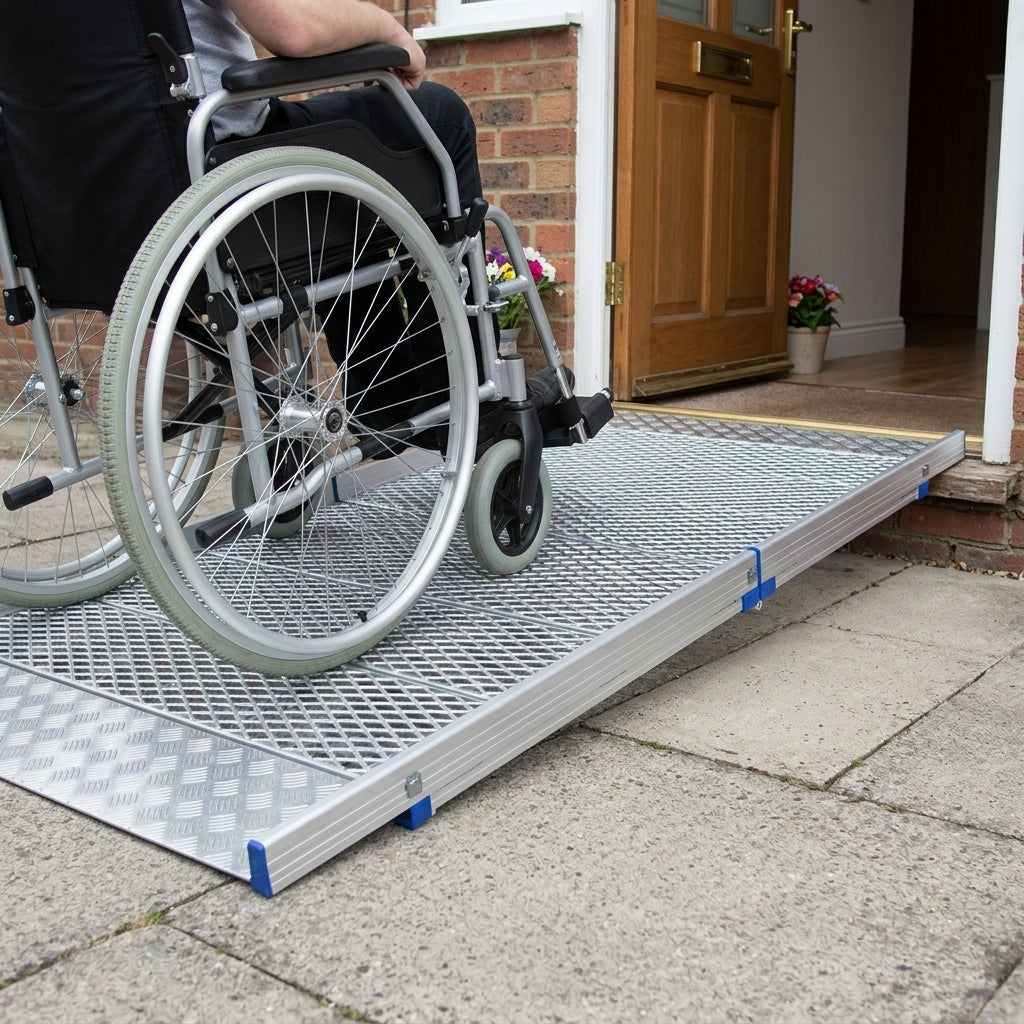

A premium folding ramp that helps you get over steps, kerbs and doorways with a manual wheelchair, electric wheelchair or mobility scooter. It folds lengthways and can also be used to load wheelchairs and scooters into vehicles, or to move goods over steps and into vans, making it ideal for shops and commercial sites that need both wheelchair access and safe loading. Made in Sweden with an anti-slip mesh surface and a three-year warranty.

Features

• Folds lengthways to half its length for easy storage and transport, and clips shut to stay closed in transit.
• Built-in carry handles make it simple to lift and move.
• Easy to use, with no installation: unfold, rest it on the step or van and start loading. The curved rest-on connection has a grip surface so it holds firmly to the step, while the base sits firmly on the floor and the ramp's weight and loading angle help keep it in place.
• High-traction surface combining mesh and chequered plating for strong grip.
• Angled foot gives a smooth entry onto the ramp. Its design lets you use the ramp at load heights from 100mm up to the maximum for your chosen length; ask about lower heights.
• 55mm high safety edges on each side stop wheels running off the edge.
• Flat hinge makes it suitable for three-wheeled mobility aids.
• 400kg capacity, so it can also be used to load goods and equipment.

Use & Gradient

• Suitable for empty or occupied manual and electric wheelchairs and mobility scooters; unoccupied scooters can also be loaded into a car.
• Maximum gradient 1 in 6, with 1 in 8 recommended. A steeper gradient can be used when loading an empty electric wheelchair or scooter.
• Designed for items with air-filled wheels only; it is not suitable for caster wheels or solid wheels, such as cages and pallet trucks.

Build Quality

• Lightweight aluminium, weighing 11kg to 29kg depending on length.
• Premium quality and extremely durable, for commercial and domestic use.
• Made in Sweden. Easy to fit. Customisable.
• Classified as a Class 1 Medical Device.
• Three-year warranty.

Sizes

• Lengths from 1000mm to 2800mm, with a maximum load height of 300mm to 840mm depending on length.
• 820mm internal width; 920mm overall width including handles.

Good to Know

• Pictures are for illustration only; the actual product may vary due to product improvements.
