Heavy Duty 2-Channel Rubber Cable Protector for High-Clearance Vehicles – 900mm L x 610mm W x 105mm H
900mm L x 610mm W x 105mm H
£162.00
Skip to product information
Heavy Duty 2-Channel Rubber Cable Protector for High-Clearance Vehicles – 900mm L x 610mm W x 105mm H
£162.00

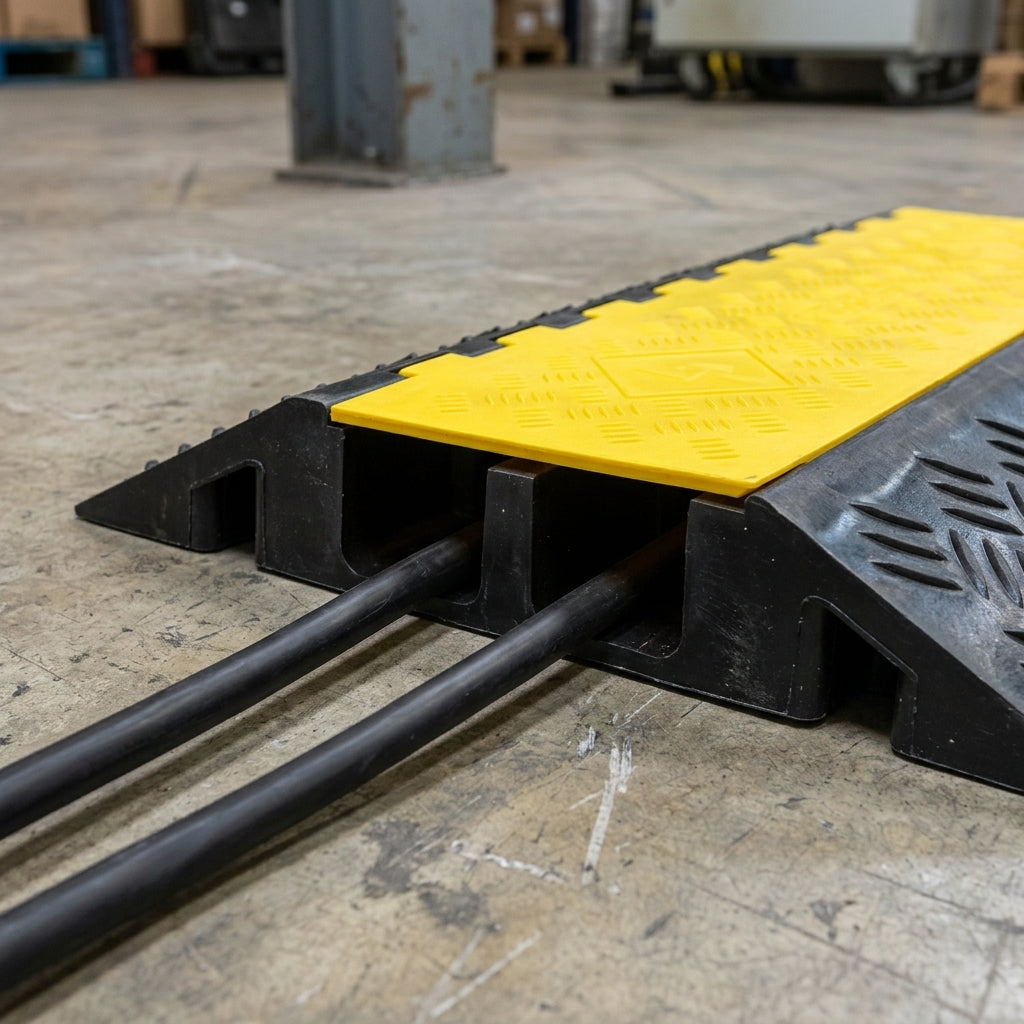

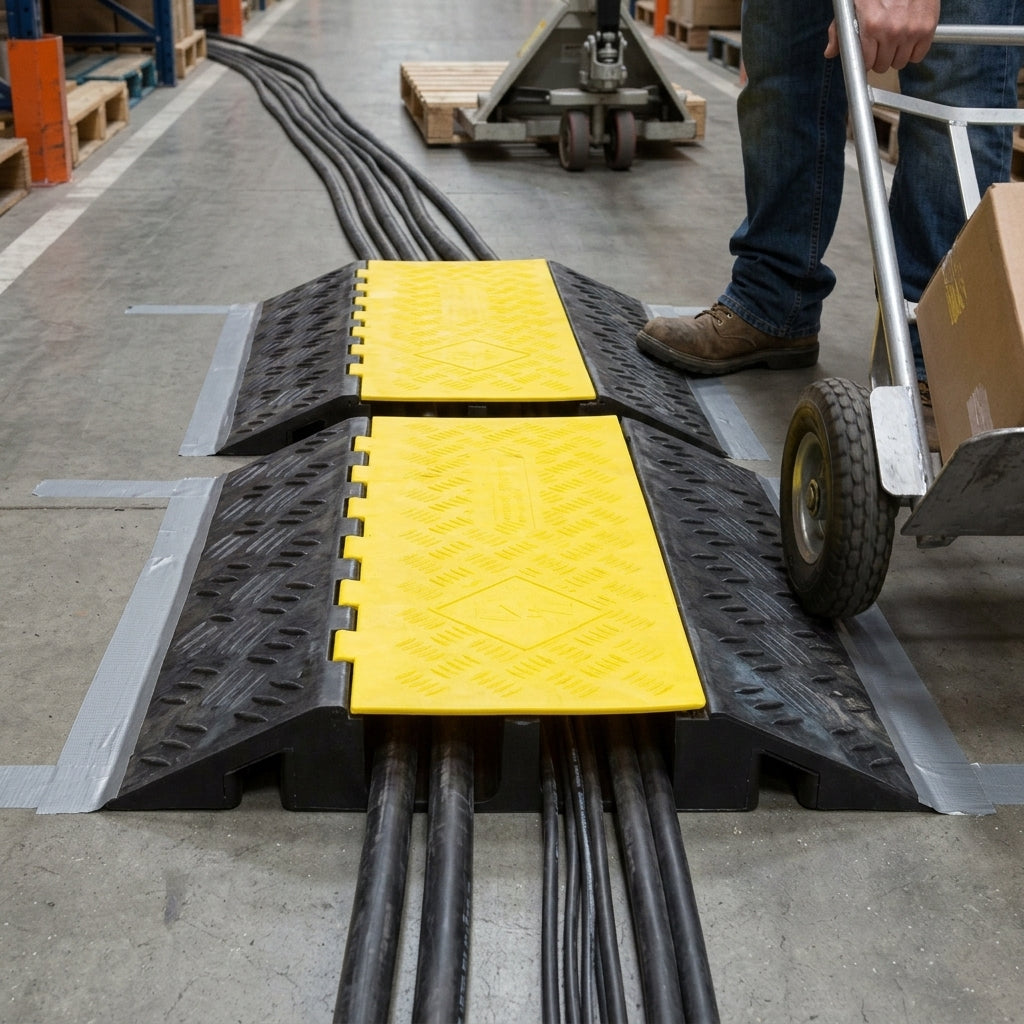

A straight, heavy-duty interlocking cable protector with two large 90mm x 85mm channels. At 105mm high it is intended only for commercial vehicles and vehicles with high ground clearance.
Features
- Measures 900mm long x 610mm wide x 105mm high.
- 2 channels, each 90mm wide x 85mm high, taking cables or hoses up to 82.55mm diameter.
- Made from 100% recycled rubber.
- T-shaped connectors make installation and linking sections easy.
- Chequered anti-slip surface.
- High-visibility contrasting yellow and black body.
Load & Speed
- Rated to 10,000kg per axle, with no more than 5,450kg per tyre.
- Designed to be crossed at a maximum of 5mph.
Good to Know
- Speed bump signs are recommended to slow traffic and warn road users of the cable protectors.
- When choosing a cable protector, pick the lowest height that suits your cables to give the most vehicles the greatest clearance.
- Each section weighs approx. 28.5kg. One-year warranty.
- The finished product may vary slightly from the photos due to ongoing product improvements.
Details
| Capacity (kg) | 18000 |
|---|---|
| Height (mm) | 105 |
| Internal Width (mm) | Maximum cable/hose diameter 82.55mm |
| Length (mm) | 900 |
| Weight (kg) | 28.5 |
| Width (mm) | 610 |
| One Year Warranty | Yes |
| Bulk Prices Available | Yes |
| Easy to Fit | Yes |
| High Visability | Yes |
| Leave Outside | Yes |
| Channel Width (mm) | 90 |
| Channel Size (mm) | 90 x 85 |
| Channel Height (mm) | 85 |
| Max Cable/ Hose Diameter (mm) | 82,55 |
| No. Channels | 2 |
| Capacity per Axle (kg) | 10,000 |
| Operating Temperature (deg. F) | -40°F up to 131°F |
| Durometer A | A77 |
| Elongation At Break | 160% |
| Tensile Strength | 5 MPa |
| Speedlimit (mph) | 5 |
| Colour Options | Black/Yellow |
