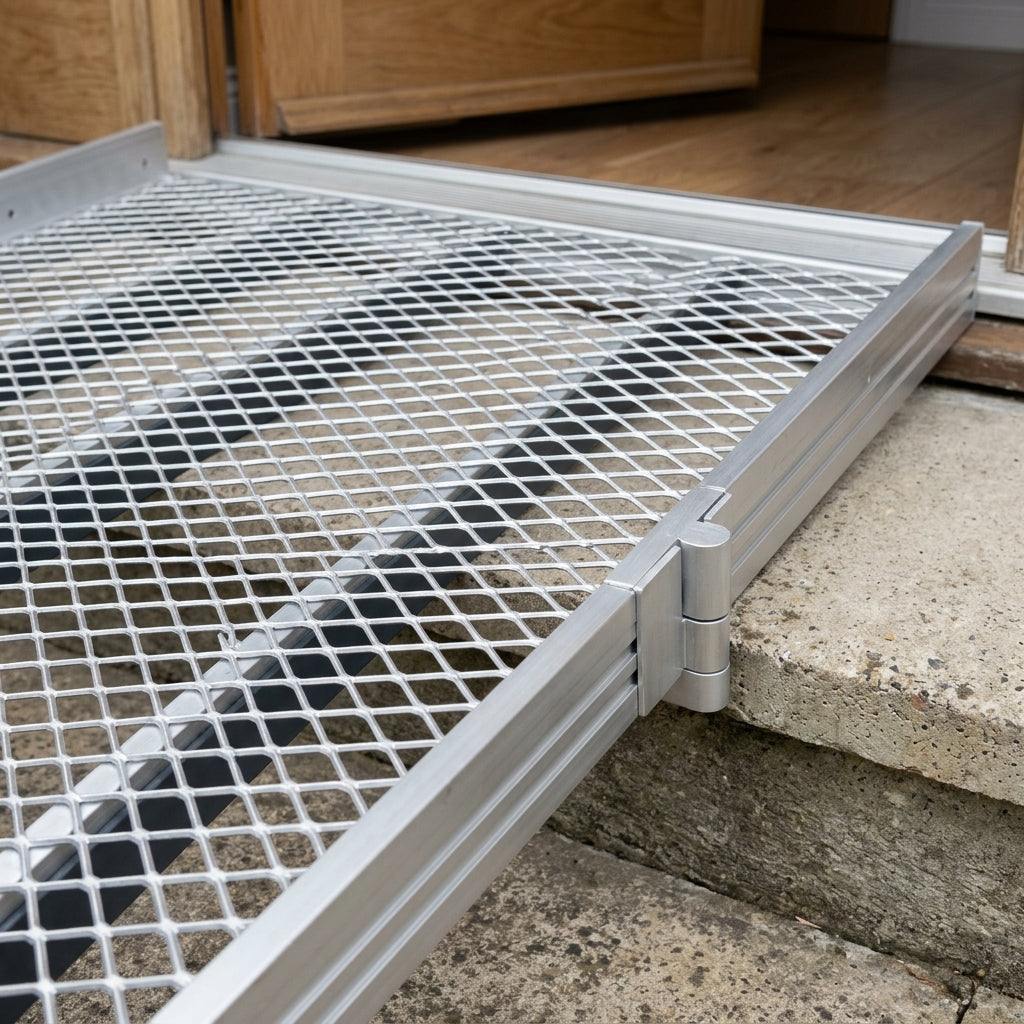

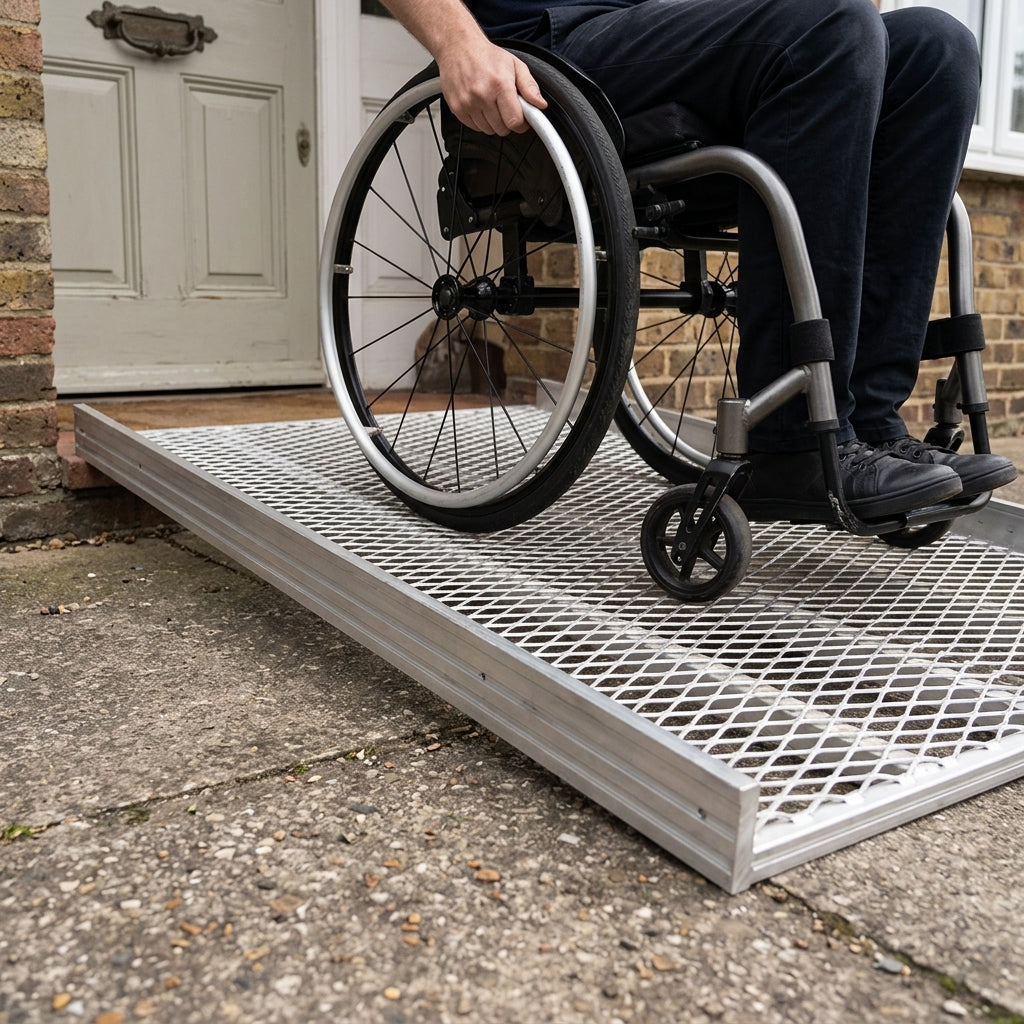

1300mm Wide Modular Wheelchair Ramp Section – 500mm to 3000mm L, 400kg Capacity
500mm L x 1300mm W
£1,644.00
Skip to product information
1300mm Wide Modular Wheelchair Ramp Section – 500mm to 3000mm L, 400kg Capacity
£1,644.00
A 1300mm wide ramp section for a lightweight modular ramp system, available in 500mm, 1000mm, 1250mm, 1500mm, 2500mm and 3000mm lengths. Every section has a 1300mm usable width and a maximum load of 400kg, and suits manual wheelchairs, electric wheelchairs and mobility scooters. The price is for the ramp section only – handrails, legs, fixings and other attachments are not included. Matching platforms and landings for the 1300mm system are also available.
Sizes & Weights
- 500mm L (20in) – 12kg
- 1000mm L (40in) – 16kg
- 1250mm L (49in) – 19kg
- 1500mm L (59in) – 22kg
- 2500mm L (98in) – 35kg
- 3000mm L (118in) – 39kg
- All sections: 1300mm (51in) usable width, 400kg (880lb) maximum load.
Features
- Easy to fit and suitable to leave outside.
- Made in Europe.
- Customisable – modular ramps can be tailored to your area and needs.
- Modular ramps are usually built to a 1:12 gradient; a gentler gradient can be provided when needed, and the steepest the kits can be built to is 1:10.
- Pictures are for illustration only; the product may vary slightly due to product improvements.
Details
| Capacity (kg) | 400 |
|---|---|
| Internal Width (mm) | 1300 |
| Length (mm) | 500-3000 |
| Weight (kg) | 12-39 |
| Customisable | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| European Made | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Leave Outside | Yes |
