2200mm Folding Aluminium Loading Ramp with Double Support Bar – 285mm W, 340kg to 680kg per Ramp

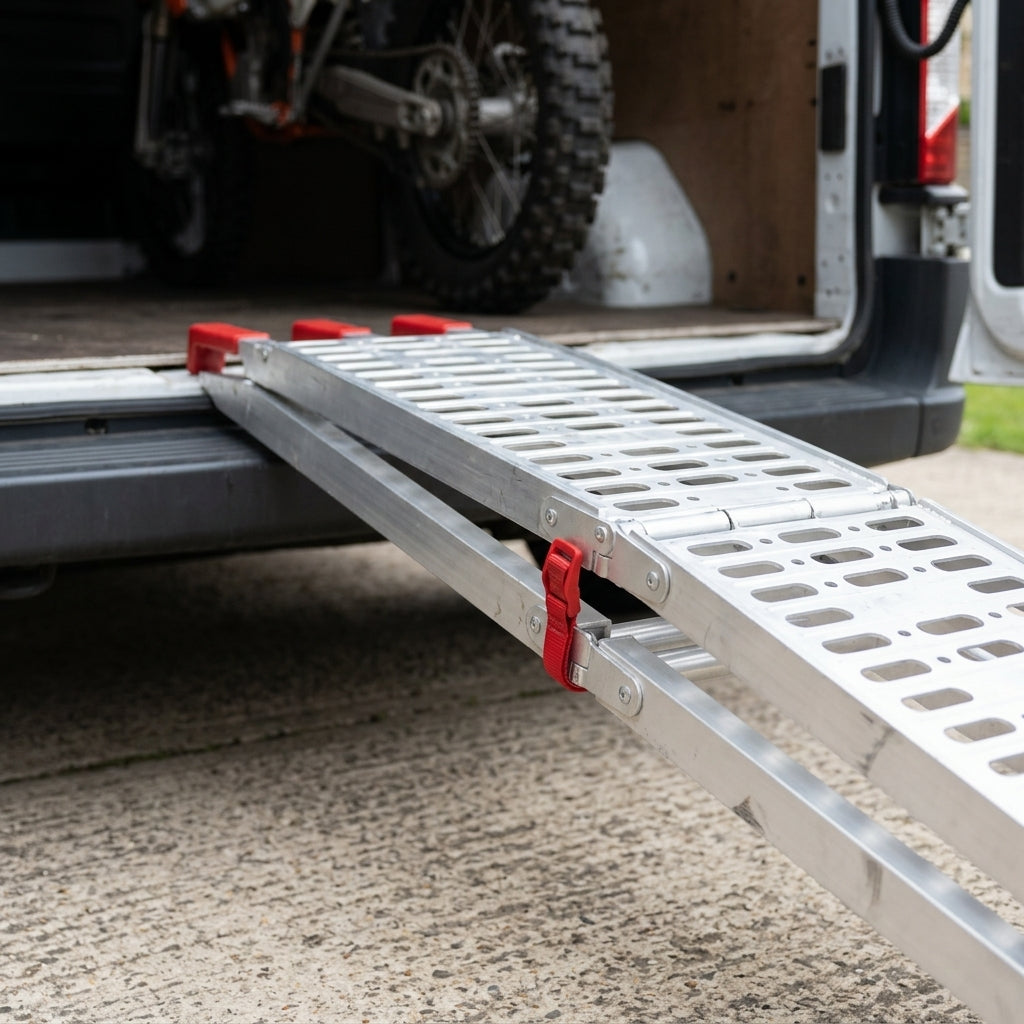

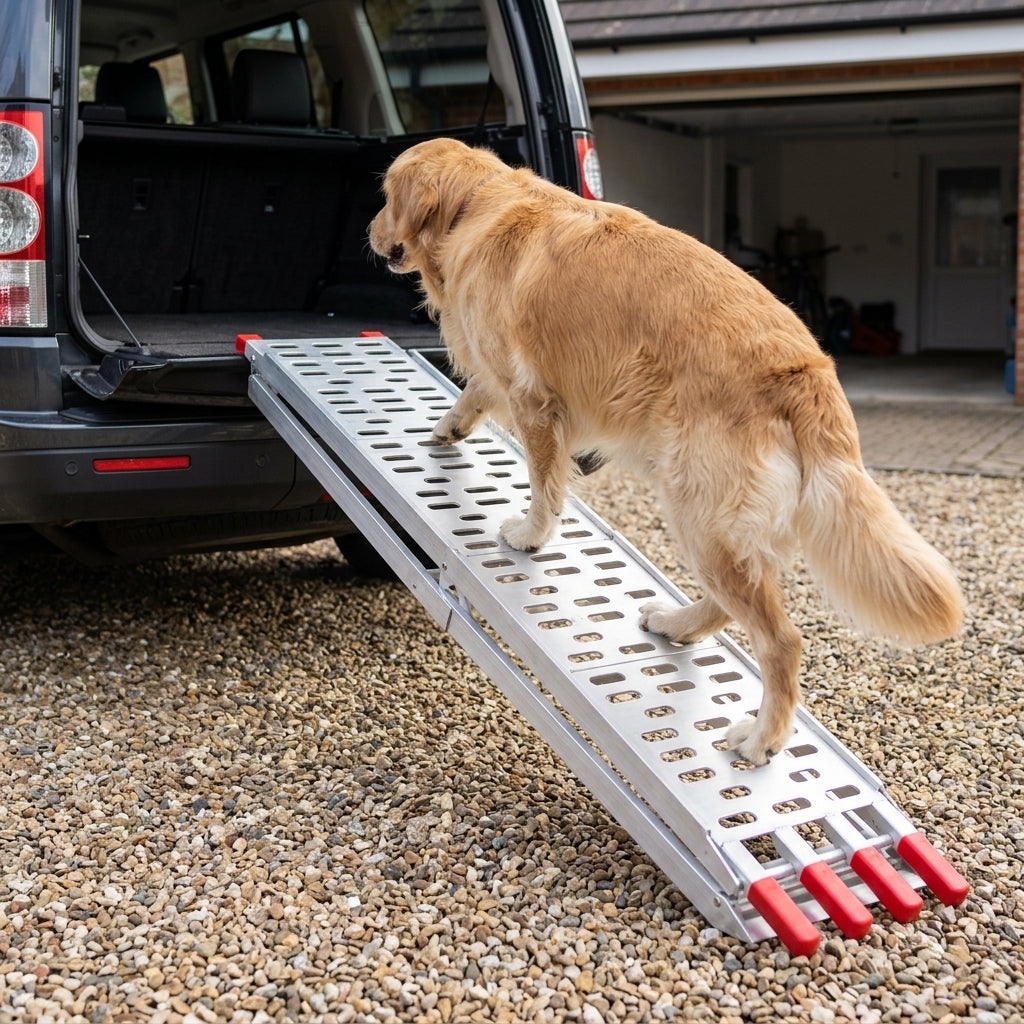

A lightweight folding aluminium loading ramp with a cut-out grip surface and a double support bar for extra strength and durability. Use one ramp for motorbikes and mopeds, or a pair for quad bikes, ATVs, ride-on mowers and other wheeled garden machinery. Each ramp is 2200mm long x 285mm wide and suits loading heights between 520mm and 666mm. Choose it with or without adjustable support legs.

Capacity

• Without legs: 340kg per ramp, 680kg across a pair.
• With legs: 680kg per ramp, 1360kg across a pair.
• The support legs adjust from 340mm to 425mm. If you buy the ramp with legs, the legs must always be used when loading and unloading.

Features

• Folds to half its length (1100mm) and clips shut so it will not open in transit.
• Built-in carry handle for easy lifting and transport.
• Weighs only 8.5kg to 8.8kg per ramp, depending on the style chosen.
• Angled foot gives stability and a smooth entry onto the ramp.
• Coated rest-on connection keeps the ramp in place and protects your vehicle from damage.
• Slightly curved for better ground clearance and easier loading.
• Anti-slip cut-out surface gives traction and lets dirt and debris drop through.
• Safety straps supplied to secure the ramp to the vehicle while loading.
• No installation – unfold, rest it on your vehicle, strap it and start loading.
• Robot-welded aluminium alloy for a solid, strong and durable build that can be stored indoors or left outside.
• One-year warranty.

Choosing the Right Ramp

• Measure the vertical height from the ground to where the ramp will rest (your load height). If it is above 666mm, you need a longer ramp, such as our wide loading ramps in lengths up to 3m.
• If you prefer to sit on your motorcycle while loading, a motorcycle ramp kit with a combined width of 1000mm is available in that wide range; its single ramp is 440mm wide.

Good to Know

• Designed for domestic use only – not for commercial or professional use.
• Not suitable for single-axle or tracked machinery or vehicles, cars, caster wheels, solid wheels, or tyres under 100mm wide (so not for flight cases or trolleys).
• Pictures are for illustration only; the product may vary slightly due to product improvements.
