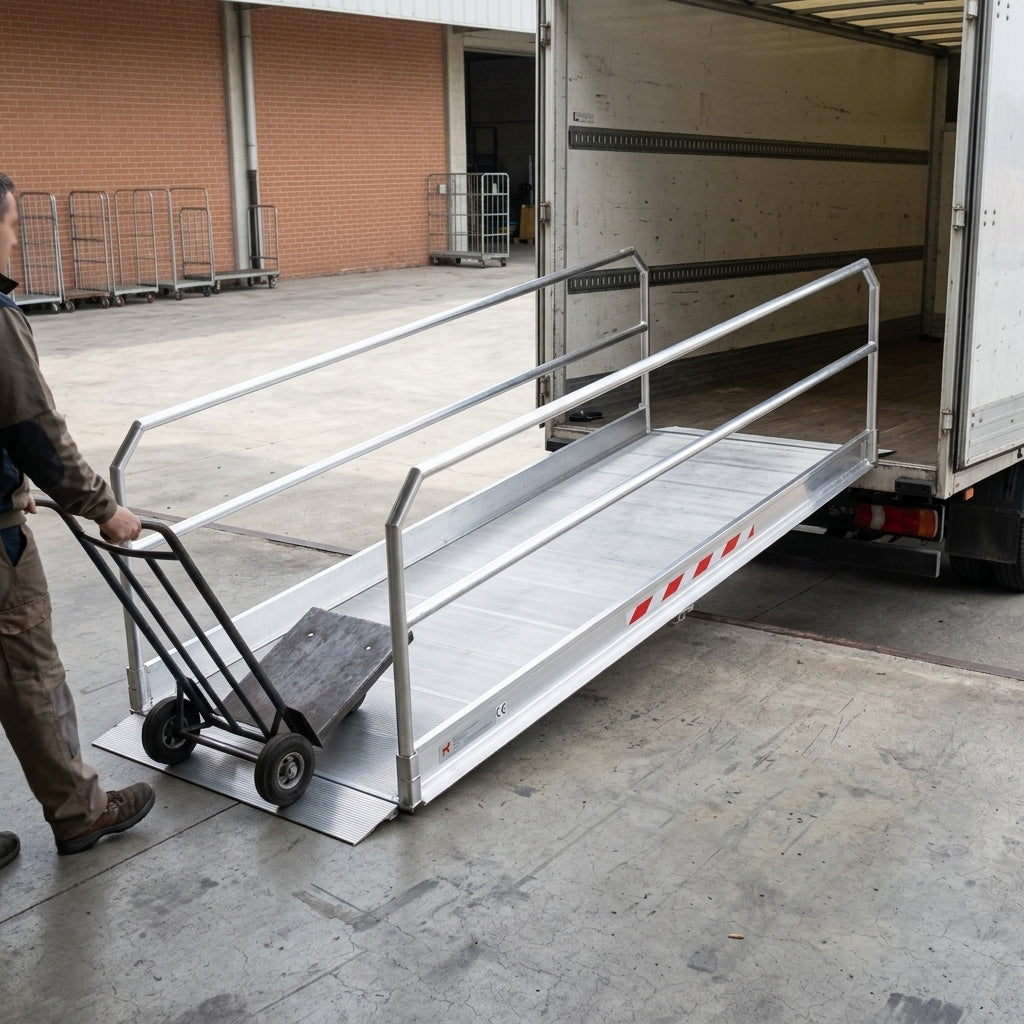

Vehicle Gangway with Handrails – 2660mm L x 1000mm W, 3514kg Capacity, Non-Slip

A temporary, portable vehicle gangway with handrails and a non-slip surface, 2660mm long with a 1000mm internal width (1120mm total width) and a 3514kg capacity. It gives vehicles and pedestrians a safe way over trenches, dips and other small height differences, for example during excavation works.

Features

• Rest-on connection: simply put the gangway in place and start using it. Its own weight helps keep it in position.
• Foldable edges reduce its size for transport.
• 200mm high footstops.
• Ergonomic handrails 1018mm high, which fold down for transport.
• Non-slip walking and driving surface.
• Customisable, easy to fit, European made and can be left outside.
• Finished in black. Two-year warranty.

Sizes & Capacity

• Length: 2660mm
• Internal width: 1000mm
• Total width: 1120mm
• Weight: 72kg
• Capacity: 3514kg
• Rubber-tyred vehicles (900mm vehicle width): 3514kg
• Tracked vehicles (750mm vehicle width): 3000kg

Safe Use

• Use only at a maximum gradient of 5%.
• Leave a minimum rest of 330mm on both sides of the gangway so it sits securely.
• Minimum rubber footprint of 200mm x 200mm.
• Vehicle load should be spread between 40% and 60% across the axles.
• Keep the handrails in place during use.

Choosing the Right Option

• Gangways are wide ramps for crossing trenches and only overcome small height differences.
• For loading at a gradient above 5%, vehicle ramps rated for up to 8% are a better fit; for greater heights, a pair of plant ramps (usable at a steeper gradient, for loading vehicles into vans and trailers) may suit.
