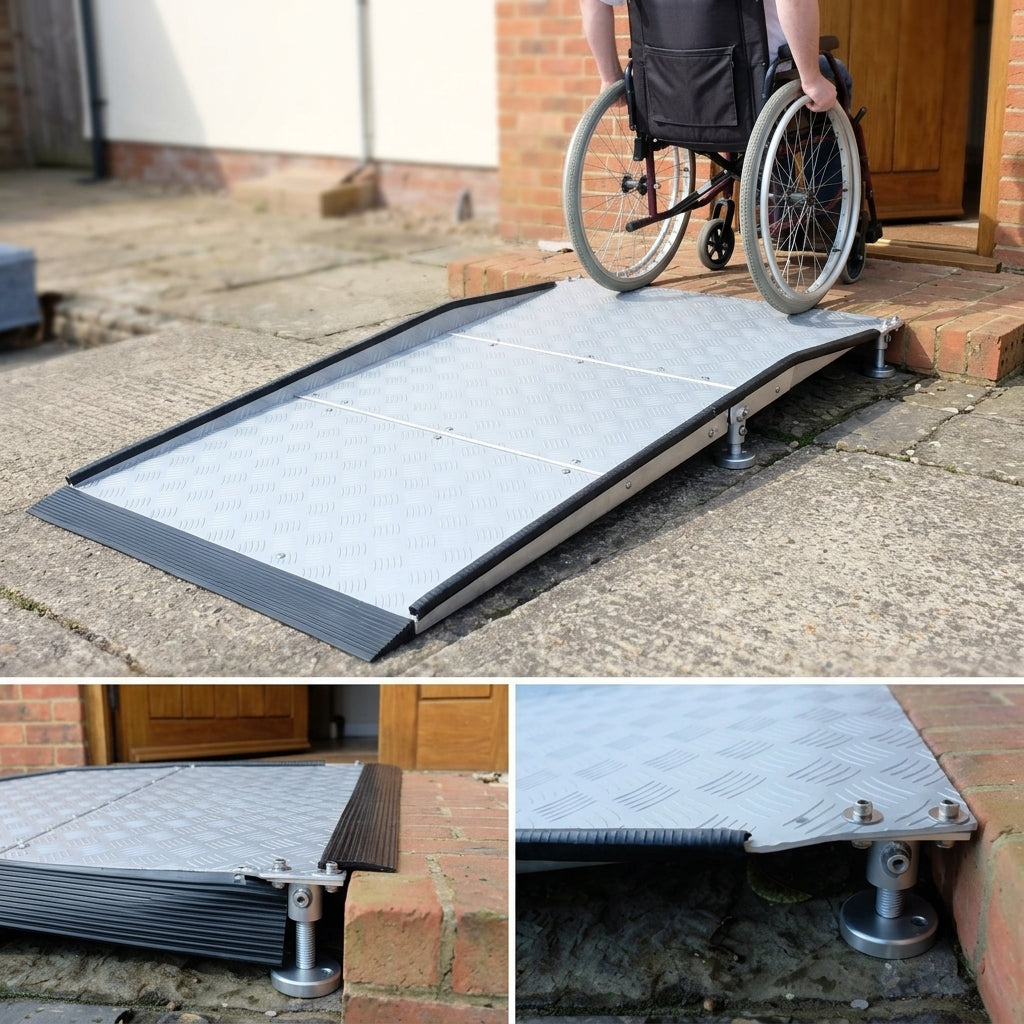

Adjustable Aluminium Threshold Ramp 2ft to 8ft – 790mm Wide, 400kg, With or Without Legs (70mm to 254mm Rise)

An anodised aluminium threshold ramp for safely getting over steps, thresholds and doorways. Buy it without legs to use as a fixed ramp that rests on, or is secured to, the step or threshold, or with the leg kit to set it to your step height between 70mm and 254mm (3" to 10"). With legs, the ramp can sit flush against the step without putting any weight on it. Rated to 400kg, this heavy duty access ramp suits all mobility aids, including wheelchairs and mobility scooters. Available in 2ft, 3ft, 4ft, 6ft and 8ft lengths.

Features

• Quick and easy to install: secure it to the step, or attach the easily positioned telescopic legs and adjust to the height you need.
• Multiple fixing options: fixing holes at the top and bottom of the rest-on connection let you choose where to secure the ramp.
• Optional pre-drilled fixing points in the adjustable legs/feet so the legs can be secured to the ground.
• Ideal for wood, PVC and uPVC thresholds and steps.
• Unique design with a full-width chequered anti-slip surface for exceptional grip and long-term outdoor use.
• Lateral safety edges (63.5mm raised sides) in a contrasting colour.
• Angled base gives a smooth entry from ground level.
• Anodised finish resists stains and corrosion; easy-wash surface for a long life and re-use. Suitable for indoor and outdoor use, and can be left in place outside.

Using the Leg Kit

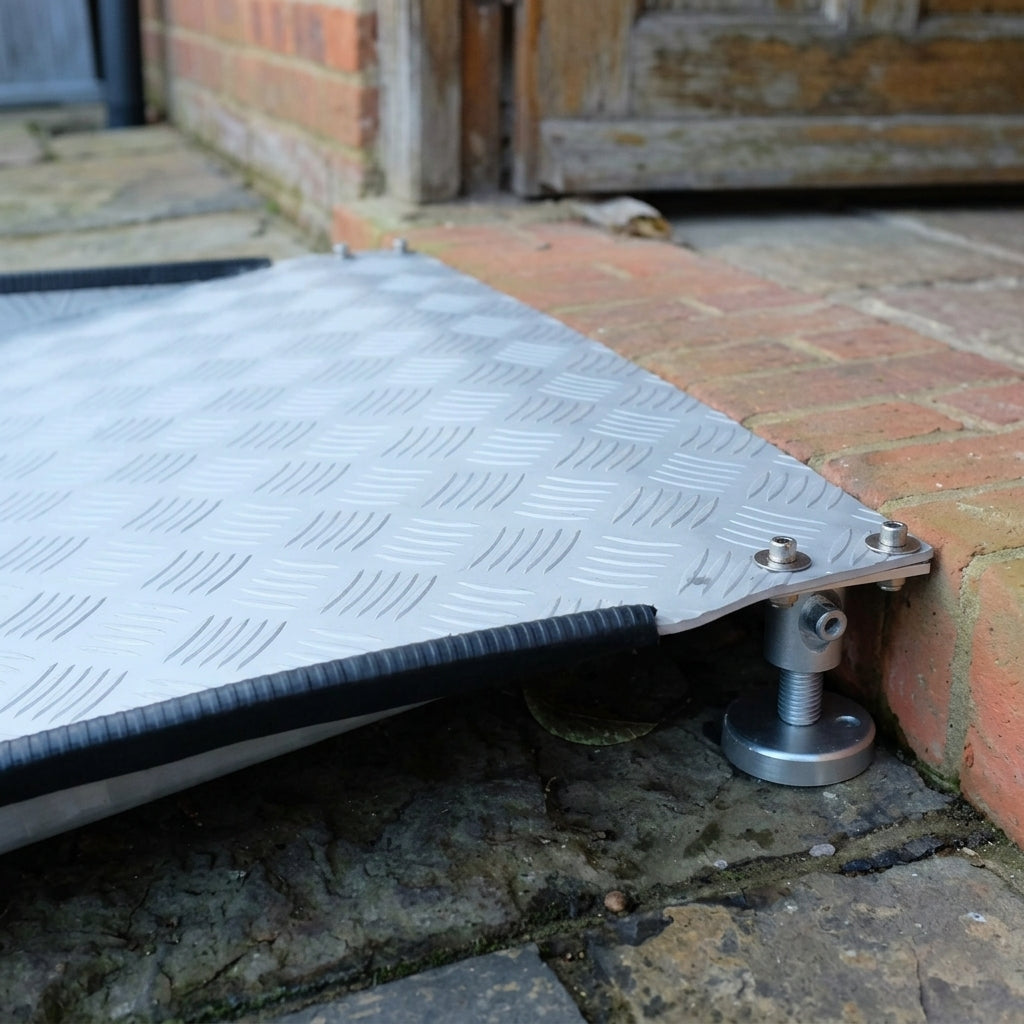

• The legs take the ramp's weight, so no pressure is put on the step or threshold, which is especially helpful for weak steps, uPVC door frames and listed buildings.
• There are four pre-drilled leg positions, at 20mm, 68mm, 115mm and 160mm from the start of the ramp. Setting the legs further back lets the ramp clear ledges on uPVC door frames and meet the doorway.
• The ramp with legs comes with the tools needed (spanners, Allen key and fixings). To secure the legs to the ground you will need an 11mm drill bit (not supplied).
• Designed to assemble in under 15 minutes; two people are recommended for longer lengths because of the weight.

Good to Know

• Width 755mm, total width 790mm; length 610mm to 2438mm; weight 8kg to 34kg depending on length.
• Load height: minimum 100mm to 150mm and maximum 100mm to 254mm, depending on length.
• Because of the safety edges, this ramp does not always work with outward-opening doors.
• To go up and over a threshold, the ramp can be combined with an entry/connection plate.
• For use as a mobility aid only.
• One-year warranty.
• Images are for illustration only; the actual product may vary due to product improvements.
