Hose Bridge End Ramps (Pair) for 4.5" / 114mm Hoses – 364mm L x 406mm W x 141mm H, 8754kg Per Axle

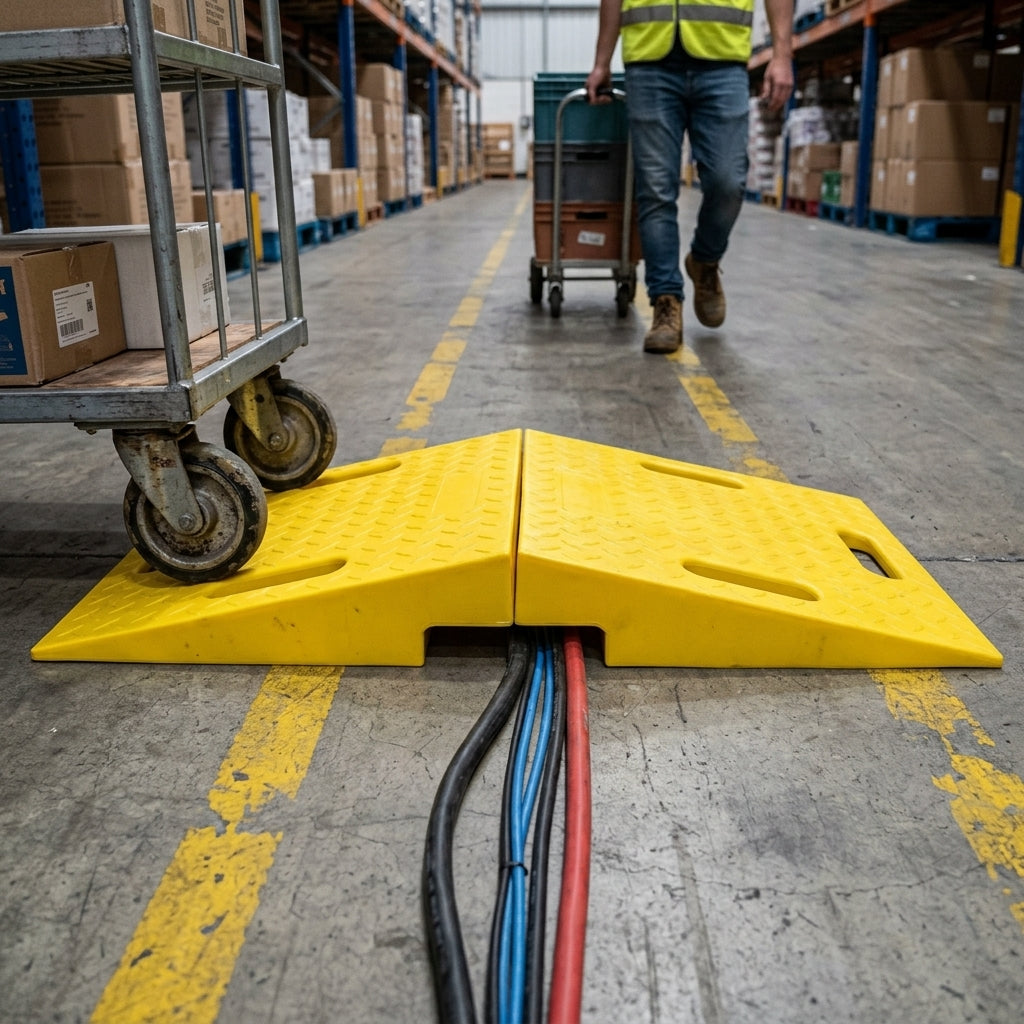

A pair of end ramps for a modular hose bridge system that lets vehicles cross a 4.5" (114mm diameter) cable or hose safely. The system is made up of tunnels, tunnel connectors and ramps, so you can join together as many tunnels as the job needs. Tunnels and tunnel connectors are sold individually, while the ramps come as a pair so both sides of the run can be crossed. Intended for temporary installations only.

Features

• Polyurethane construction that resists abrasion, impact and weather, with a high load-bearing capacity of 8754kg per axle.
• Diamond-plate tread surface for better traction.
• Caution colouring for high visibility.
• Modular interlocking design that is lightweight and easy to transport, set up, take apart and store.
• Built-in hand holds make handling easy and double as attachment points for mounting brackets.
• Easy to fit.
• One-year warranty.

Size

• Each ramp: 364mm L x 406mm W x 141mm H, weighing 13.6kg.
• Channel size: 114mm diameter.

Safety

• Any vehicle crossing the bridge system must have more ground clearance than the height of the bridge.
• For rubber-tyred vehicles only – not for equipment with metal tracks.

Good to Know

• The actual product may vary slightly due to ongoing product improvements.
