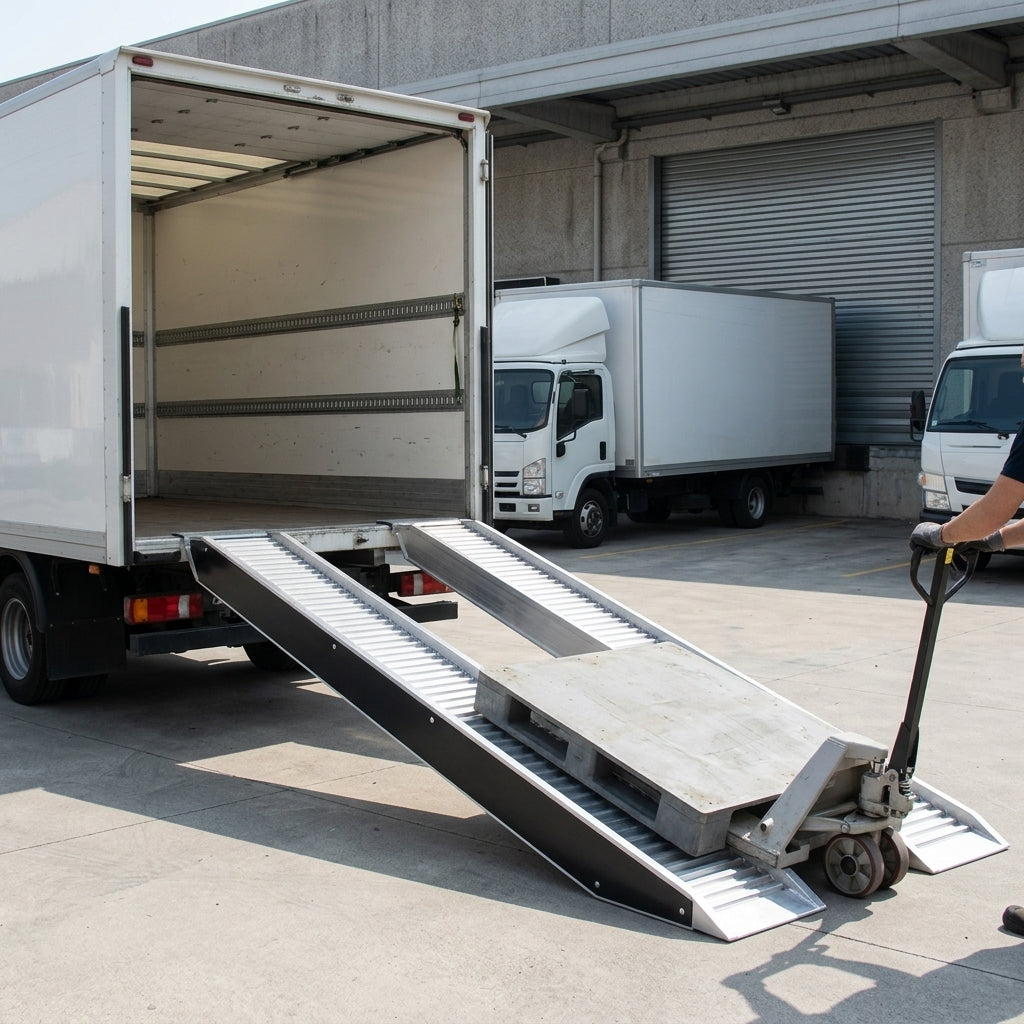

Industrial Aluminium Loading Ramps (Pair) – 4000mm L x 580mm W x 200mm Profile, 10,620kg

A pair of industrial loading ramps in aluminium, 4000mm long and 580mm wide with a 200mm profile, rated to 10,620kg for the pair. They are made for industrial plant and heavy-duty commercial loading. One of the two heaviest-duty ramps in the standard range, they are over half a metre wide.

Features

• Maximum capacity 10,620kg across the pair. Capacity depends on the machine's wheelbase: 7080kg at 1000mm, 8500kg at 1500mm, 10,620kg at 2000mm.
• Tracks or wheels must be at least 300mm wide, up to a maximum of 480mm.
• Suits a load height of 1050mm to 1200mm (measured from the ground to the point where the ramps rest).
• Each ramp weighs 80.5kg (161kg per pair).
• Not suitable for the solid wheels found on road surfacing machines; steel-tracked machinery needs industrial ramps with a suitable surface.
• Fully TÜV certified.

Connection & Fixing

• Supplied as standard with a rest-on connection.
• Four connection options are available. To change from the standard rest-on connection, for example to a hook connection, let us know after you order.

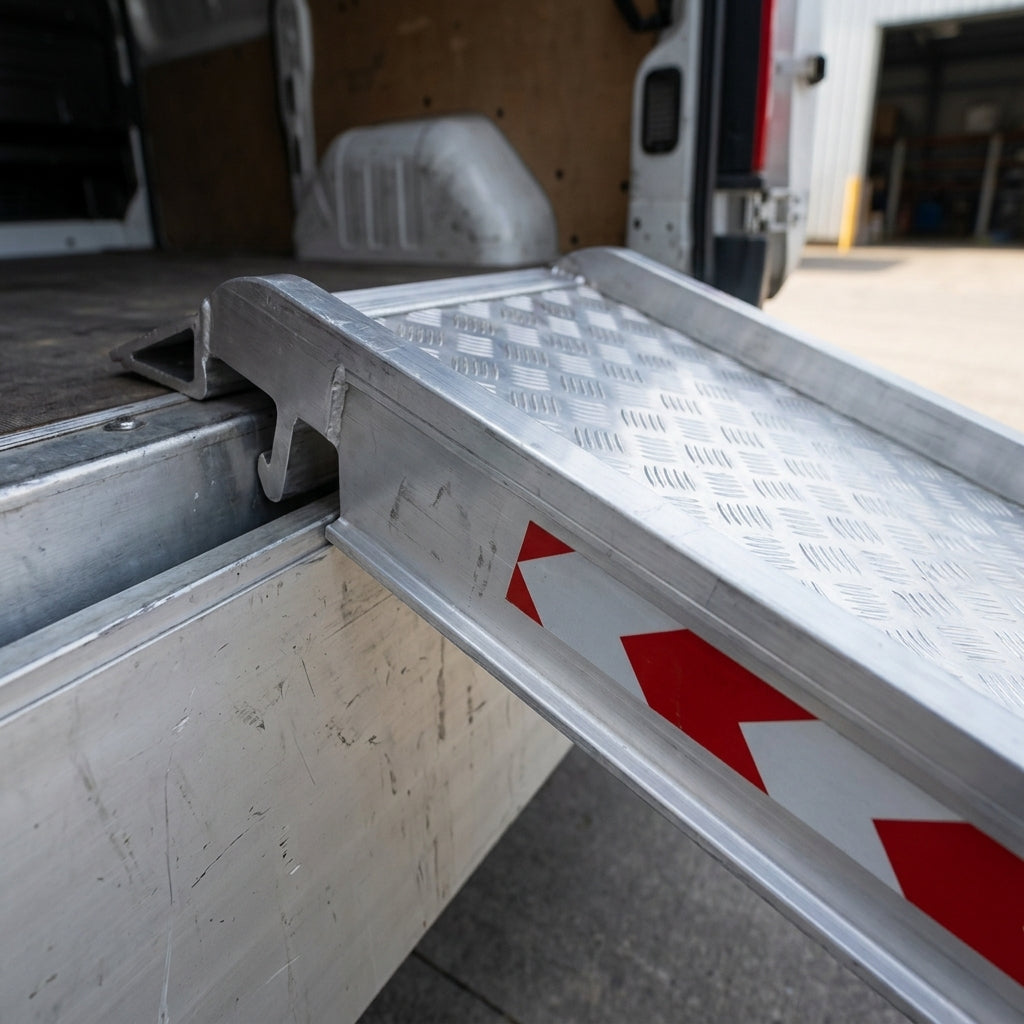

• The curved rest-on lip has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while its own weight and gradient hold it firmly in place.

Build & Customisation

• Built without side edges as standard; versions with edges are also available.
• Customisable: custom load heights and custom-built sizes are available on request.
• Quotes for bespoke ramps are available on request.
• Easy to fit, made in Europe and covered by a two-year warranty.

Good to Know

• Sold as a pair; the price and capacity shown are for both ramps.
• Product images are for illustration only; the actual product may differ slightly due to ongoing improvements.
