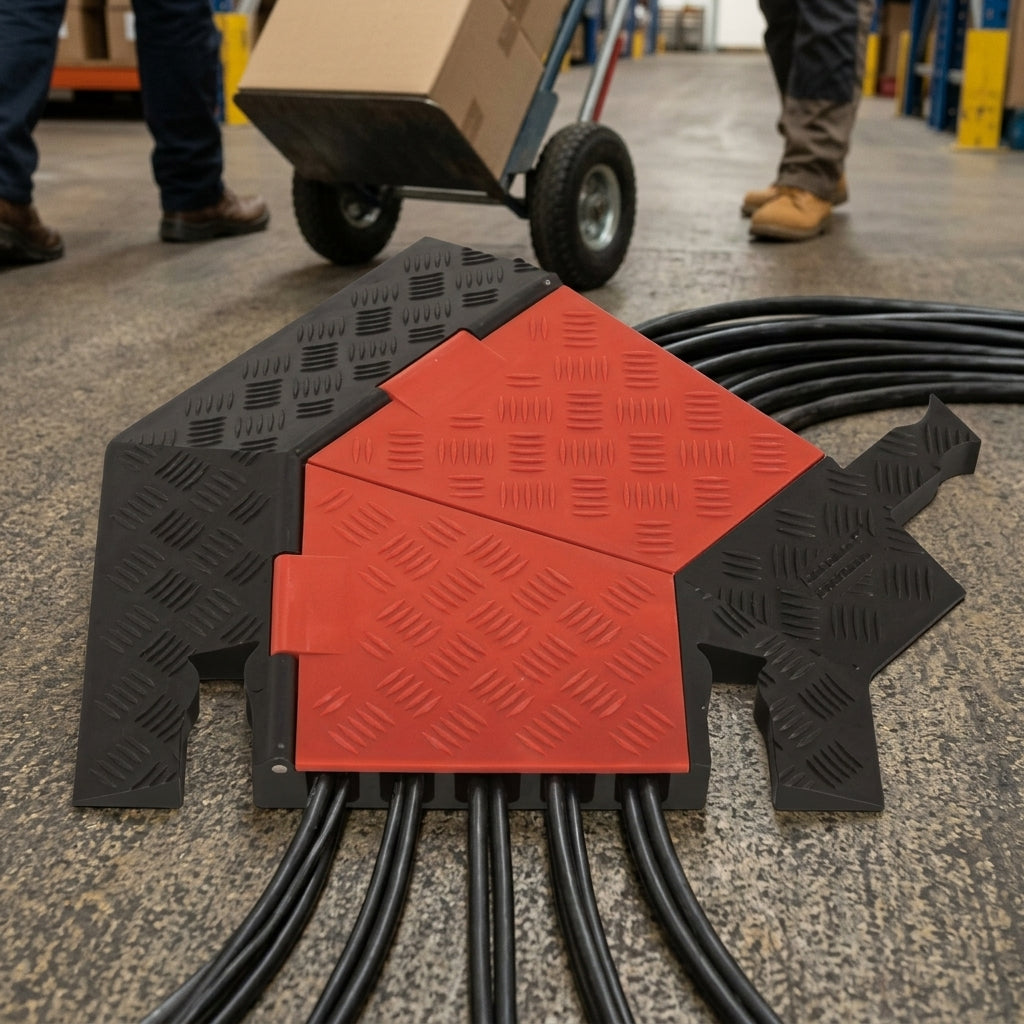

5-Channel Cable Protector 45° Right Turn Section, Orange/Black – for Cables up to 1.325", 622mm L x 502mm W x 48mm H, 9,526kg Per Axle

A 45-degree right-turn section for building a bend into your 5-channel cable protector run. It is just as tough as the standard straight section, with the same hinged lid and all-weather polyurethane construction, and gives vehicles and pedestrians a safe crossing while protecting valuable electrical cables and hose lines from damage. The modular, interlocking design suits amusement parks, entertainment venues, sporting events and most public, commercial, industrial, construction and utility applications.

Features

• Made to fit the 5-channel cable protector (orange/black).
• Creates a 45-degree right turn.
• 5 channels for cables and hoses up to 1.325" outside diameter.
• Joins with dog-bone connectors.

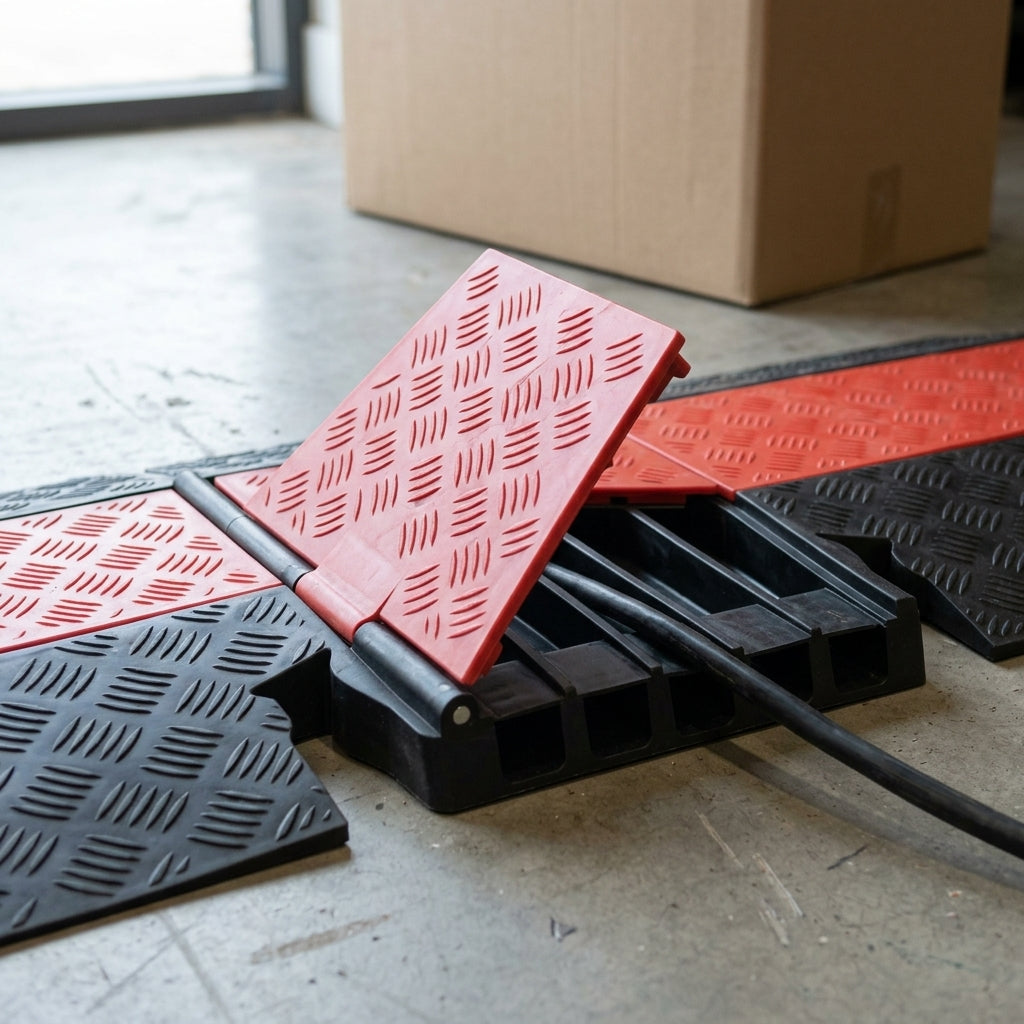

• Reinforced hinged lid makes placing cables easy.
• Patented 5-bar tread surface for maximum traction.
• Combine with a 45-degree left turn section to create a jog in the run.
• Capacity of 9,526kg per axle (4,762kg per tyre).
• Easy to fit and suitable to leave outside.
• One-year warranty.

Size

• Section: 622mm L x 502mm W x 48mm H; weight 5kg.
• Each channel: 34mm W x 33.7mm H.

Good to Know

• Speed limit when crossing: 10mph.
• The actual product may vary slightly due to ongoing product improvements.
