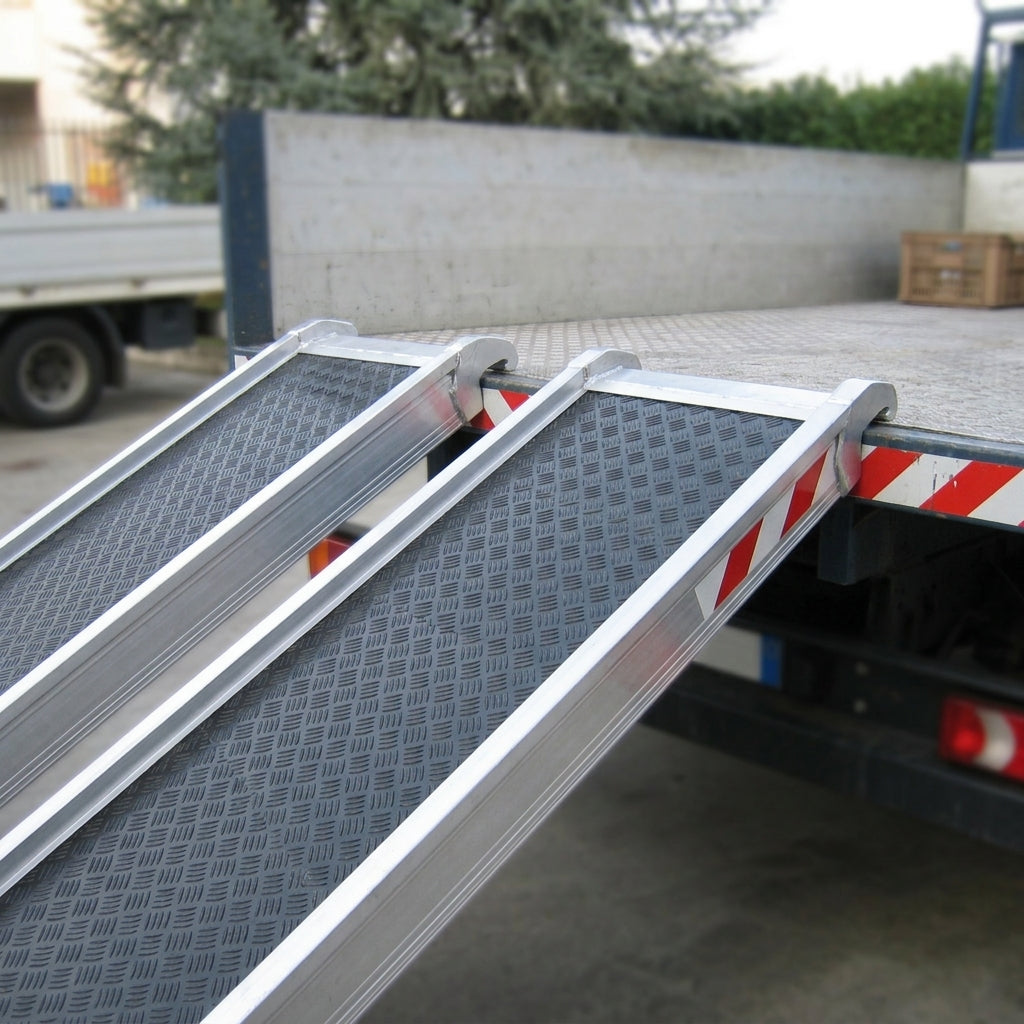

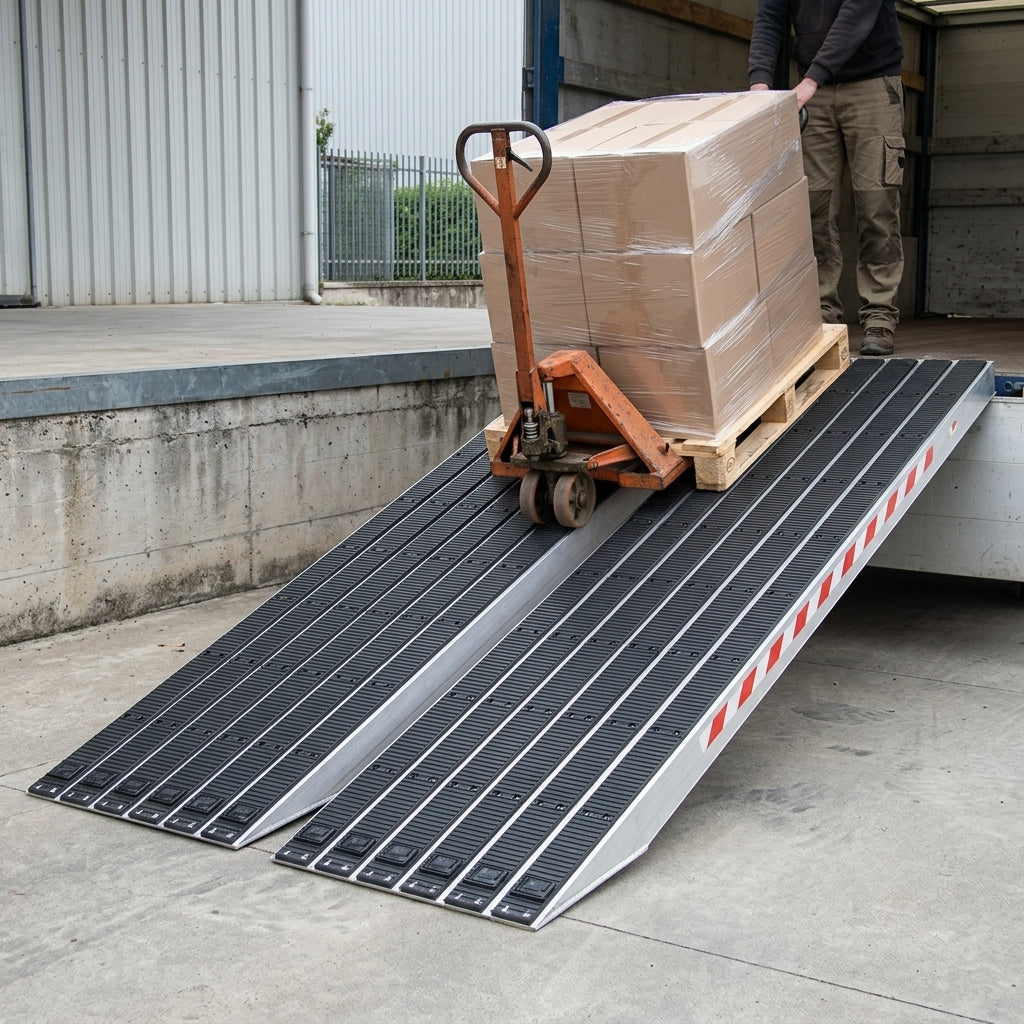

Rubber Coated Ramps for Steel Tracks 5000mm x 720mm – 9,574kg Pair

A pair of our heaviest-duty loading ramps, built to carry steel-tracked vehicles and equipment. Each ramp is 5000mm long x 720mm wide with a 130mm core profile thickness, and the pair carries up to 9,574kg. Ideal as plant ramps, digger ramps and tele-handler ramps, and for heavy-duty industrial and commercial loading. Price and capacity are for the pair.

Features

• Flat top with no external welds.
• Removable rubber coating strips on the running surface.
• Heavy-duty aluminium construction.
• Black finish.
• Designed for steel tracks – not suitable for solid wheels.
• Fully TÜV certified.
• European made, with a two-year warranty.

Connection & Stability

• Supplied as standard with a rest-on connection that simply rests on your vehicle; a carabiner clip with steel chain is included to secure the ramp.
• The ramp's foot, angle and weight also help it stay in place while loading.
• Four connection options are available. If you need an alternative such as a hook connection, just let us know after you place your order.

Choosing Your Ramps

• Suits load heights from 1350mm to 1500mm (the vertical height from the ground to where the ramp rests).
• Maximum capacity of 9,574kg per pair; see the table below for capacity at 1,500mm, 1,750mm and 2,000mm wheelbases.
• The stated capacities apply only to vehicles whose weight is evenly distributed – if yours is not, ask us for advice before ordering.

Good to Know

• This ramp range is available in widths up to 720mm.
• Custom sizes and custom load heights can be built on request. For a quote, have your load height, details of what you are loading and its maximum weight ready – for low-clearance machines, the vehicle's data sheet is also needed.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
