Vehicle Access Ramp with Folding Handrails – 5790mm L x 1000mm W, 998kg Capacity, Aluminium

A portable aluminium vehicle access ramp with folding handrails, 5790mm long with a 1000mm usable width and a load capacity of 998kg. It lets vehicles and pedestrians safely cross height differences caused by trenches, public works and construction sites.

Features

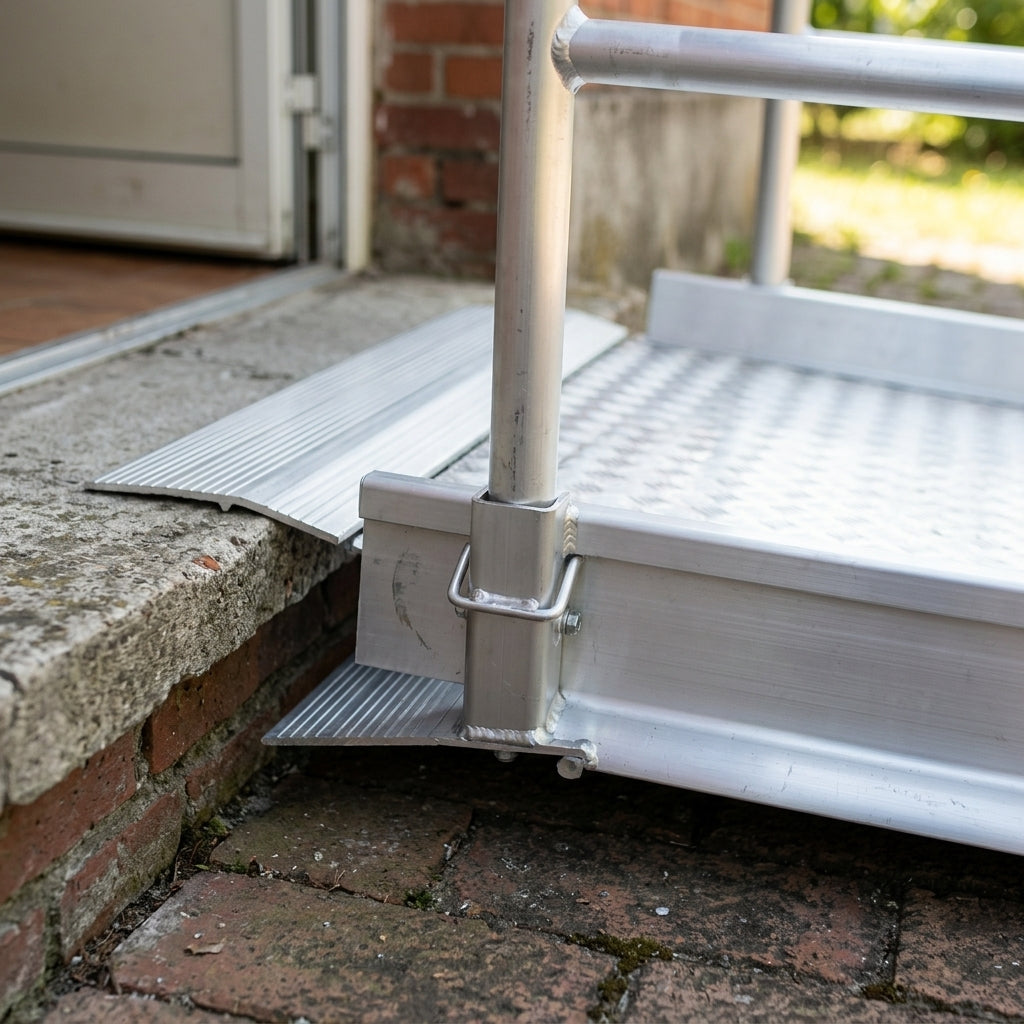

• Rest-on connection: simply place the ramp and start using it. The curved connection has a pre-drilled hole so it can be secured to the step or kerb.
• The angled foot end sits firmly on the ground and suits load heights of up to 460mm. Its own weight and the gradient also help hold the ramp in place.
• R12 slip-resistant surface for vehicles and people on foot.
• Ergonomic double handrails 1m high that fold down for easier transport.
• Suitable for pedestrian access as well as vehicles.
• Customisable, easy to fit, European made and can be left outside.
• Finished in black. Two-year warranty.

Sizes & Capacity

• Length: 5790mm
• Internal (usable) width: 1000mm
• External width: 1120mm
• Height: 1055mm
• Weight: 156kg
• Capacity: 998kg
• Capacity by wheelbase: 998kg at 750mm, 945kg at 1000mm

Safe Use

• Never exceed a maximum gradient of 8%.
• Use the ramp with the handrails in place; fold them only for transport.
• Pictures are for illustration only; the actual product may vary due to product improvements.
