Vehicle Access Ramp with Folding Handrails – 5790mm L x 1250mm W, 998kg Capacity
5790mm L x 1250mm Internal W x 1055mm H
£7,680.00
Skip to product information
Vehicle Access Ramp with Folding Handrails – 5790mm L x 1250mm W, 998kg Capacity
£7,680.00
A portable vehicle access ramp with folding handrails, 5790mm long with a 1250mm usable width and a load capacity of 998kg. It lets vehicles and pedestrians safely cross height differences caused by trenches, public works and construction sites.
Features

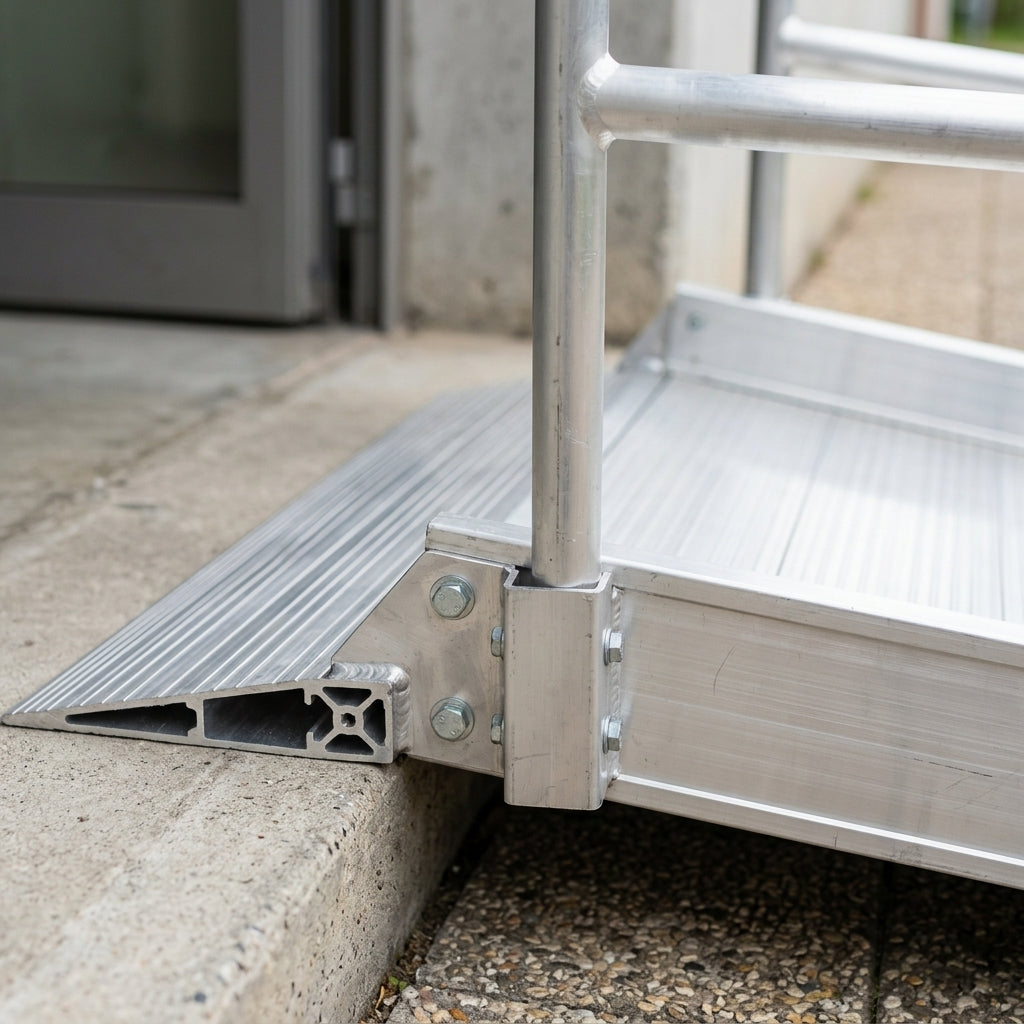

- Rest-on connection: simply place the ramp and start using it. The curved connection has a pre-drilled hole so it can be secured to the step or kerb.
- The angled foot end sits firmly on the ground and suits load heights of up to 460mm. Its own weight and the gradient also help hold the ramp in place.
- R12 slip-resistant surface for vehicles and people on foot.
- Ergonomic double handrails 1m high that fold down for easier transport.
- Suitable for pedestrian access as well as vehicles.
- Customisable, easy to fit, European made and can be left outside.
- Finished in black. Two-year warranty.
Sizes & Capacity
- Length: 5790mm
- Internal (usable) width: 1250mm
- External width: 1370mm
- Height: 1055mm
- Weight: 176kg
- Capacity: 998kg
- Capacity by wheelbase: 998kg at 750mm, 945kg at 1000mm
Safe Use
- Never exceed a maximum gradient of 8%.
- Use the ramp with the handrails in place; fold them only for transport.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Details
| Default Connection | Rest On Connection |
|---|---|
| Capacity (kg) | 998 |
| Height (mm) | 1055 |
| Internal Width (mm) | 1250 |
| Length (mm) | 5790 |
| Max Load Height (mm) | 460 |
| Weight (kg) | 176 |
| Two Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Capacity Wheelbase 750mm (kg) | 998 |
| Capacity Wheelbase 1000mm (kg) | 945 |
| External Width (mm) | 1370 |
| Colour Options | Black |
