785mm Wide Roll-Up Aluminium Loading Ramp 910mm to 4570mm L – 453kg, Up to 1282mm Load Height

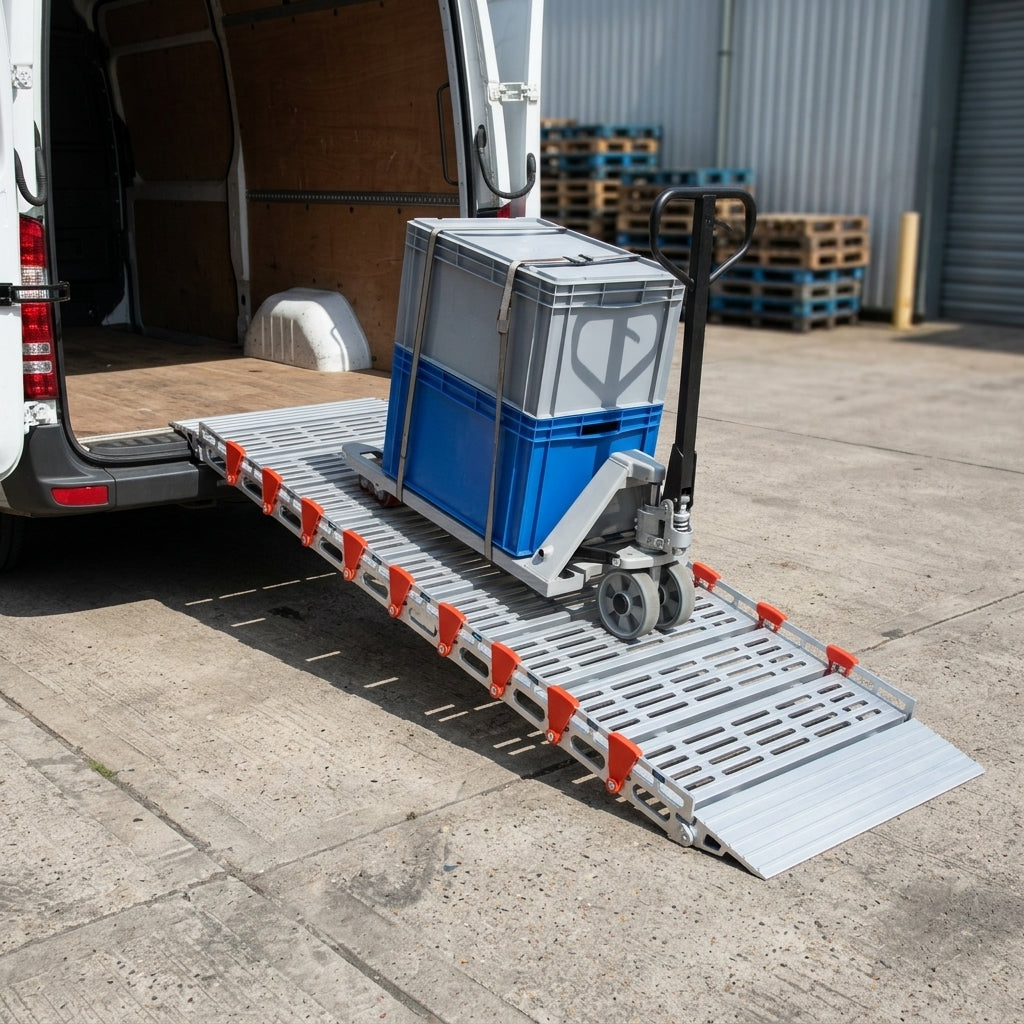

A portable roll-up aluminium loading ramp, 785mm wide, for business or private use. With a 453kg capacity it is ideal for loading equipment, trolleys, motorbikes, ATVs and mobility scooters over steps, kerbs and doorways and into vans and trailers. At 785mm wide it is ideal for doorways and loading into vans, and its design also suits narrow doorways and caravans. It also provides wheelchair access, making it a great choice for businesses that want an accessible workplace where staff can move goods safely.

Features

• Made from high-tensile aluminium – lightweight, flexible and highly portable.
• Rolls up for easy storage and transport; a black safety strap holds it shut while stored.
• 453kg capacity.
• 785mm external width including the orange edges; the aluminium ramp is 760mm wide with a 740mm internal width.
• No installation – simply rest it on the step, kerb or van and start loading.
• Use it as a straight ramp for one or more steps, or as a bridge to go up and over thresholds.
• Full-width R13-rated anti-slip surface for safe loading indoors or outdoors; it can be left outside.
• High-visibility safety edges, 30mm high, help stop items going off the sides and reduce trip hazards; cut-outs in the edges act as carry handles.

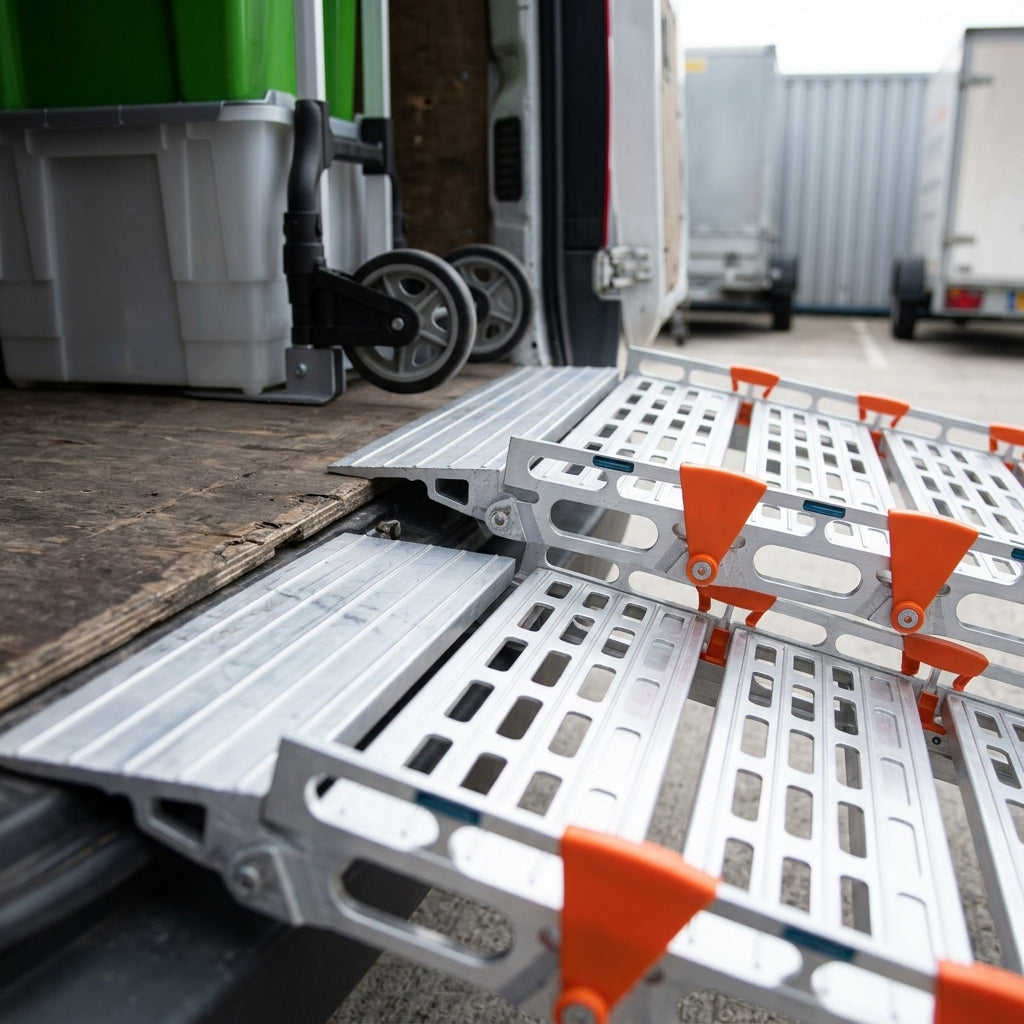

• Extended rest-on connection grips steps, vans, kerbs and doorways; the curved connection and gently sloped base give a smooth transition from the ground onto the ramp.
• Gaps within each tread are 1.1cm and gaps between treads are 2.2cm.
• CE marked. Five-year warranty. Customisable.

Modular Length

• Available from 910mm (3ft) to 4570mm, and longer lengths can be made.
• Add or remove sections with the supplied Allen key and spanner – usually in under 15 minutes – to shorten it for lower steps, lengthen it for a gentler gradient, or split it in half to make it easier to carry.
• Adjustable support legs are included with lengths of 2.4m (8ft) and over for extra stability. They are supplied to suit your load height and are fitted by the customer on arrival.

Load Height

• Suitable for load heights up to 1282mm.
• Its rest-on connection is longer than on most ramps (about 28cm), so the maximum recommended load height is slightly lower than for other loading ramps.
• Use it at any height up to the recommended maximum to get the gradient you need for safe loading.

Fixing & Accessories

• Use it as a portable ramp, or fix it in place – indoors, outdoors or to your van – with the fixing plate and screws.
• Single or double handrails can be added for people using walking aids or for extra safety in public areas.

Not Suitable For

• Solid wheels, including those on flight cases and pallet trucks.
• Rubber wheels under 20cm in diameter.
