Vehicle Access Ramp with Folding Handrails – 990mm L x 1000mm W, 4500kg Capacity
990mm L x 1000mm Internal W x 1055mm H
£2,880.00
Skip to product information
Vehicle Access Ramp with Folding Handrails – 990mm L x 1000mm W, 4500kg Capacity
£2,880.00

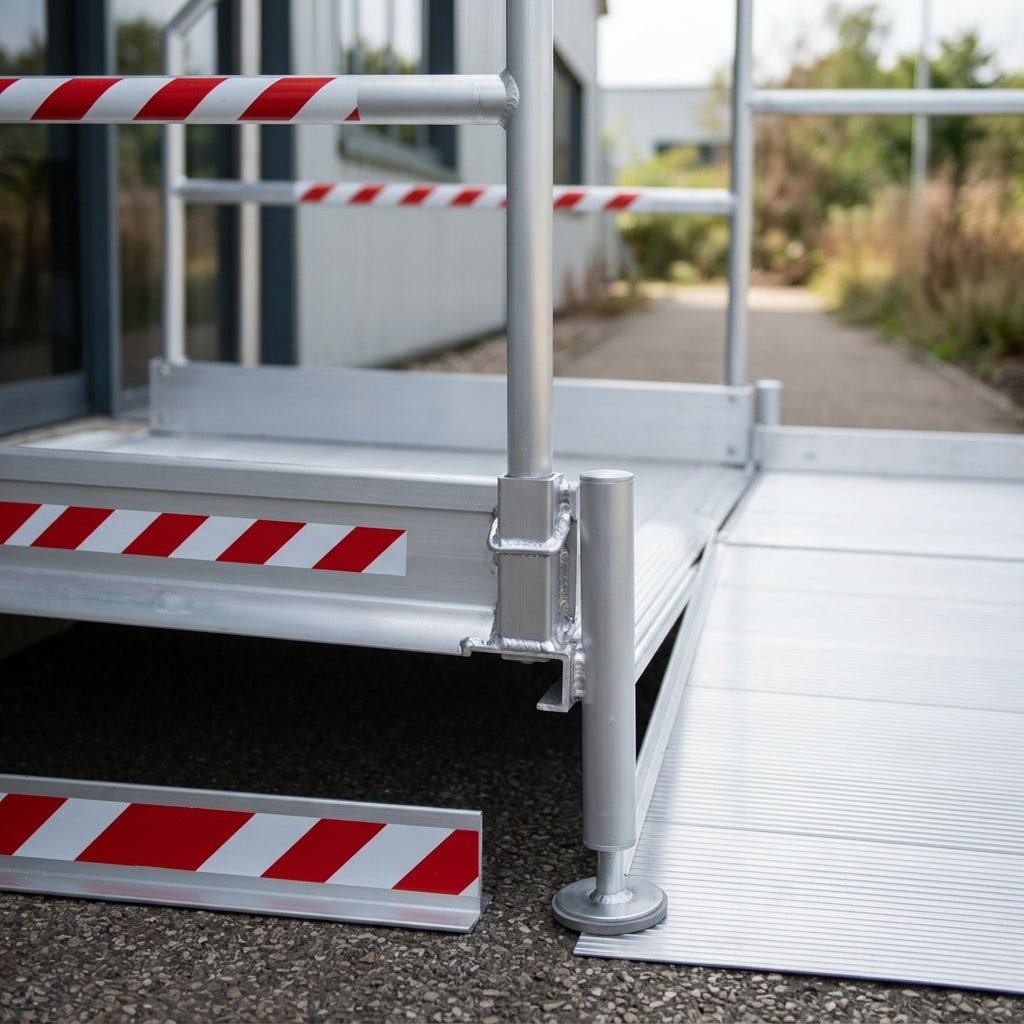

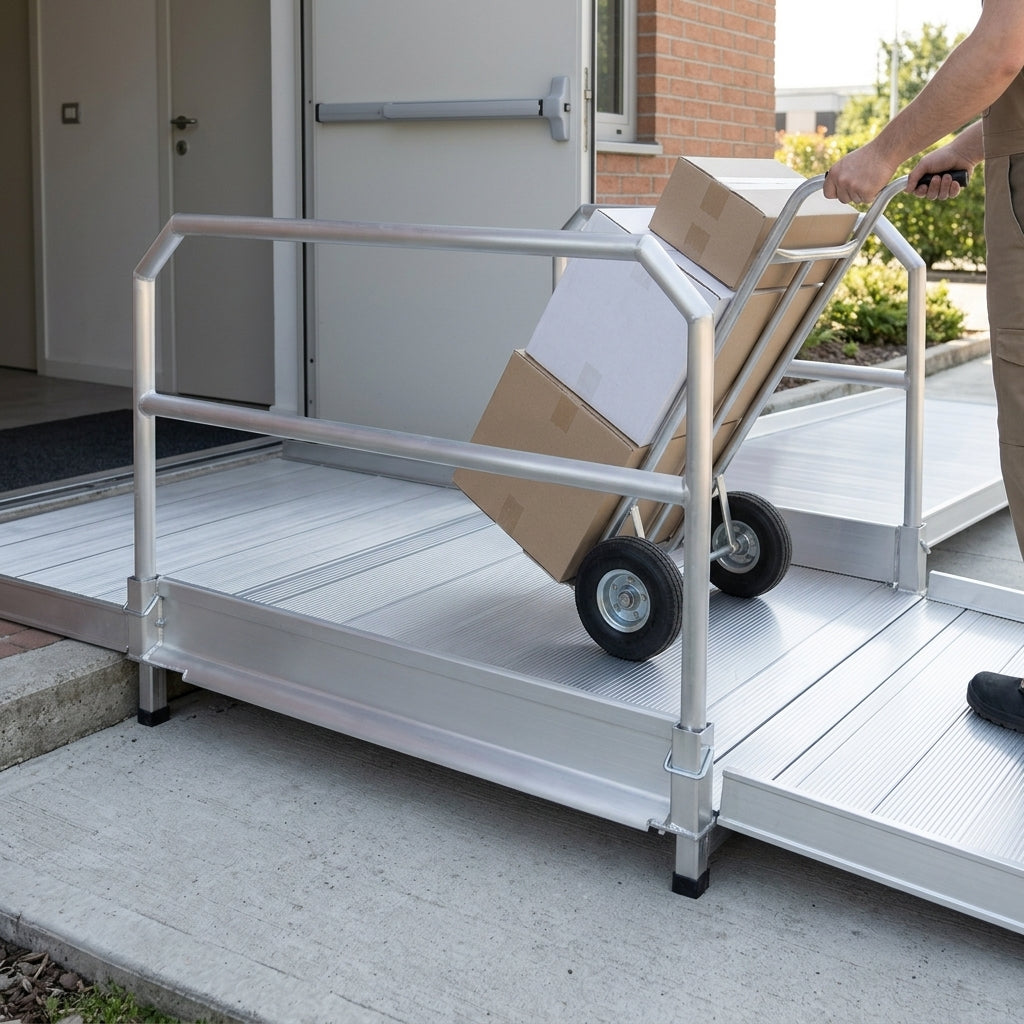

A portable vehicle access ramp with folding handrails, 990mm long with a 1000mm usable width and a load capacity of 4500kg. It lets vehicles and pedestrians safely cross height differences caused by trenches, public works and construction sites.
Features
- Rest-on connection: simply place the ramp and start using it. The curved connection has a pre-drilled hole so it can be secured to the step or kerb.
- The angled foot end sits firmly on the ground and suits load heights of up to 80mm. Its own weight and the gradient also help hold the ramp in place.
- R12 slip-resistant surface for vehicles and people on foot.
- Ergonomic double handrails 1m high that fold down for easier transport.
- Suitable for pedestrian access as well as vehicles.
- Customisable, easy to fit, European made and can be left outside.
- Finished in black. Two-year warranty.
Sizes & Capacity
- Length: 990mm
- Internal (usable) width: 1000mm
- External width: 1120mm
- Height: 1055mm
- Weight: 34kg
- Capacity: 4500kg
- Capacity by wheelbase: 4500kg at 750mm, 3000kg at 1000mm
Safe Use
- Never exceed a maximum gradient of 8%.
- Use the ramp with the handrails in place; fold them only for transport.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Details
| Default Connection | Rest On Connection |
|---|---|
| Capacity (kg) | 4500 |
| Height (mm) | 1055 |
| Internal Width (mm) | 1000 |
| Length (mm) | 990 |
| Max Load Height (mm) | 80 |
| Weight (kg) | 34 |
| Two Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Capacity Wheelbase 750mm (kg) | 4500 |
| Capacity Wheelbase 1000mm (kg) | 3000 |
| External Width (mm) | 1120 |
| Colour Options | Black |
