Heavy Duty Industrial 3-Channel Cable Protector, Orange/Yellow – for Cables up to 2.25", 914.4mm L x 508mm W x 77.5mm H, 12,892kg Per Axle

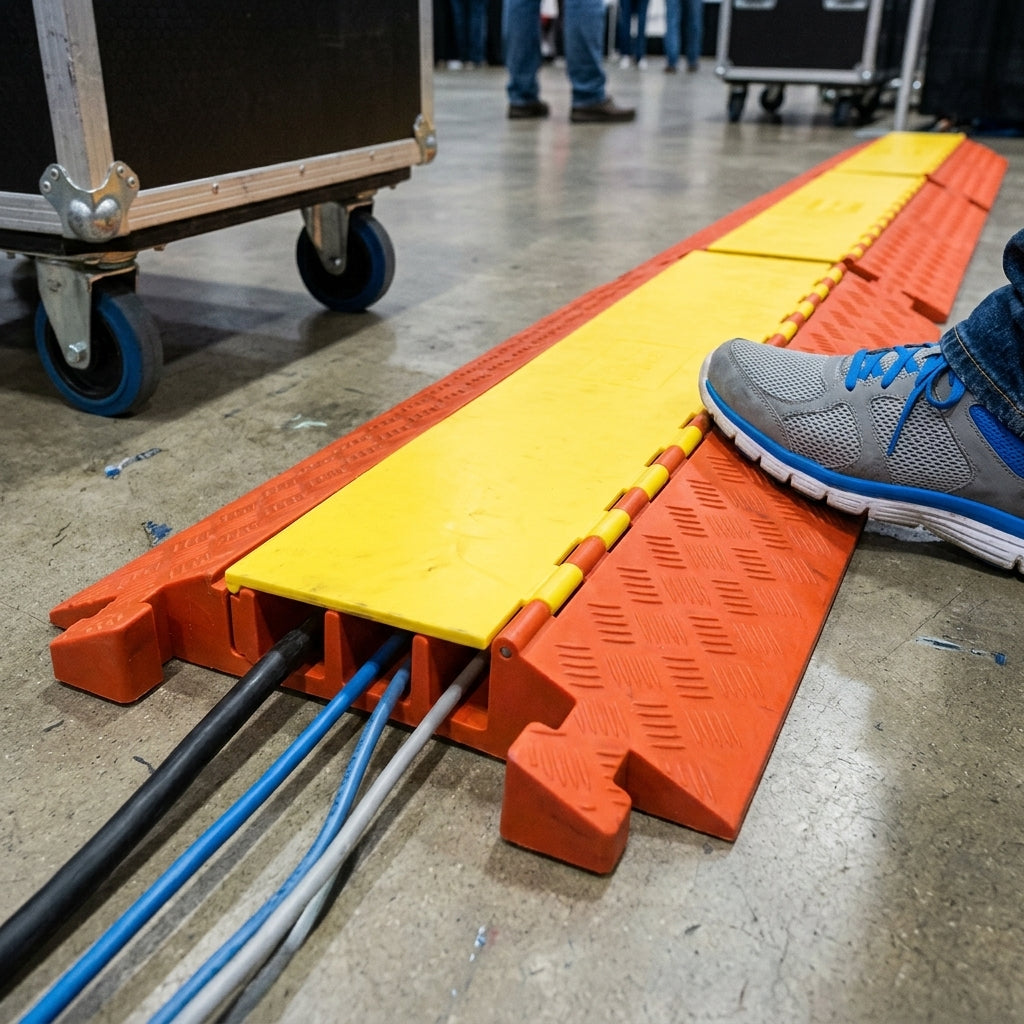

A heavy-duty 3-channel cable protector with a hinged lid that gives vehicles and pedestrians a safe crossing while protecting valuable electrical cables and hose lines from damage in extreme weather and tough working conditions. The modular, interlocking design takes cables up to 2.25" tall and 2.25" wide, and is built for oil and gas sites, mining, military and other industrial settings with heavy trucks and forklifts. Rated to 12,892kg per axle.

Features

• 3 channels for cables and hoses up to 2.25" outside diameter.
• Patented T-connectors let you extend the run to any length.

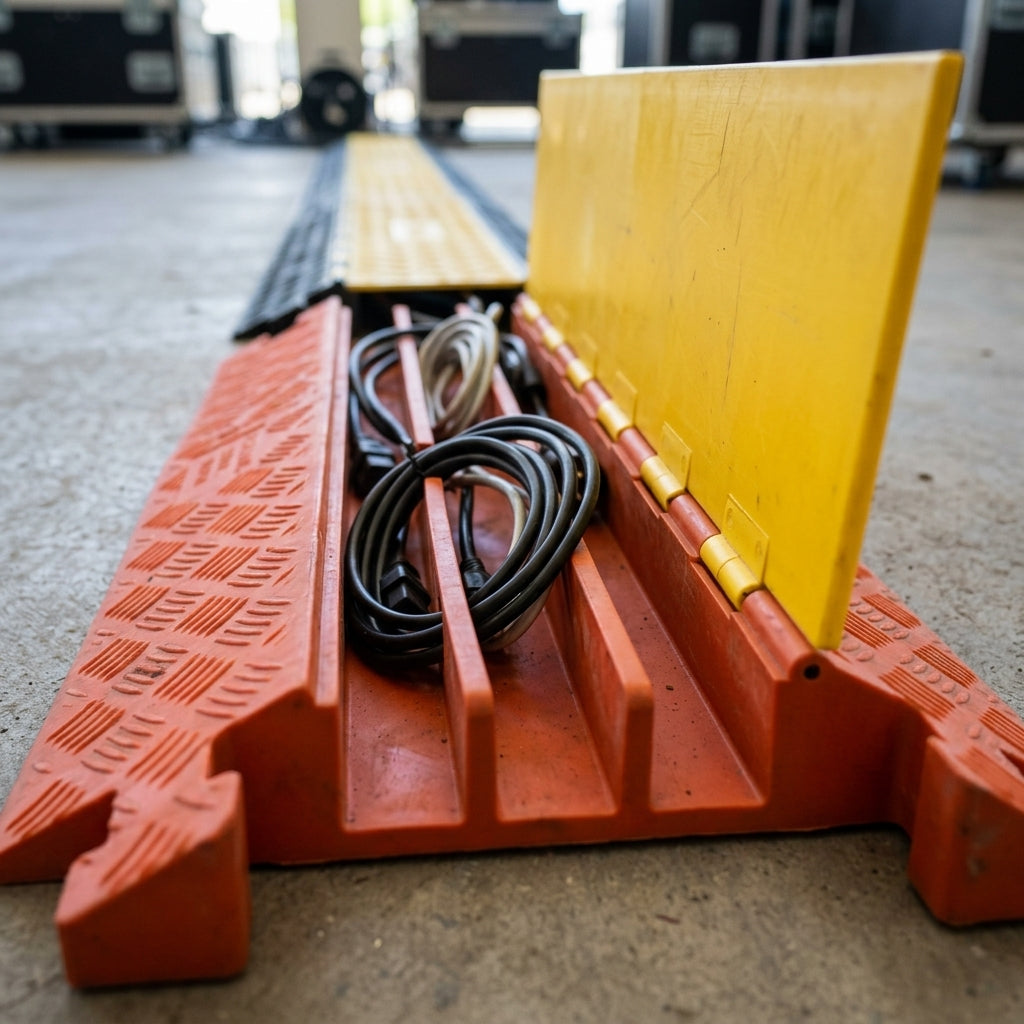

• Reinforced hinged lid makes placing cables easy.
• All-weather polyurethane construction, suitable to leave outside.
• Patented 5-bar tread surface for maximum traction.
• Easy to transport, set up, take apart and store.
• Capacity of 12,892kg per axle (6,446kg per tyre).
• Easy to fit.
• One-year warranty.

Size

• Each section: 914.4mm L x 508mm W x 77.5mm H; weight 12.7kg.
• Each channel: 57.2mm W x 57.2mm H.

Good to Know

• Speed limit when crossing: 5mph.
• Matching orange end caps (male & female pair) are available.
• The actual product may vary slightly due to ongoing product improvements.
