Heavy Duty Aluminium Plant Loading Ramps (Pair) – 2500mm L x 510mm W, 10,000kg Capacity

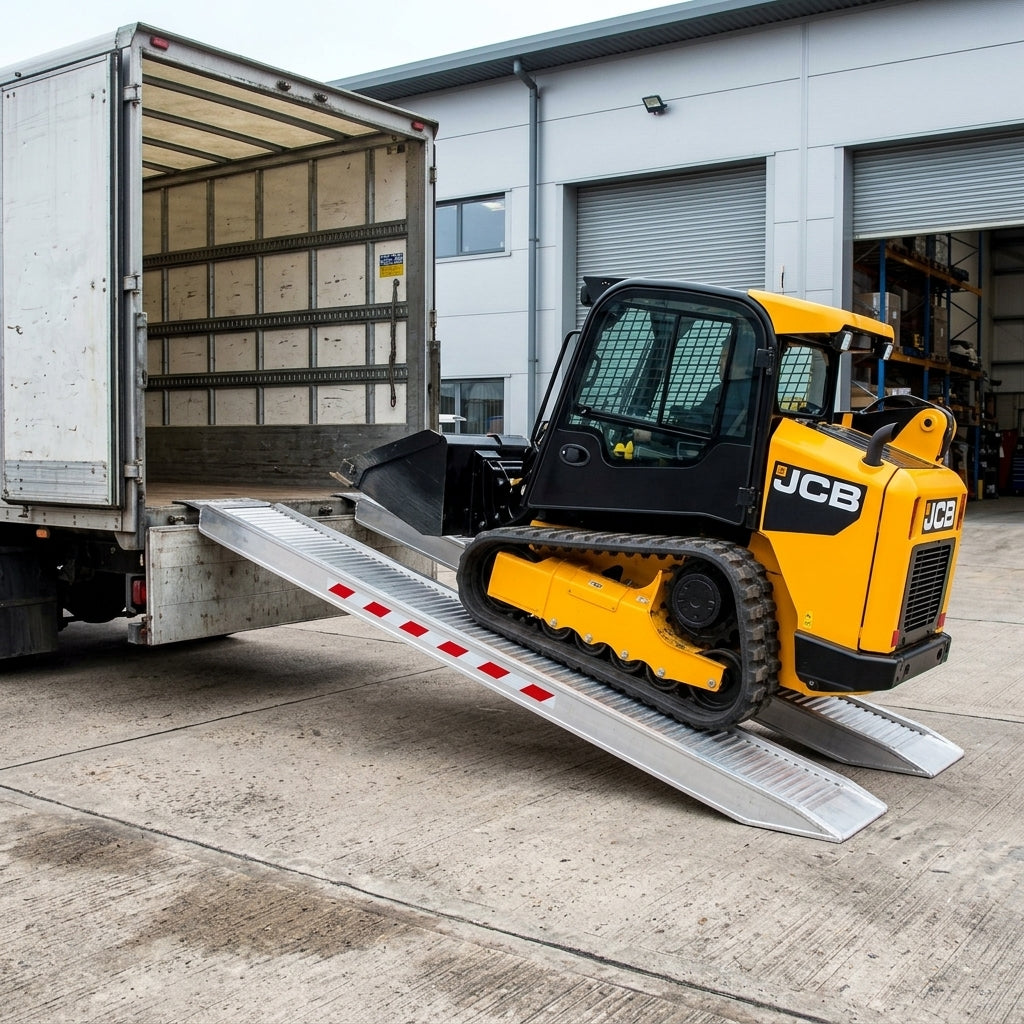

A pair of heavy duty aluminium loading ramps, each 2500mm long and 510mm wide with a 170mm profile thickness. With a combined capacity of 10,000kg, they are ideal for plant machinery, diggers and tele-handlers. The price and capacity shown are for the pair. At over half a metre wide, they give plenty of room for larger tracks and wheels.

Features

• Supplied without side edges as standard; versions with edges are also available.
• Four connection options are available; the standard fitting is a rest-on connection.

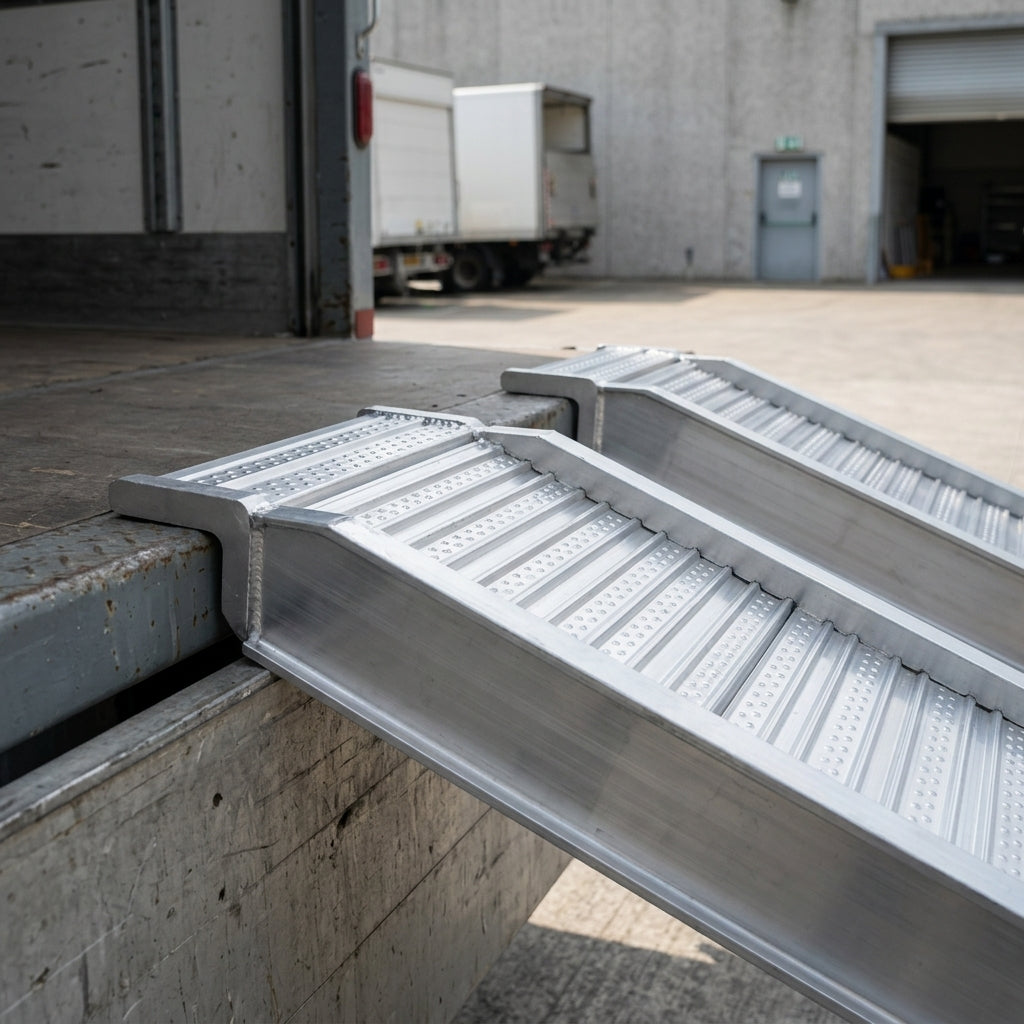

• The curved rest-on connection has a pre-drilled hole so the ramps can be secured to the vehicle, and the angled foot keeps the base on the ground. The ramps’ own weight and gradient also help hold them firmly in place.
• Each ramp weighs 38kg (76kg per pair).

Sizing and Loading

• Load height: 600mm to 750mm.
• Track/wheel width: minimum 200mm, maximum 430mm.
• Capacity by machine wheelbase: 9,600kg at 1000mm, 10,000kg at 1500mm, 10,000kg at 2000mm.
• The stated maximum capacities only apply when the vehicle’s weight is evenly distributed.

Good to Know

• Not suitable for machines with solid wheels, such as road surfacing machines; steel-tracked machinery needs a dedicated industrial ramp.
• Fully TÜV certified. Made in Europe. Easy to fit.
• Two-year warranty.
• Custom load heights and custom sizes are available, and quotes for bespoke ramps can be supplied on request.
• If you need a different connection type, such as a hook connection, this can be arranged after purchase.
• Photos are for illustration only; the actual product may vary slightly due to product improvements.
