Low Profile 3-Channel Cable Protector with ADA/DDA Accessibility Ramps, Orange/Black – 914.4mm L x 769.8mm W x 31.8mm H, 24,492kg Per Axle

A very compact, top-loading low-profile cable protector that safely carries up to 3 cables while pedestrians and vehicles pass over them. Despite its low height it keeps a high load-bearing capacity of up to 24,492kg per axle, enough for heavy equipment, and takes cables up to 0.75" tall and 1.25" wide. Its built-in accessibility ramps make it easy for wheelchairs, mobility scooters and pushchairs to cross, and it is widely used at events, in business parks and in commercial areas.

Features

• Protects cables and hoses up to 0.75" outside diameter.
• 3 channels, each 32.5mm W x 19mm H, ideal for cables and wires.
• Built-in ADA/DDA accessibility ramps with a smooth gradient and smooth anti-slip surface, so wheelchairs and low-clearance vehicles can pass over safely.

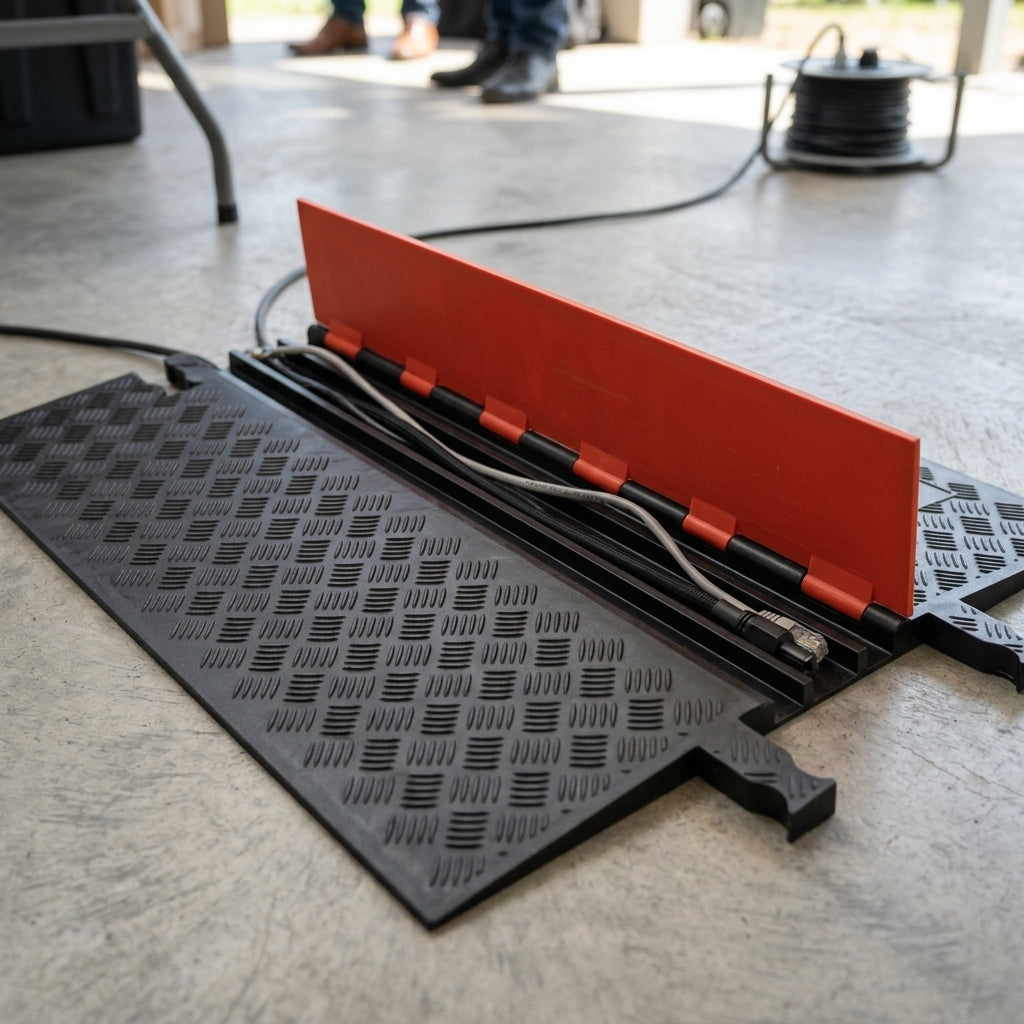

• Reinforced, high-visibility hinged lid – just open it and lay in up to 3 cables.
• Dog-bone connectors join multiple units securely to cover the length you need.
• Patented 5-bar tread surface for optimum traction.
• Modular interlocking design for easy setup.
• Capacity of 24,492kg per axle (12,246kg per tyre).
• Easy to fit. One-year warranty.

Built for Accessibility

• The low-profile design lets wheelchairs, mobility scooters and pedestrians cross cables safely while reducing trip hazards.
• Thanks to its low height and high capacity, it also suits low-clearance cars and vehicles.
• The high-visibility design alerts pedestrians and road users, encouraging vehicles to slow down.

Durable & Reusable

• All-weather construction for protecting electrical cables indoors and outdoors, including at festivals; suitable to leave outside.
• Long-lasting design that can be reused at different sites.
• At 10.6kg, one person can lift and move it into position.
• Made in the USA.

Size

• Each unit: 914.4mm L x 769.8mm W x 31.8mm H; weight 10.61kg.

Good to Know

• Speed limit when crossing: 10mph.
• ADA means the protector is compliant with the Americans with Disabilities Act.
• There is no specific law on accessible cable protectors, but the Equality Act 2010 requires reasonable adjustments to make areas accessible for disabled people. Wheelchair-friendly cable ramps help keep events, pavements, buildings and workplaces accessible.
• Additional accessories are available, including pieces that let cables take turns, corner sections and end caps.
• The actual product may vary slightly due to ongoing product improvements.
