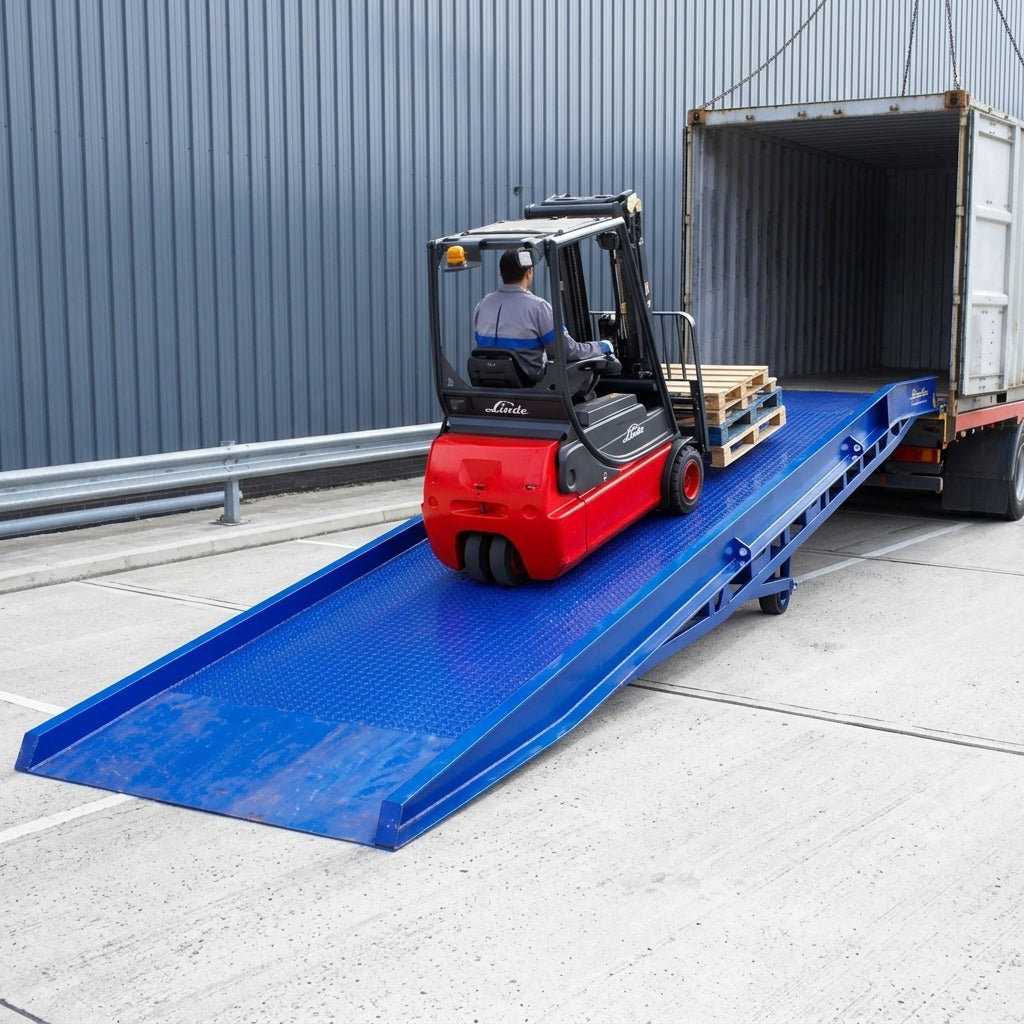

Extra-Wide Hydraulic Mobile Container Yard Ramp 11260mm x 2460mm – 10,000kg, With or Without Handrails

A 10-tonne, CE-marked extra-wide mobile yard ramp that meets the latest European standards and directives. The extra width makes it easier to load wider machinery, and it lets you load and unload shipping containers quickly and safely at sites without a loading bay. Made from durable steel and rated to 10,000kg. Available with or without handrails.

Features

• Easy to move: supplied on wheels with a fixed swivel clamp and fork mount, so a forklift can manoeuvre it into position.
• Hydraulic assist lets you quickly adjust the load height to the container, anywhere from 800mm to 1650mm.

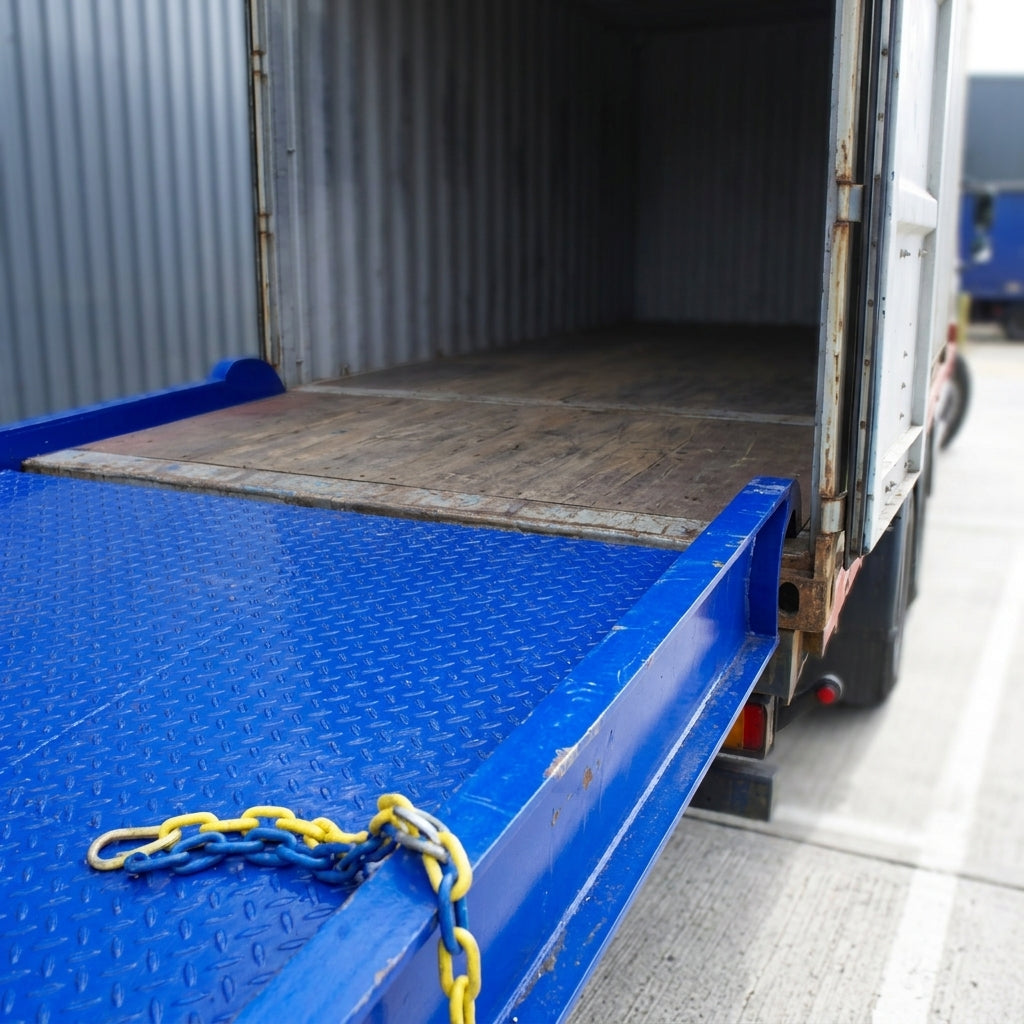

• Heavy-duty steel safety chains and clamps secure the ramp to the container during loading, and the extended 2260mm x 300mm rest-on lip keeps it firmly in place.
• Smooth, gradual slope of roughly 10% (it varies with the height of the lorry), designed with low-clearance forklifts and pallet trucks in mind so they do not ground out. This suits most forklifts.
• High-traction, UK-produced anti-slip mesh surface keeps grip in all weather, and integrated safety edges stop vehicles veering off the side.

Build Quality

• Side profiles made from a single piece of steel for top performance, durability and safety, on a reinforced steel undercarriage.
• Fully certified and tested, and CE marked. European made.
• Can be left outside. Easy to fit. Black finish.
• One-year warranty.

Sizes

• Total length 11260mm: 8440mm inclined section plus a 2520mm level section.
• Total width 2460mm, with a 2260mm usable width.
• Weighs 4050kg.

Good to Know

• Wheel chocks are available at extra cost for added security while the ramp is parked and not in use.
• Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
• On-site training on using the ramp is available at extra cost.
• Pictures are for illustration only; the actual product may vary due to product improvements.
