Heavy Duty Aluminium Van Ramp 1800mm to 2700mm – 750mm or 975mm Wide, Up to 900kg Capacity

A single-piece, solid aluminium van loading ramp with a capacity of up to 900kg. Built for commercial use, it is a dependable, portable way to load equipment, goods, flight cases and trolleys safely in and out of vans, ideal for professionals in events, logistics and removals who load and unload regularly. Choose from two widths, 750mm or 975mm, and four lengths: 1800mm (6ft), 2100mm (7ft), 2400mm (8ft) and 2700mm (8.8ft).

Features

• Rests in place on the vehicle: no van or vehicle modification needed. Quick to set up, just rest it on the van and start loading.
• Made from lightweight aluminium; easy to lift and move when needed.
• Full-width anti-slip surface for extra grip during loading.
• Safety edges on both sides stop items accidentally wheeling off.
• Smooth gradient makes loading easy, whether into vans or over steps.

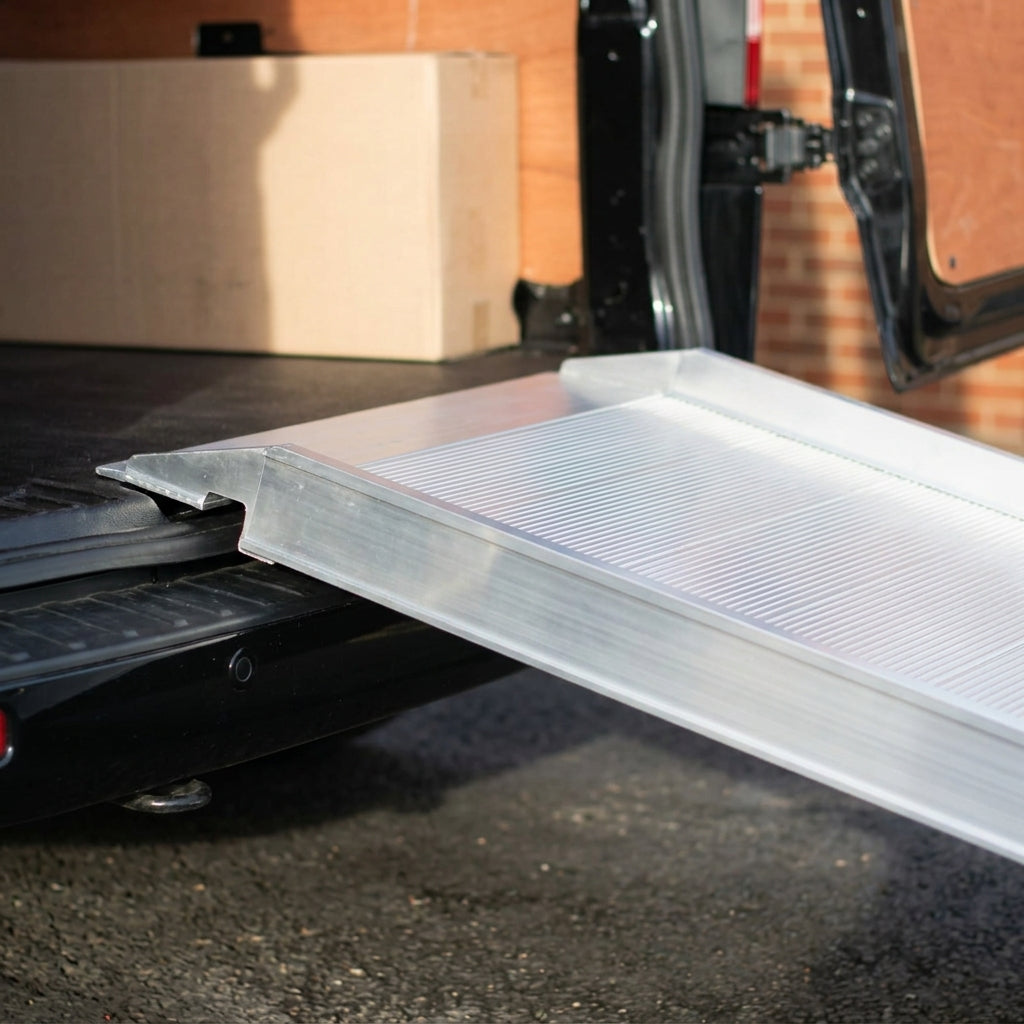

• The 21cm curved rest-on connection and angled foot keep the ramp secure in use; the ramp's own weight and angle also help hold it in place.
• Non-folding design that lies flat for easy storage in the van.
• Low maintenance: simply wipe away debris when needed.

Choosing Your Ramp

• Measure the vertical distance from the ground to where the ramp will rest; this is your load height. Maximum load height ranges from 540mm to 815mm depending on length.
• Capacity ranges from 680kg to 900kg depending on size; weight per ramp is 22.1kg to 37.8kg.
• Usable width is 700mm on the 750mm model and 920mm on the 975mm model.
• The entry onto this ramp is slightly steeper than on the premium version. For a smoother entry (for example for low-clearance items), higher capacities or longer lengths, see our 1000kg capacity heavy duty van ramp.

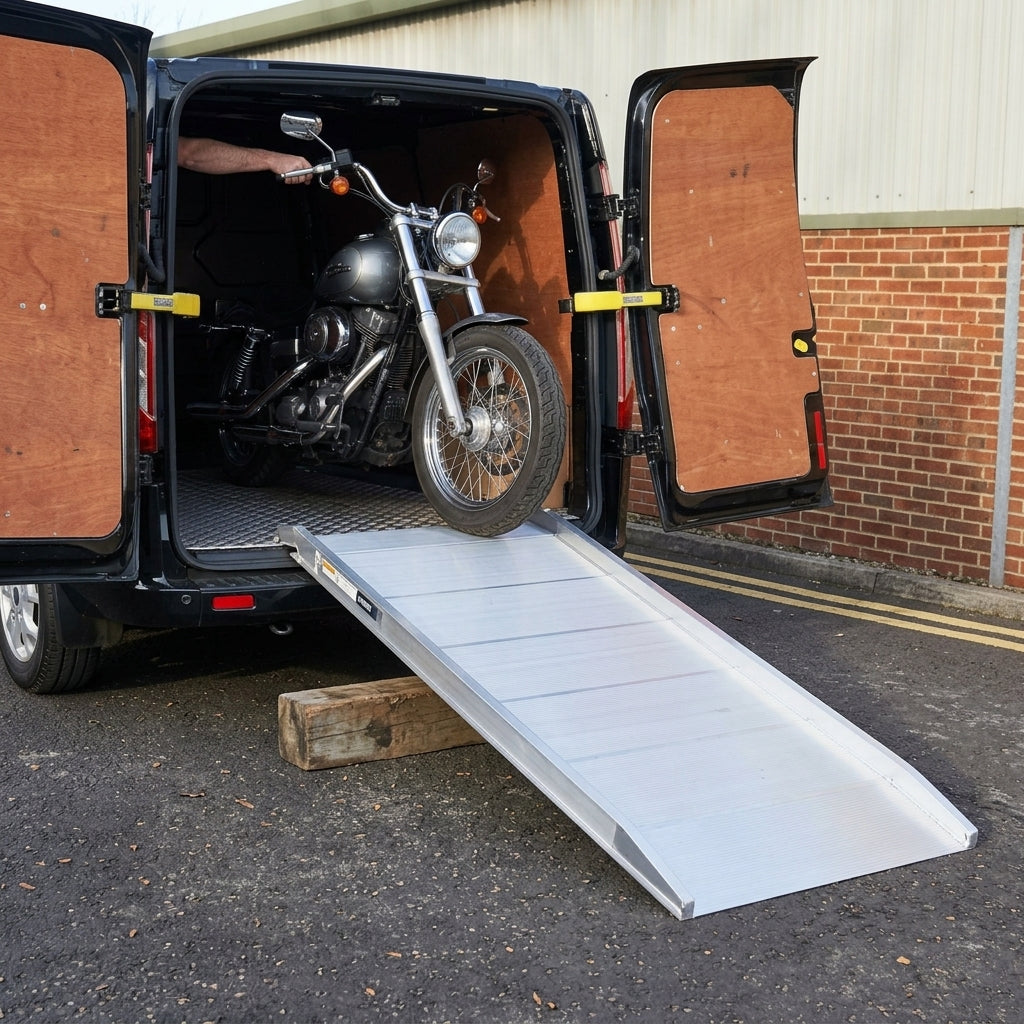

• It can be used for motorbikes, quad bikes and ride-on mowers, although lighter, curved folding loading ramps are generally better suited to these as they give improved clearance.

Good to Know

• Easy to fit. One-year warranty.
• Images are for illustration only; the actual product may vary due to product improvements.
