3-Channel Heavy Duty Cable Protector 45° Right Turn – 635mm L x 508mm W x 77mm H, 12,891kg Per Axle
635mm L x 508mm W x 77mm H
£600.00
Skip to product information
3-Channel Heavy Duty Cable Protector 45° Right Turn – 635mm L x 508mm W x 77mm H, 12,891kg Per Axle
£600.00
A heavy-duty 45° right turn section for the 3-channel hinged-lid cable protector, letting your cable run change direction while still giving vehicles and pedestrians a safe crossing. It protects valuable electrical cables and hose lines from damage in extreme weather and harsh work environments, and its modular interlocking design suits oil and gas, mining, military and other industrial sites with heavy trucks and forklifts.
Features
- Creates a 45-degree right turn.
- Three channels protect cables and hoses up to 2.25" (57mm) outside diameter, each channel 57mm x 57mm.

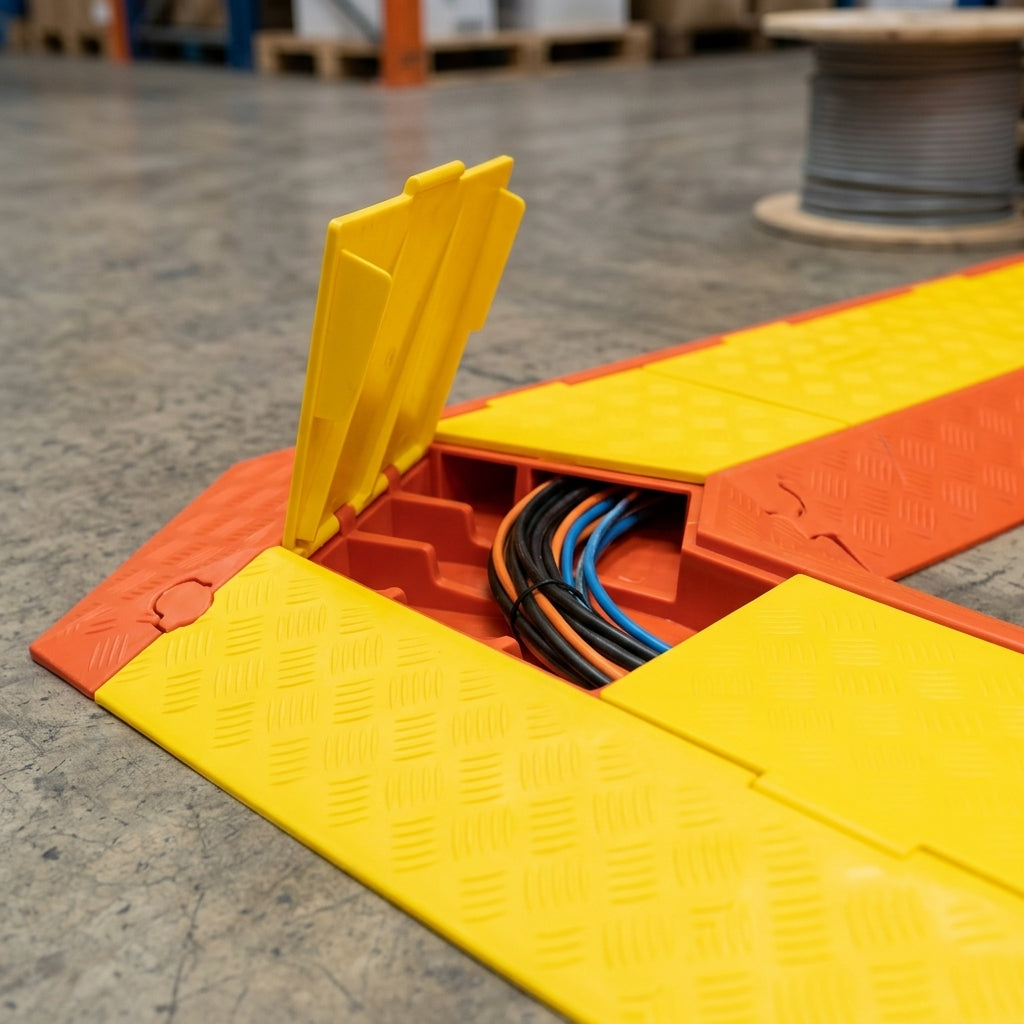

- Reinforced hinged lid for easy cable placement.
- Patented T-connectors to extend the run to any length.
- All-weather polyurethane construction that can be left outside.
- Patented 5-bar tread surface for maximum traction.
- Easy to transport, set up, take apart and store.
- One-year warranty.
Capacity & Size
- Capacity 12,891kg per axle.
- 635mm L x 508mm W x 77mm H, weighing 6.8kg.
Good to Know
- Product images are for illustration only; the actual product may vary slightly due to ongoing product improvements.
Details
| Height (mm) | 77 |
|---|---|
| Length (mm) | 635 |
| Weight (kg) | 6.8 |
| Width (mm) | 508 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Channel Width (mm) | 57 |
| Channel Size (mm) | 57 x 57 |
| Channel Height (mm) | 57 |
| Max Cable/ Hose Diameter (mm) | 5.72 |
| No. Channels | 3 |
| Colour Options | Black |
