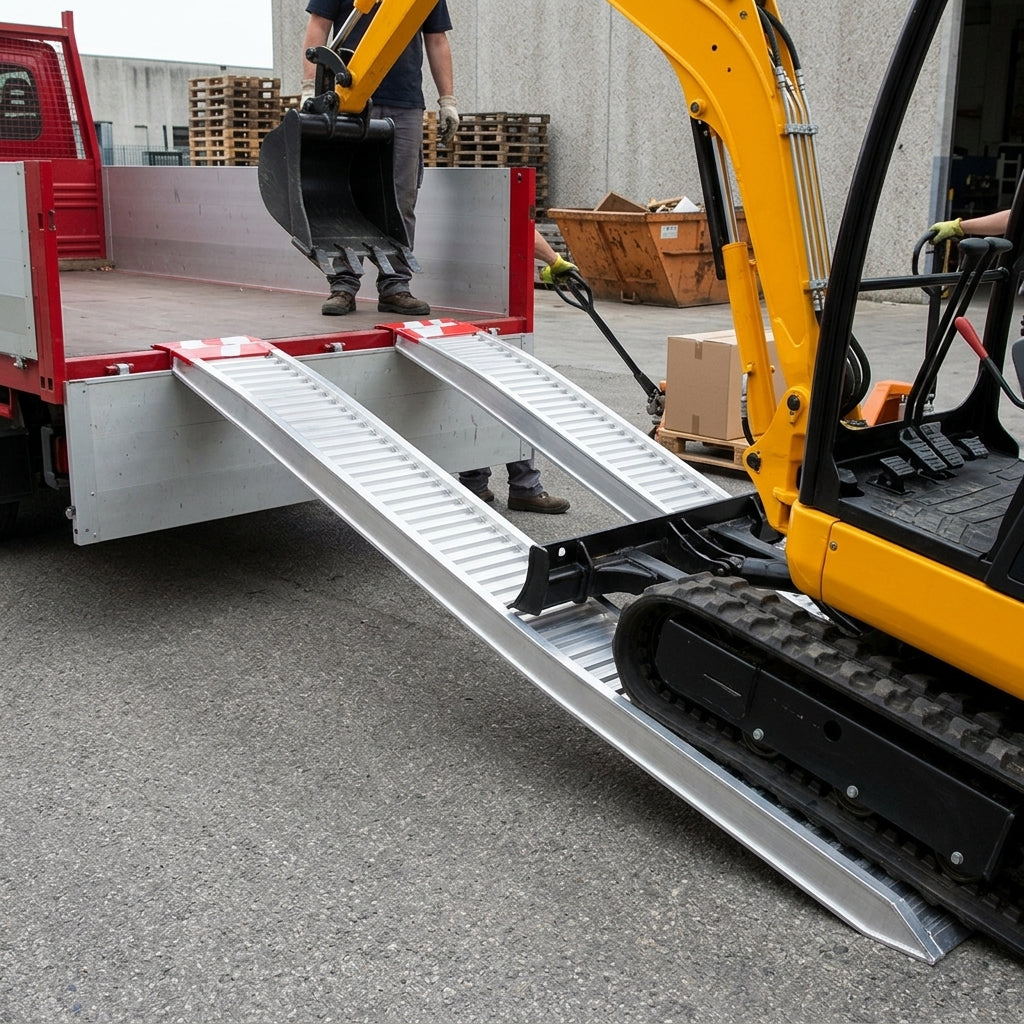

Extra Wide Aluminium Plant & Mini Digger Loading Ramps (Pair) – 3000mm L x 400mm W, 4500kg Capacity

A pair of extra wide aluminium loading ramps, each 3000mm long x 400mm wide with a 115mm profile thickness. With a maximum capacity of 4500kg for the pair, they are ideal as plant ramps or mini digger ramps, for load heights of 750mm to 900mm. These are among the best-selling plant ramps in the range.

• Minimum track/wheel width of 200mm is recommended, and the maximum track width of 320mm should not be exceeded.
• Weight: 24.5kg per ramp (49kg per pair).
• Capacity by vehicle wheelbase: 2500kg at 1000mm, 3000kg at 1500mm and 4500kg at 2000mm.
• Not designed for use at more than a 30% gradient.
• Available with or without edges (supplied without edges as standard).
• Easy to fit, European made and fully TÜV certified.
• Two-year warranty.

• Four connection options are available. The default is a rest-on connection with a pin, a popular choice for flatbed vehicles and tipper trucks; for beaver tail trailers a hook connection is normally recommended.

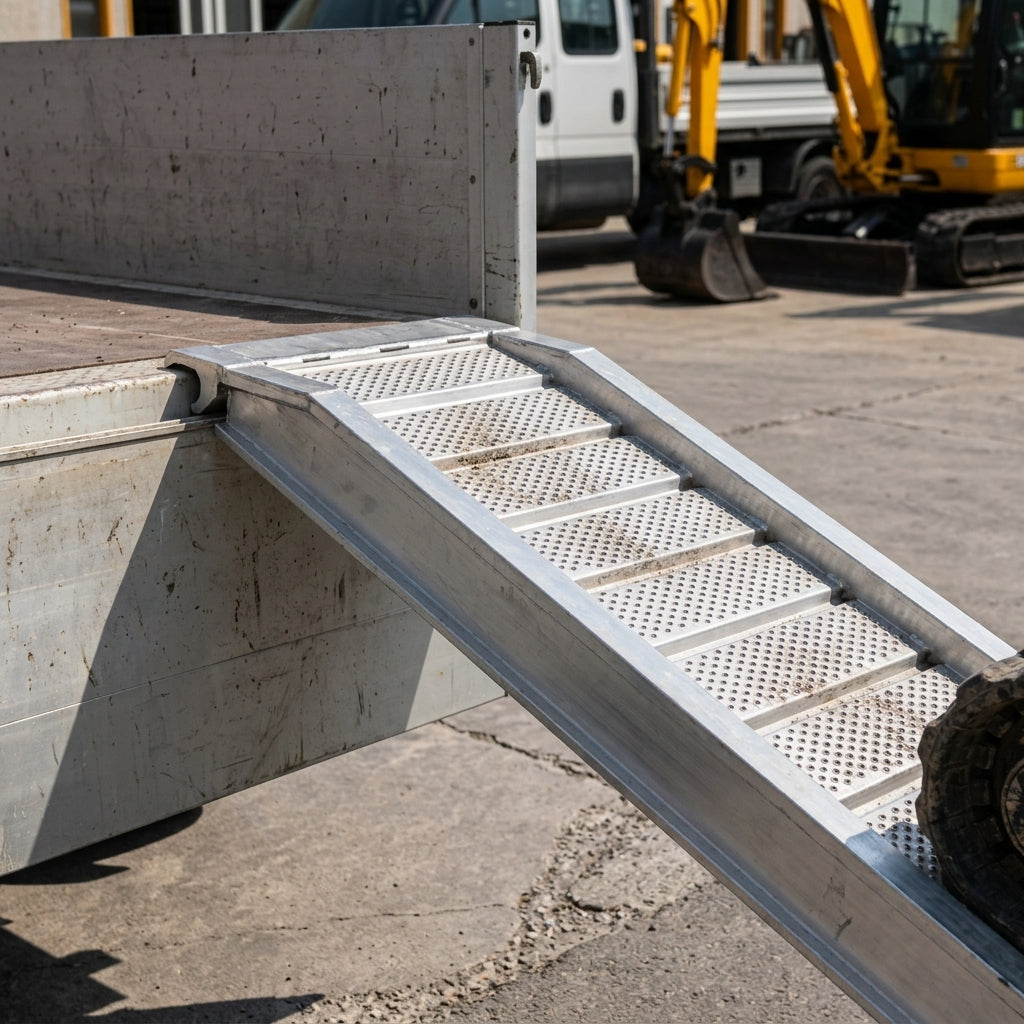

• The curved rest-on connection has a pre-drilled hole for securing the ramps to the vehicle. The angled foot keeps the ramp on the ground, while its weight and gradient help hold it firmly in place.
• If you need an alternative connection, such as a hook connection, just let us know after ordering.

• Measure the vertical height from the ground to where the ramp will rest on your vehicle – this is your load height – and check it falls within this ramp's minimum and maximum load height.
• For machines with low ground clearance, check suitability with us before ordering.

• The stated maximum capacities only apply to vehicles with evenly distributed weight; if your vehicle's weight is not evenly spread, ask us for advice before buying.
• Not suitable for solid wheels such as those on road surfacing machines – steel-track industrial ramps are the right choice for that machinery.
• Custom sizes, custom load heights and bespoke ramps are available on request. For a quote we need your load height, what you are loading and its maximum weight (plus the vehicle data sheet for low-clearance machines).
• Built to order.
• Pictures are for illustration only; the actual product may vary slightly due to ongoing product improvements.
