Aluminium Loading Ramps (Pair) – 3500mm L x 550mm W, 18000kg Capacity

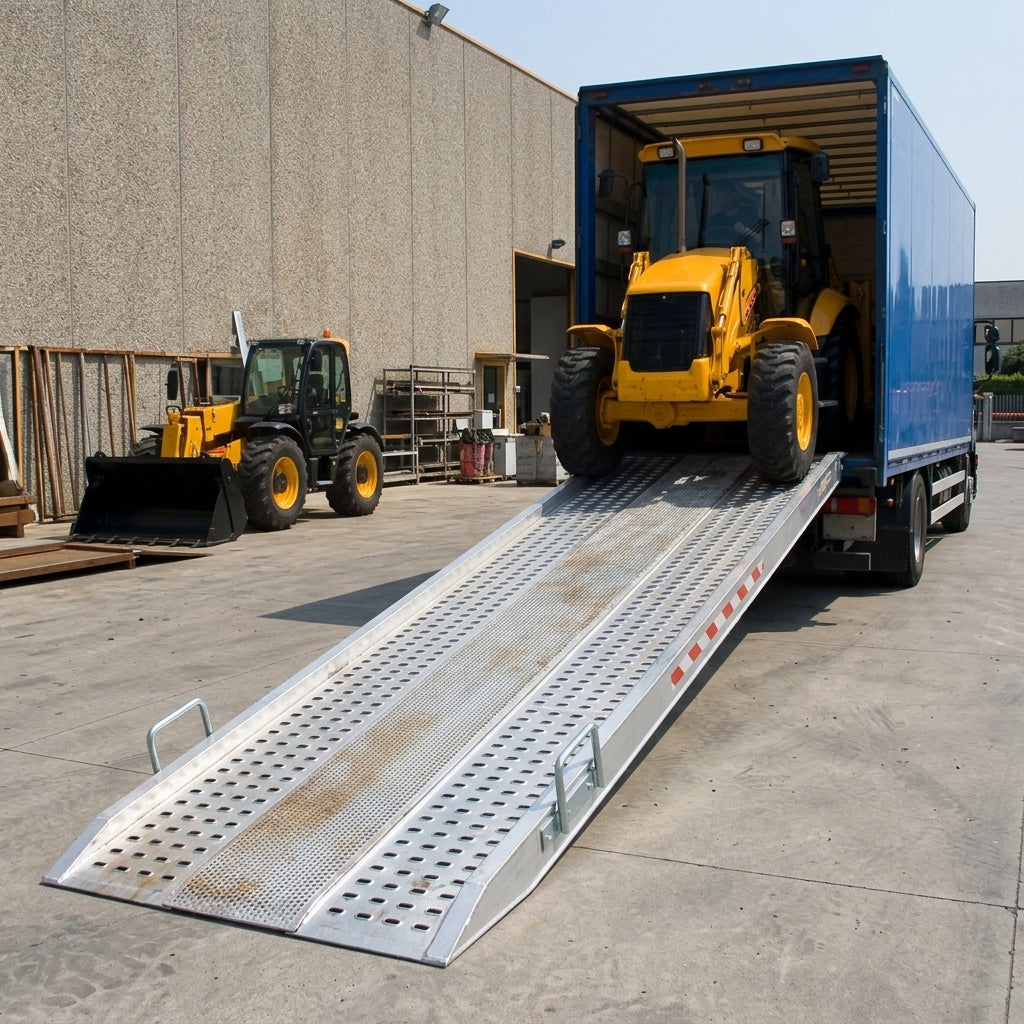

One of the heaviest duty ramps in the standard range, over half a metre wide, supplied as a pair of aluminium loading ramps for industrial plant machinery and heavy duty commercial loading. Each ramp is 3500mm long and 550mm wide with a 230mm profile thickness, and the pair is rated to a maximum of 18,000kg. The price and the stated capacity are both for the pair.

Features

• Available with or without edges.
• Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
• Fully TÜV certified.
• European made and easy to fit.
• One-year warranty.

Size & Capacity

• Size per ramp: 3500mm L x 550mm W x 230mm profile thickness.
• Track/wheel width: minimum 400mm, maximum 450mm.
• Capacity by wheelbase (pair): 12,010kg at a 1000mm wheelbase, 15,010kg at a 1500mm wheelbase, 18,000kg at a 2000mm wheelbase.
• Weight: 81kg per ramp (162kg per pair).

Load Height & Gradient

• Load height range: 900mm to 1050mm (measured vertically from the ground to the point where the ramp rests on the vehicle).

Connection & Fitting

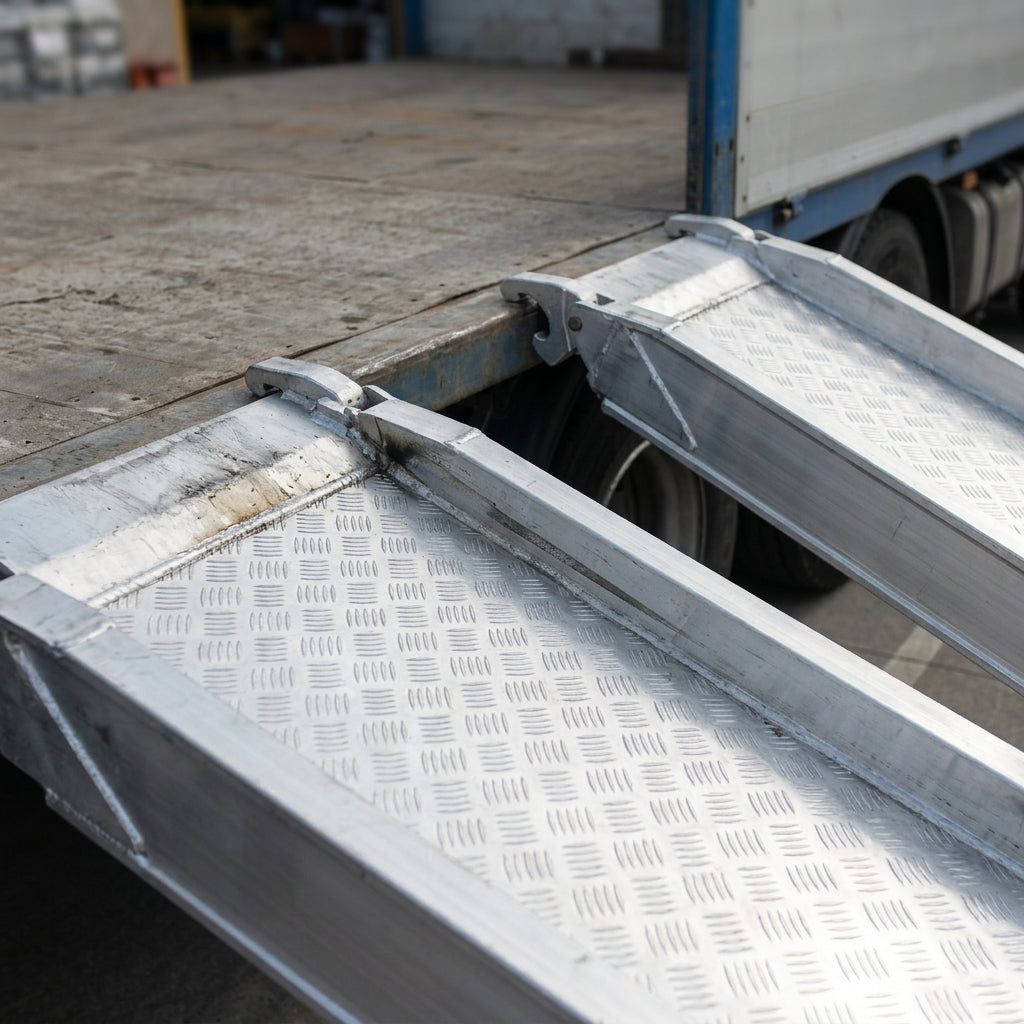

• Four connection options are available, with the rest-on connection as the default.

Good to Know

• Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
