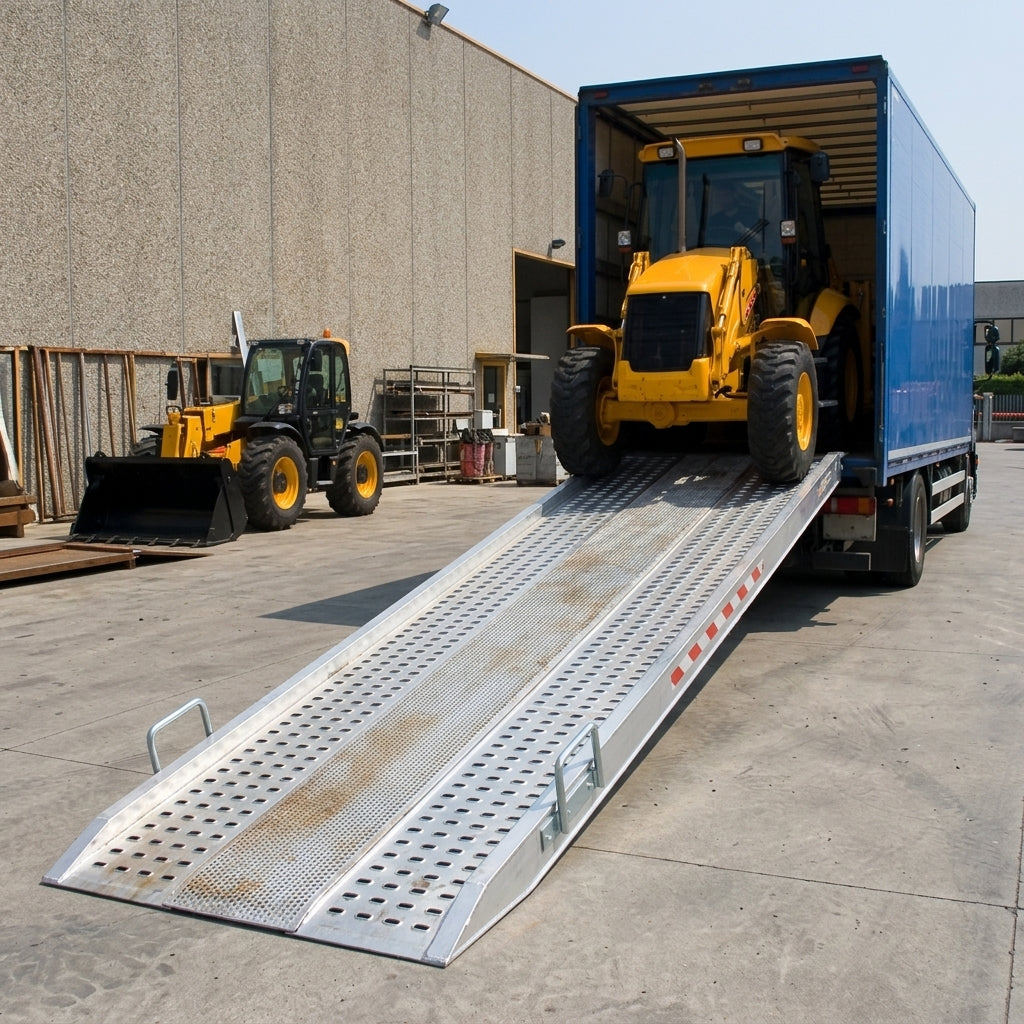

Aluminium Loading Ramps (Pair) – 3500mm L x 550mm W, 18000kg Capacity
£5,796.00
Not sure it suits your machine?
Send us your load height and machine weight — we'll confirm the right ramp before you order.
Overview
One of the heaviest duty ramps in the standard range, over half a metre wide, supplied as a pair of aluminium loading ramps for industrial plant machinery and heavy duty commercial loading. Each ramp is 3500mm long and 550mm wide with a 230mm profile thickness, and the pair is rated to a maximum of 18,000kg. The price and the stated capacity are both for the pair.
Specifications
| Size | 3500mm L x 550mm W x 230mm H |
|---|---|
| Height of Ramps Profile (mm) | 230 |
| Length (mm) | 3500 |
| Width (mm) | 550 |
| Minimum Track Width (mm) | 400 |
| Maximum Track Width (mm) | 450 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 18000 |
| Max Load Height (mm) | 1050 |
| Min. Load Height (mm) | 900 |
| Weight per Ramp (kg) | 81 |
| Weight Per Pair (kg) | 162 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 1000mm (kg) | 12,010 |
| Capacity Wheelbase 1500mm (kg) | 15,010 |
| Capacity Wheelbase 2000mm (kg) | 18,000 |
| Min - Max Load Height | 900mm - 1050mm |
Features
- Available with or without edges.
- Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
- Fully TÜV certified.
- European made and easy to fit.
- One-year warranty.
Size & Capacity
- Size per ramp: 3500mm L x 550mm W x 230mm profile thickness.
- Track/wheel width: minimum 400mm, maximum 450mm.
- Capacity by wheelbase (pair): 12,010kg at a 1000mm wheelbase, 15,010kg at a 1500mm wheelbase, 18,000kg at a 2000mm wheelbase.
- Weight: 81kg per ramp (162kg per pair).
Load Height & Gradient
- Load height range: 900mm to 1050mm (measured vertically from the ground to the point where the ramp rests on the vehicle).
Connection & Fitting

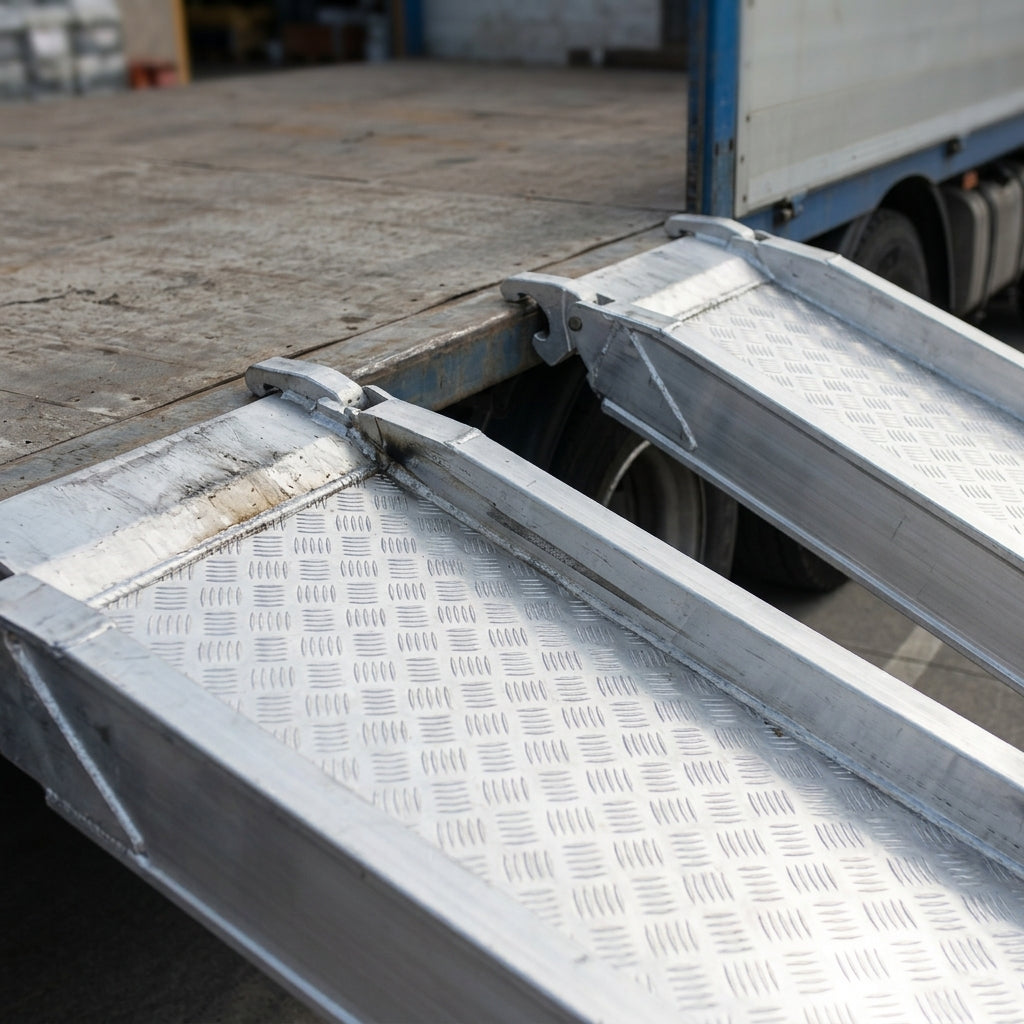

- Four connection options are available, with the rest-on connection as the default.
Good to Know
- Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
- Images are for illustration only; the actual product may vary slightly due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
Need more width or reach?
All loading ramps →Wider tracks

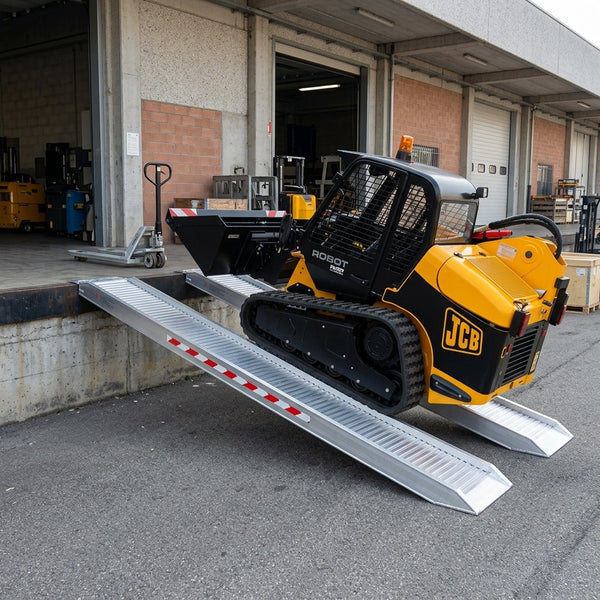

Heavy Duty Aluminium Plant Loading Ramps (Pair) – 3000mm L x 580mm W, 200mm Profile, 14000kg Capacity
