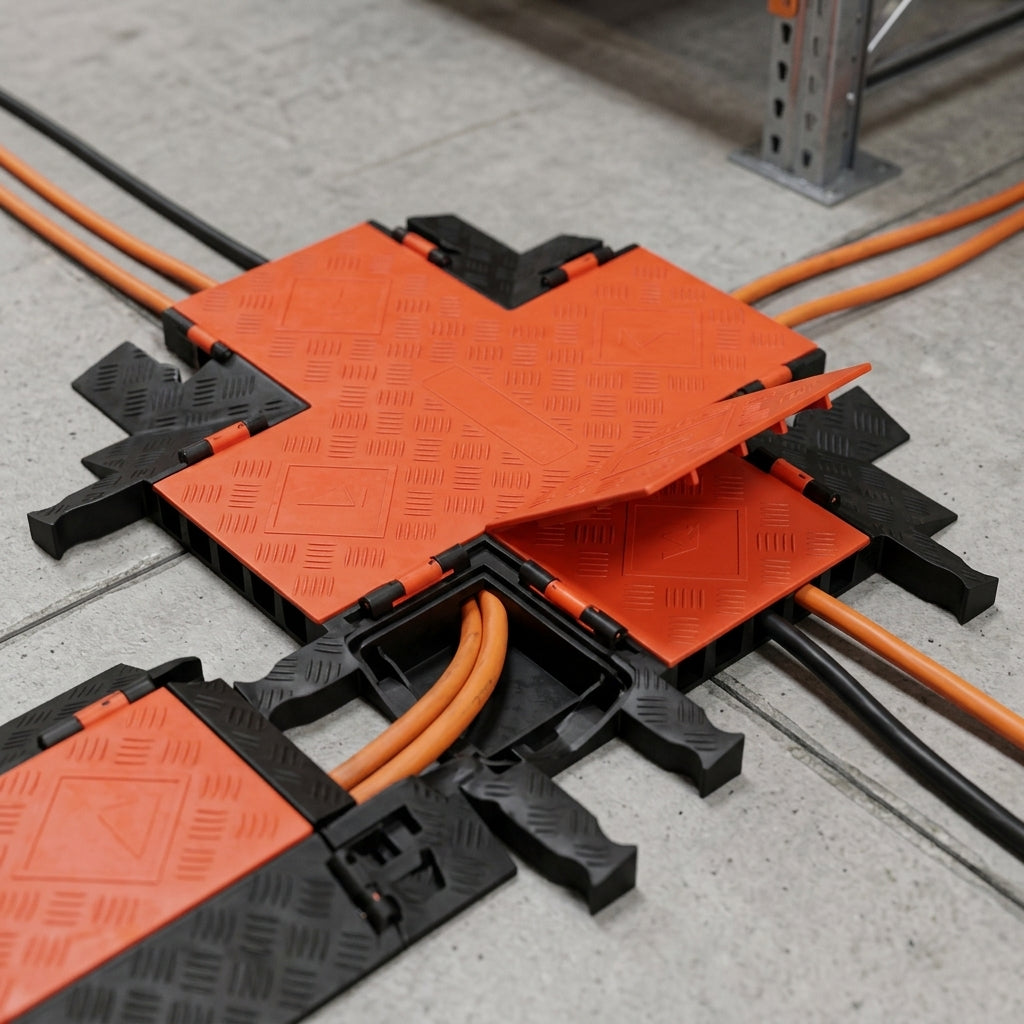

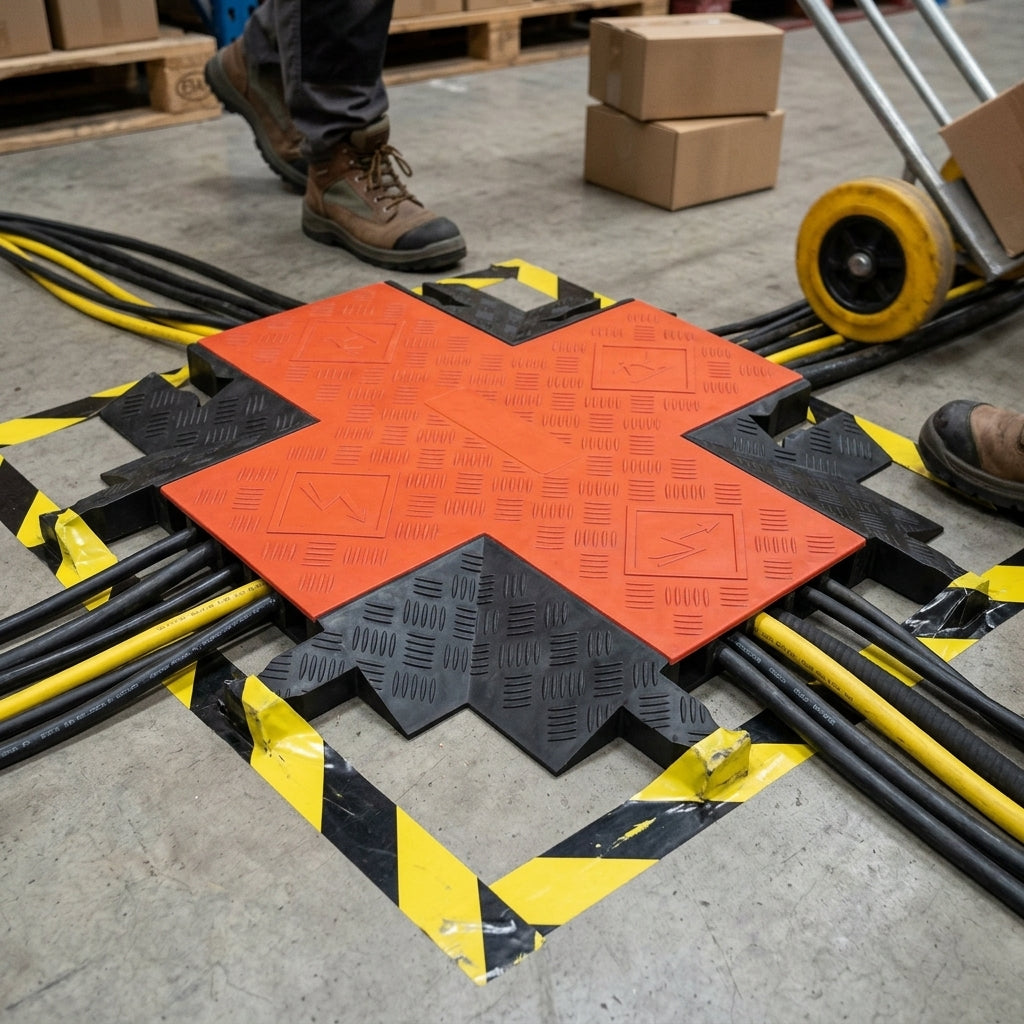

5-Channel 4-Way Cross Cable Protector, Orange/Black – 90° Junction for Cables up to 1.325", 502mm W x 48mm H, 9,526kg Per Axle

A 90-degree 4-way cross section for splitting or joining cable runs within a 5-channel cable protector system. It takes cables and hoses up to 1.325" in diameter and shares the same durable all-weather polyurethane construction and high-traction 5-bar tread as the rest of the range. Thanks to its modular, interlocking design it works seamlessly with the other cable protectors, giving vehicles and pedestrians a safe crossing while protecting valuable electrical cables and hose lines from damage. Ideal for amusement parks, entertainment venues, sporting events, construction sites and most public, commercial, industrial and utility applications.

Features

• Made to fit the 5-channel cable protector (orange/black).
• Creates a 90-degree 4-way cross to split or join cable runs.
• 5 channels for cables and hoses up to 1.325" outside diameter.
• Joins with dog-bone connectors for easy expansion.
• Fitted with a lid over the channels.
• Patented 5-bar tread surface for maximum traction.
• Capacity of 9,526kg per axle (4,763kg per tyre).
• Easy to fit and suitable to leave outside.
• One-year warranty.

Size

• Lengths: 622mm and 724mm; width 502mm; height 48mm; weight 10.5kg.
• Each channel: 34mm W x 33.7mm H.

Good to Know

• Speed limit when crossing: 10mph.
• The actual product may vary slightly due to ongoing product improvements.
