5-Channel 4-Way Cross Cable Protector, Orange/Black – 90° Junction for Cables up to 1.325", 502mm W x 48mm H, 9,526kg Per Axle

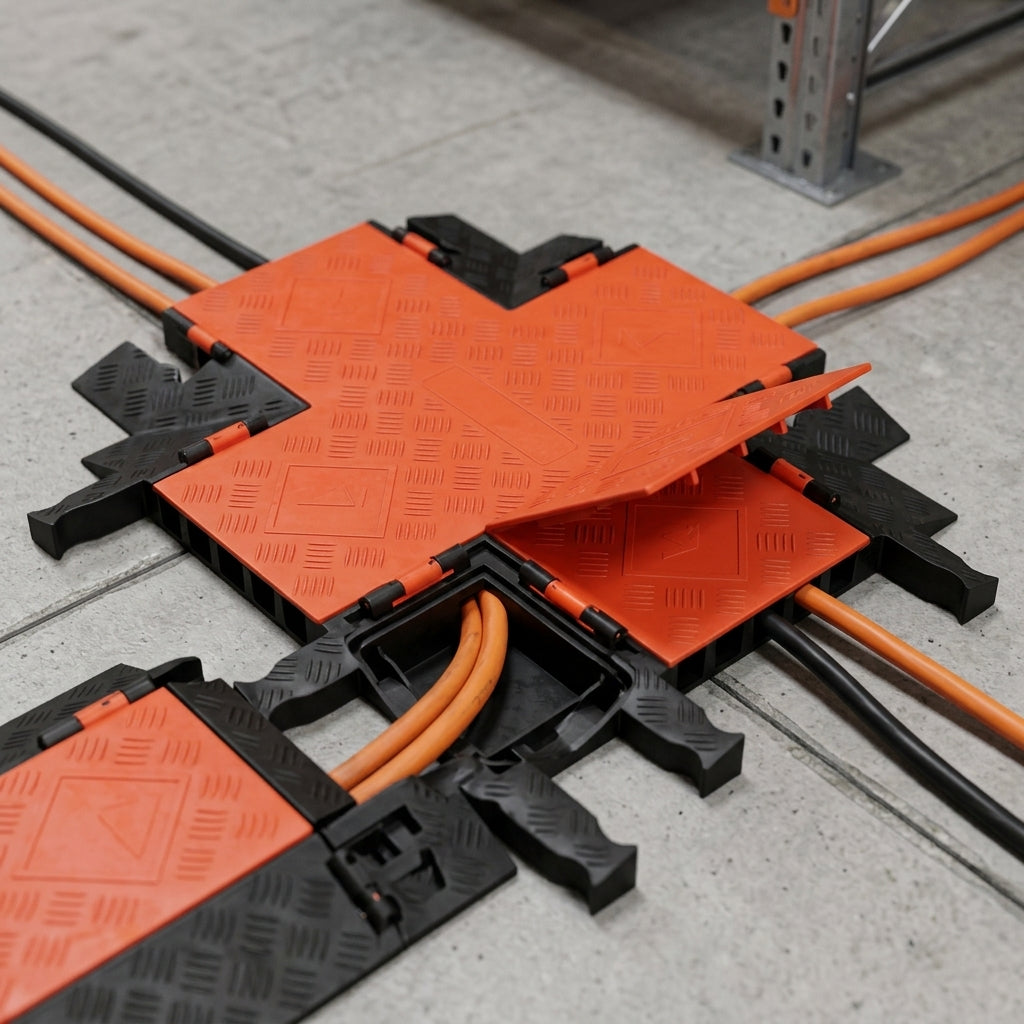

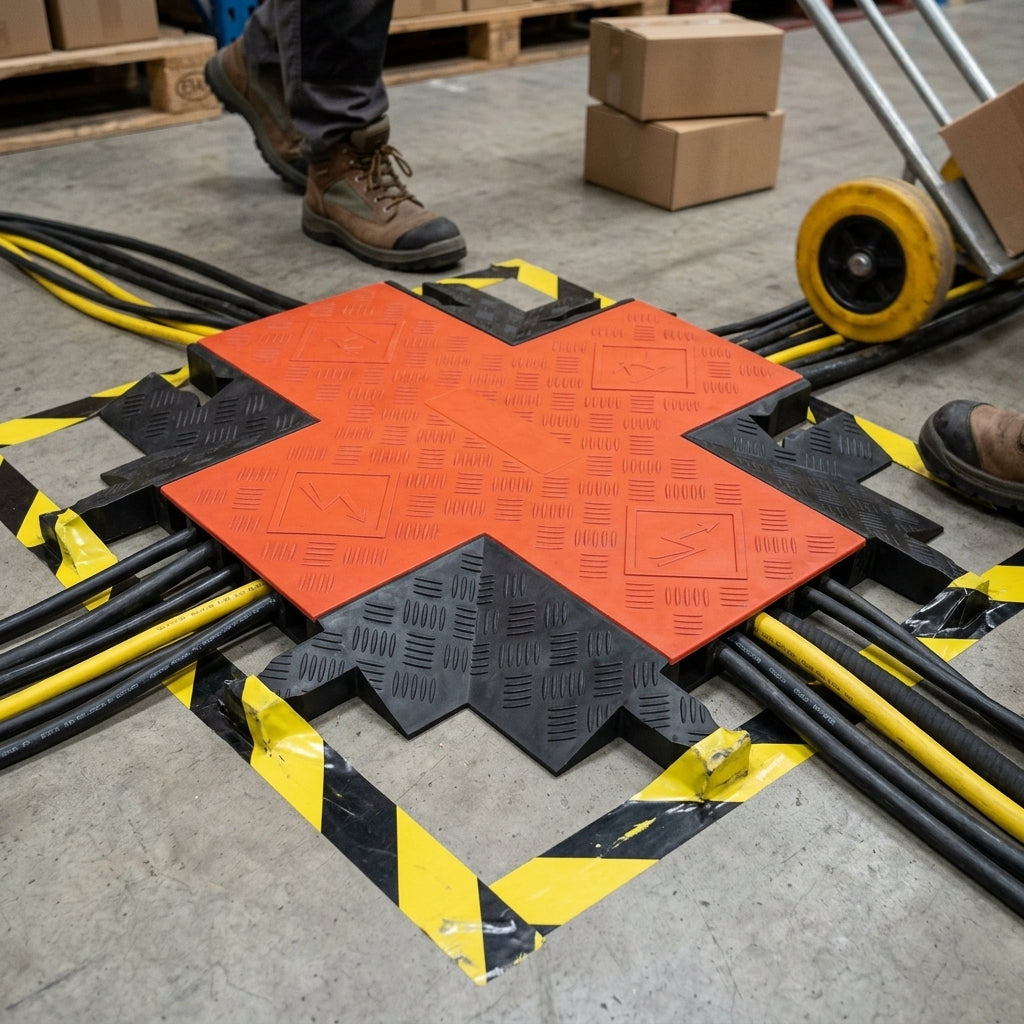

A 90-degree 4-way cross section for splitting or joining cable runs within a 5-channel cable protector system. It takes cables and hoses up to 1.325" in diameter and shares the same durable all-weather polyurethane construction and high-traction 5-bar tread as the rest of the range. Thanks to its modular, interlocking design it works seamlessly with the other cable protectors, giving vehicles and pedestrians a safe crossing while protecting valuable electrical cables and hose lines from damage. Ideal for amusement parks, entertainment venues, sporting events, construction sites and most public, commercial, industrial and utility applications.

• Made to fit the 5-channel cable protector (orange/black).
• Creates a 90-degree 4-way cross to split or join cable runs.
• 5 channels for cables and hoses up to 1.325" outside diameter.
• Joins with dog-bone connectors for easy expansion.
• Fitted with a lid over the channels.
• Patented 5-bar tread surface for maximum traction.
• Capacity of 9,526kg per axle (4,763kg per tyre).
• Easy to fit and suitable to leave outside.
• One-year warranty.

• Lengths: 622mm and 724mm; width 502mm; height 48mm; weight 10.5kg.
• Each channel: 34mm W x 33.7mm H.

• Speed limit when crossing: 10mph.
• The actual product may vary slightly due to ongoing product improvements.
