Modular Rubber Hose Bridge Ramp System – 100mm or 150mm High

Modular Hose Bridge Ramps 10,000kg Capacity

Modular Rubber Hose Bridge Ramp System – 100mm or 150mm High, 275mm Wide, 10,000kg

£24.00

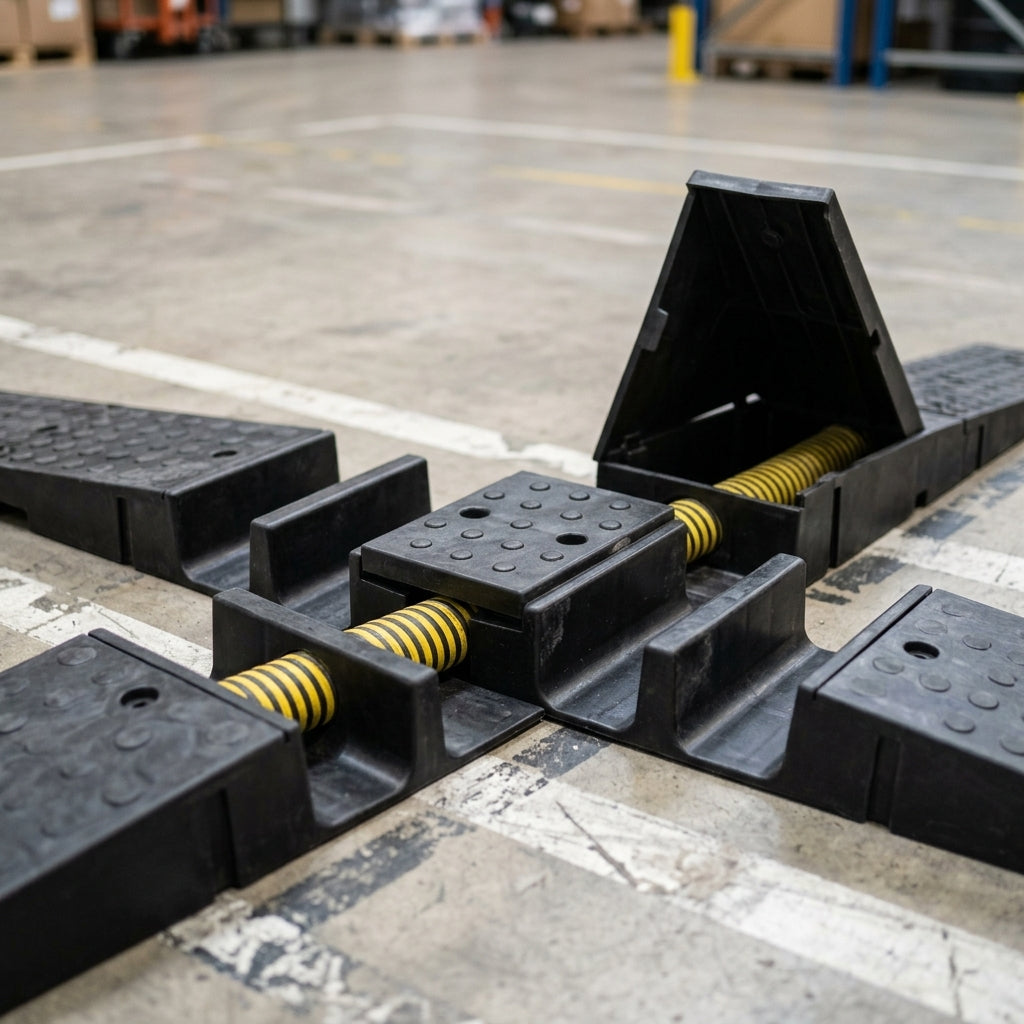

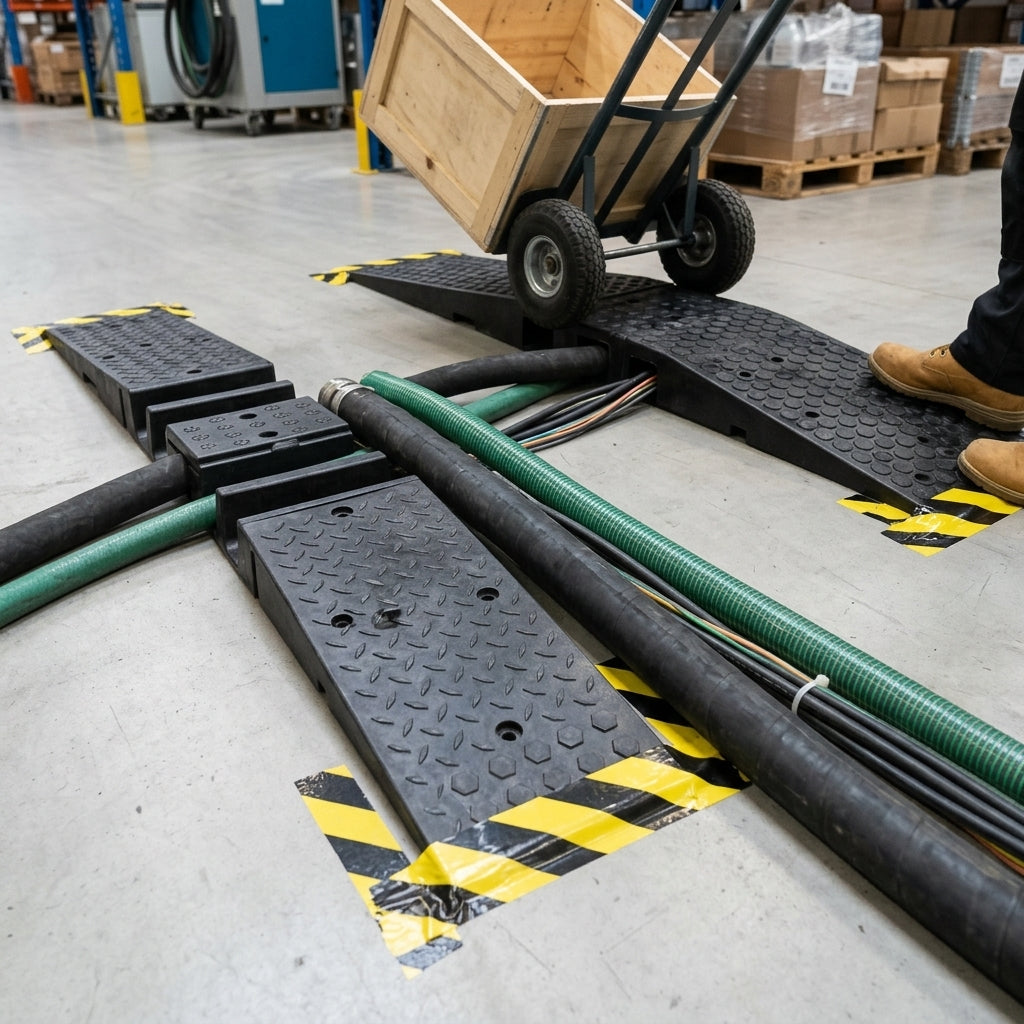

A modular rubber hose and cable protector that shields large cables and hoses from both foot and vehicle traffic. The kit takes cables and hoses up to 162mm wide x 126mm high, comes in 100mm and 150mm heights, and is rated to 10,000kg. Mix and match the ramp, channel and connector sections to build a protector that fits exactly what you need.

Features

Customisable: choose the sections that suit your hoses and cables.
Made from durable rubber that copes with all weather, for indoor and outdoor use.
Anti-slip chequered surface.
Heavy duty, suitable for pedestrians and vehicles with a capacity of up to 10,000kg.
Interlocking modular pieces make it easy to install.
A smooth gradient helps reduce trip hazards.
All sections are 275mm wide and black.

100mm High Sections

Ramp section: 275mm W x 765mm L x 100mm H, 10.5kg (sold as a pair).
Middle tunnel / channel section: 275mm W x 424mm L x 100mm H, with a 107mm W x 80mm H channel, 6.5kg.
Extend section / connector: 275mm W x 220mm L x 100mm H, 3.6kg.

150mm High Sections

Ramp section: 150mm H, 23.5kg (sold as a pair).
Middle tunnel / channel section: 275mm W x 524mm L x 150mm H, with a 162mm W x 126mm H channel, 11kg.
Extend section / connector: 275mm W x 220mm L x 150mm H, 4.5kg.
