Modular Rubber Hose Bridge Ramp System – 100mm or 150mm High, 275mm Wide, 10,000kg
£24.00
Not sure it's the right one?
Tell us where and how it will be used — we'll confirm the right product before you order.
Overview

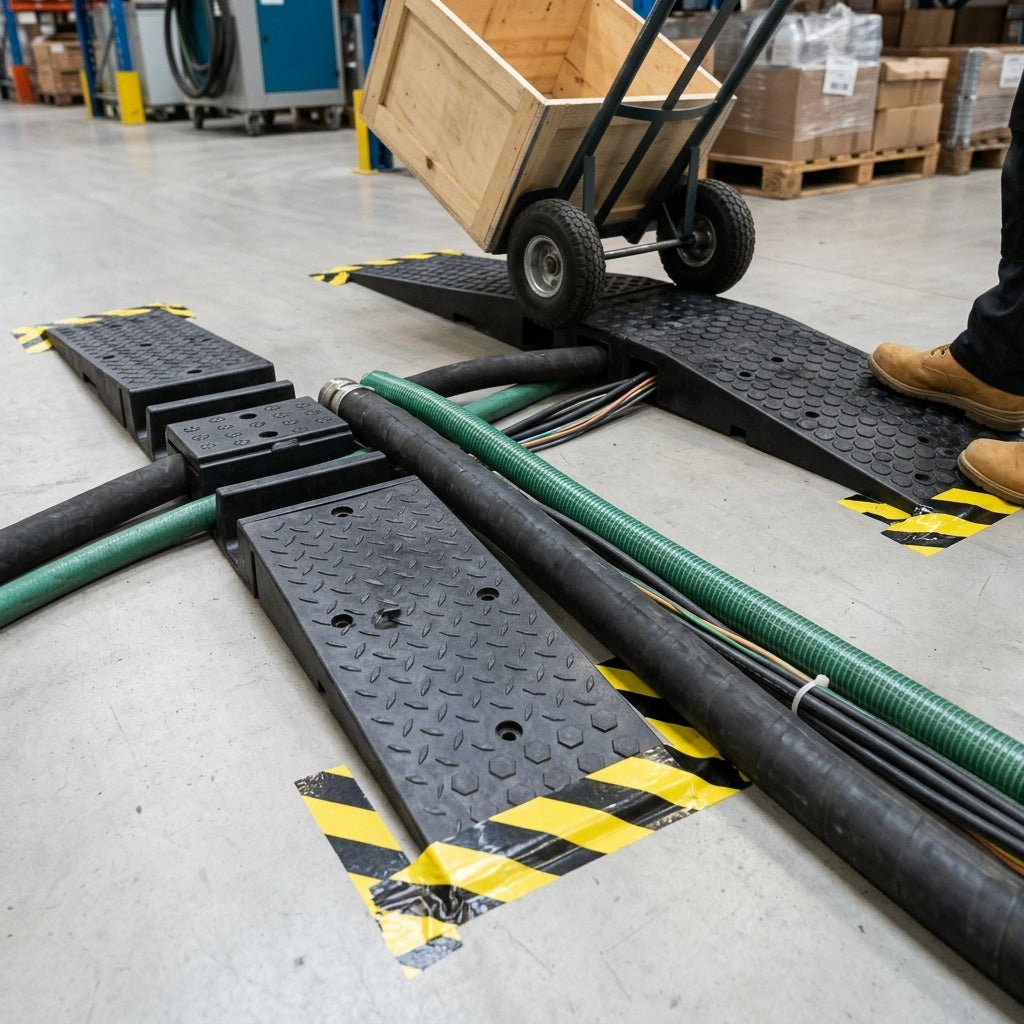

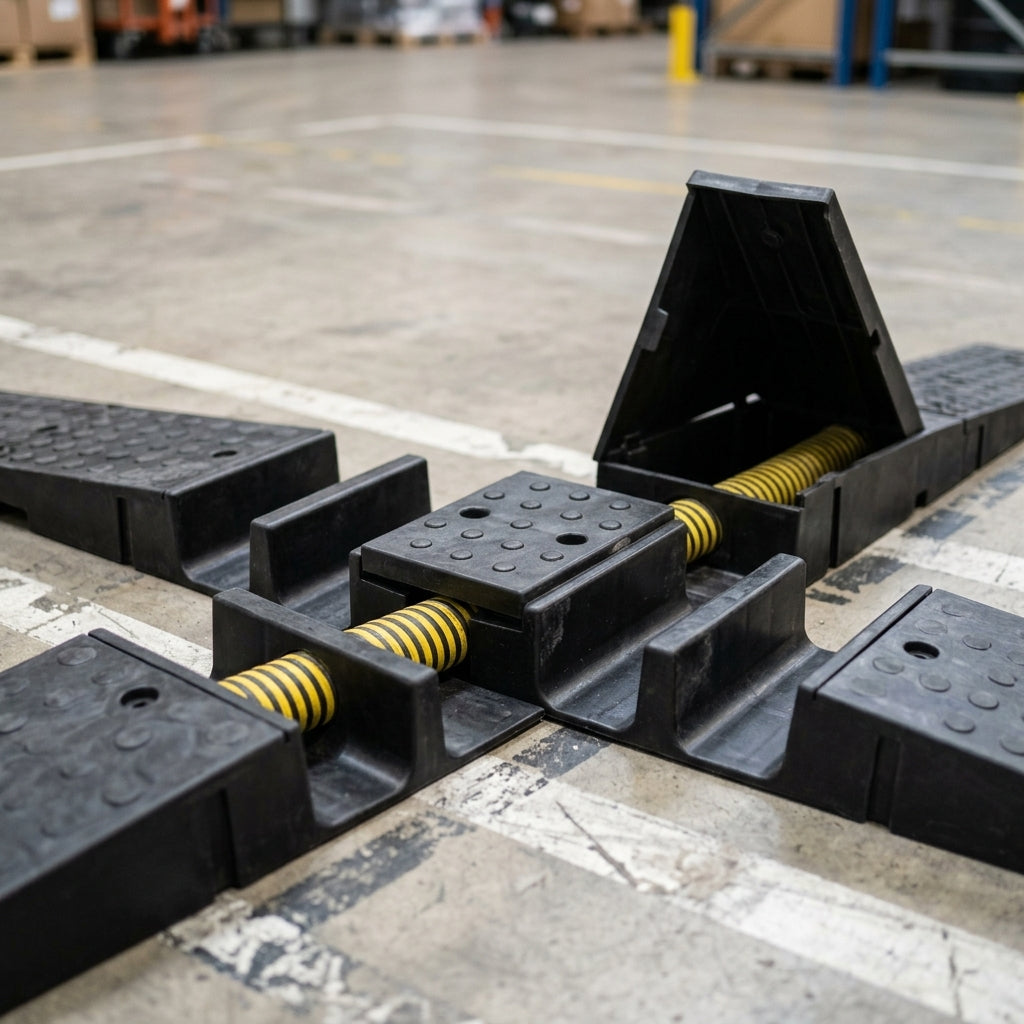

A modular rubber hose and cable protector that shields large cables and hoses from both foot and vehicle traffic. The kit takes cables and hoses up to 162mm wide x 126mm high, comes in 100mm and 150mm heights, and is rated to 10,000kg. Mix and match the ramp, channel and connector sections to build a protector that fits exactly what you need.
Specifications
| Size | 275mm W x 100mm–150mm H Modular Sections |
|---|---|
| Height (mm) | 100-150 |
| Width (mm) | 275 |
| Capacity (kg) | 10000 |
| Colour Options | Black |
Features
- Customisable: choose the sections that suit your hoses and cables.
- Made from durable rubber that copes with all weather, for indoor and outdoor use.
- Anti-slip chequered surface.
- Heavy duty, suitable for pedestrians and vehicles with a capacity of up to 10,000kg.
- Interlocking modular pieces make it easy to install.
- A smooth gradient helps reduce trip hazards.
- All sections are 275mm wide and black.
100mm High Sections
- Ramp section: 275mm W x 765mm L x 100mm H, 10.5kg (sold as a pair).
- Middle tunnel / channel section: 275mm W x 424mm L x 100mm H, with a 107mm W x 80mm H channel, 6.5kg.
- Extend section / connector: 275mm W x 220mm L x 100mm H, 3.6kg.
150mm High Sections
- Ramp section: 150mm H, 23.5kg (sold as a pair).
- Middle tunnel / channel section: 275mm W x 524mm L x 150mm H, with a 162mm W x 126mm H channel, 11kg.
- Extend section / connector: 275mm W x 220mm L x 150mm H, 4.5kg.
