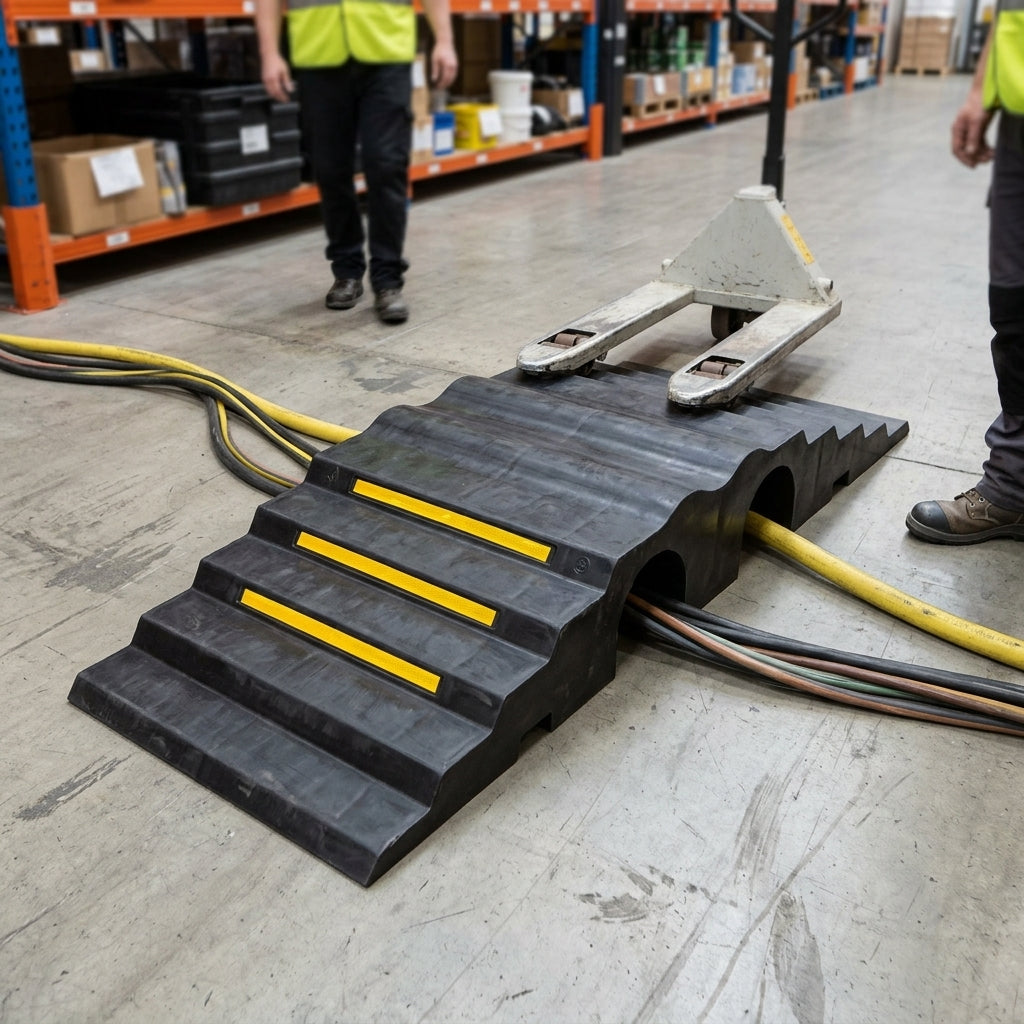

Rubber Hose Bridge Ramp 855mm x 300mm x 125mm – 2 Channels 90mm x 105mm, 12,000kg Capacity

A heavy-duty rubber hose bridge measuring 855mm long x 300mm wide x 125mm high, with two large channels that protect hoses up to 10cm in diameter from heavy vehicle traffic. With a 12,000kg capacity it suits industrial sites and HGVs, and is ideal for discharge, suction, extraction and fire hoses as well as large electrical cables. There is nothing to install – simply rest it in place and start using it.

• Two master stream channels, each 90mm x 105mm, sized for 3-3/4" hose.
• Industrial-strength thermoplastic rubber bridge design.
• 12,000kg capacity, suitable for HGVs.
• Safety yellow reflective strips and glass bead reflectors for high visibility, including at night.
• A 30cm x 12.5cm carrying handle at each end for quick placement over hoses.
• Weighs 19kg, so it is easy to lift, move and store – handy for moving between work sites or for short-term projects.
• Flexible enough for indoor or outdoor use, including on concrete and tarmac, and can be left outside.
• Maximum vehicle speed: 5mph.
• One-year warranty.

• Each unit comes with 2 dog bone connectors, so you can place several ramps side by side and join them securely to cover the length you need; the joined ramps stay firmly in place and give a continuous run of protection.
• The connectors can also be used to mount the ramps permanently. The ramps themselves have no ground fixing points – their weight keeps them in place.
• For longer life, set the ramp at a 30° angle to the flow of traffic so vehicles cross one wheel at a time.

• When choosing a hose or cable protector, pick the lowest height that fits to give the most clearance for the widest range of vehicles.
• Bulk pricing is available.
