Heavy Duty Aluminium Truck Ramp 1000mm Wide – 2600mm to 5000mm Long, 1000kg or 2000kg TÜV Certified

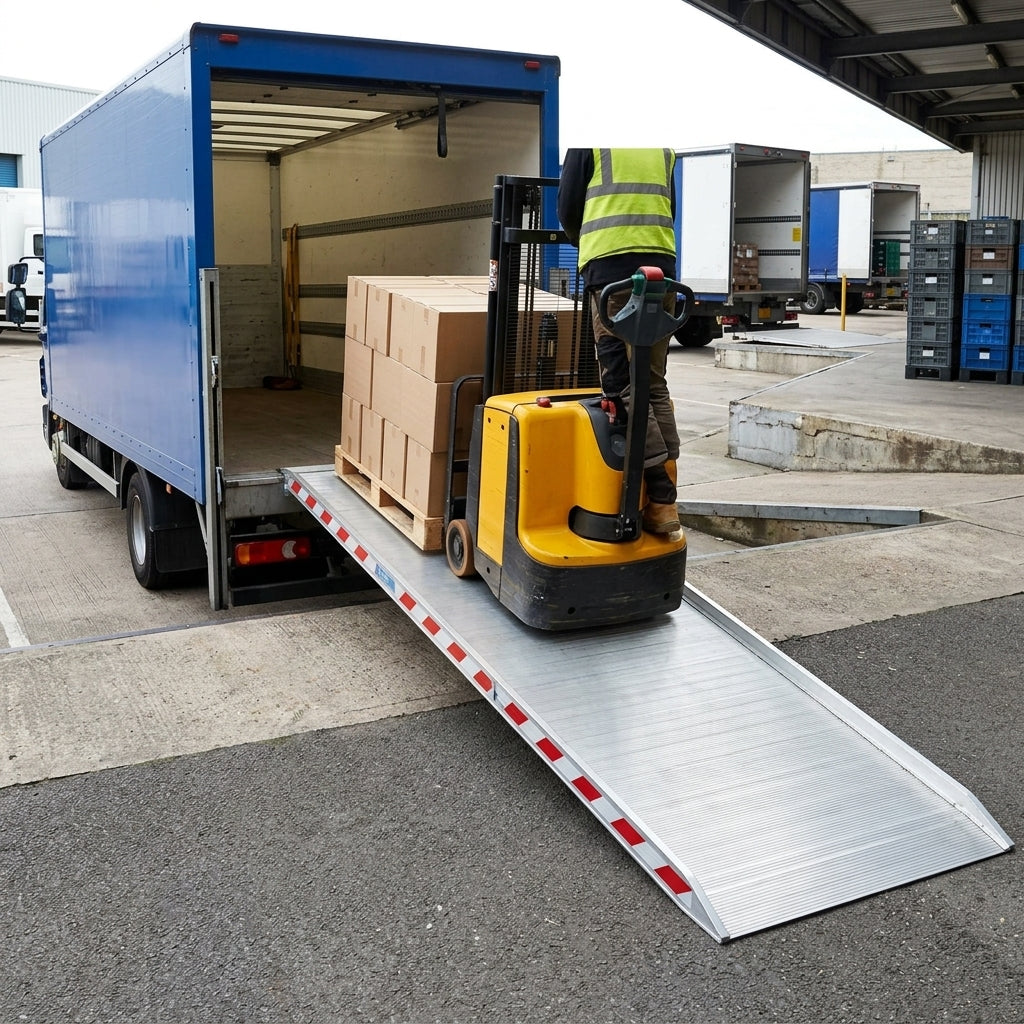

A premium single-piece aluminium truck loading ramp, 1000mm wide, available in 2600mm, 3000mm, 3600mm, 4000mm, 4400mm and 5000mm lengths with a capacity of 1000kg or 2000kg. Built for commercial use, it is ideal for safely loading equipment, trolleys, flight cases and goods into vans and trucks or over steps, and the lengths up to 5m make it well suited to higher load heights. Made in Italy, this solid TÜV-certified ramp gives a smooth, safe loading gradient and has an R13 slip-resistant surface for maximum grip. It can be customised where needed.

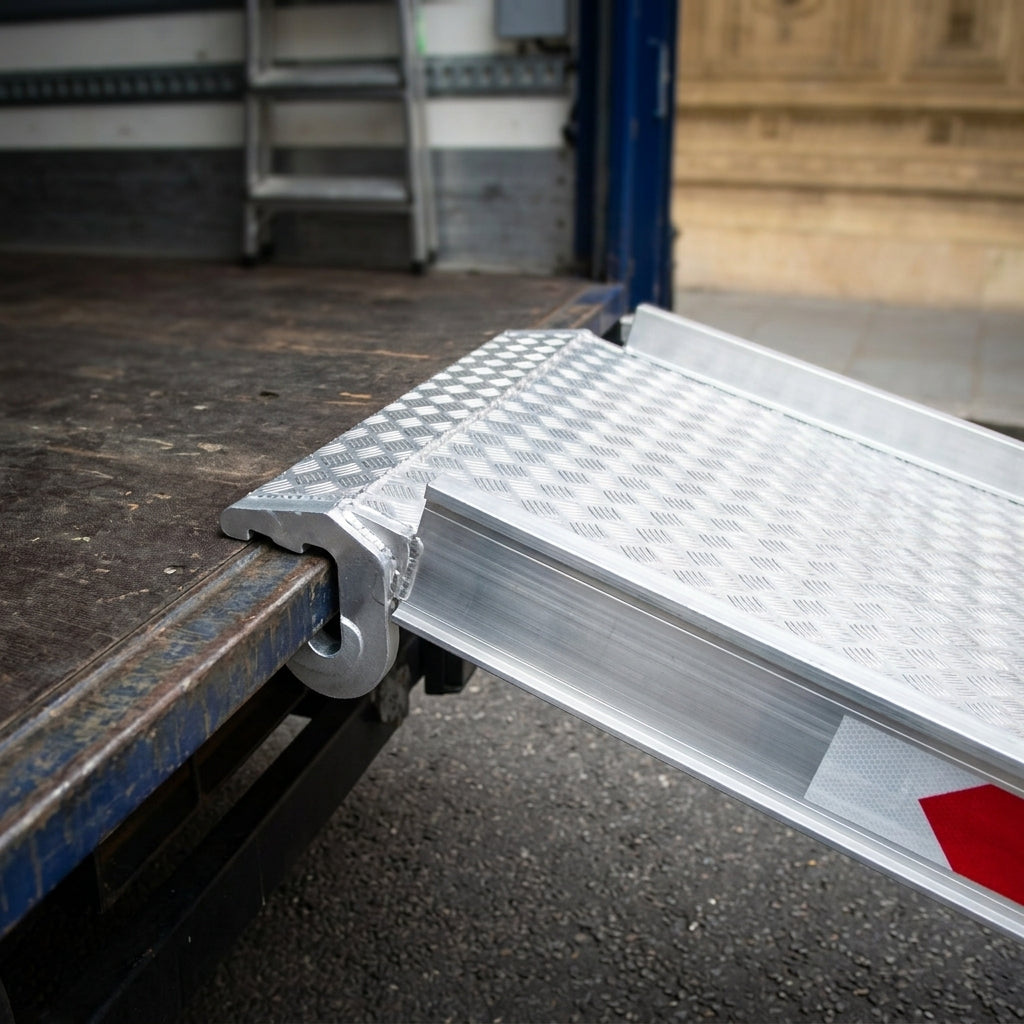

• Rest-on connection: just rest it on your truck and start loading; no vehicle modification needed. A pre-drilled hole and the supplied pin secure the ramp during loading.
• Extended connection terminal bridges most bumpers, crash bars and tow bars.
• Optimised ramp weight helps the ramp stay connected to the truck.
• Robot welded for a solid, strong and durable build; lightweight aluminium for easier handling.
• Fully TÜV certified to 1000kg or 2000kg as standard.
• Premium R13 slip-resistant (DGUV 108-003) surface helps stop users and items slipping.
• Angled foot precision-cut to match the load height, giving a smooth entry from the ground when using castors or wheels, especially useful for low-clearance items.
• 29/30mm raised safety edges on each side stop items, including trolleys and cages, rolling off (ramps without edges are also available).
• Lies flat for easy storage; low maintenance, simply wipe away debris as needed.

• Supplied with the rest-on connection as standard (ideal for flatbed vehicles); four connection options are available, including a hook connection.
• As standard the ramp is designed for loading at a 30% gradient; the foot can be precision-cut for a smoother gradient, ideal for low-clearance items such as pallet trucks.
• Bespoke ramps can be built to any length or width, or with nylon grab handles.

• Maximum load height ranges from 780mm to 1500mm and weight from 40kg to 97kg, depending on length and capacity.
• The ramp stays securely in place thanks to the curved rest-on connection with pre-drilled hole, the angled foot, and the ramp's own weight and angle.
• A folding version is available for a more compact solution.
• For machinery such as ride-on mowers, dumper trucks or diggers, a pair of plant ramps is generally recommended, as their surface is designed for this and they are lighter to handle.
• Meets the EU recommended gradient guidelines. Because of its weight, carry out a manual handling risk assessment; two people are usually needed.

• Made in Italy (European made). Easy to fit.
• Two-year warranty.
• Images are for illustration only; the actual product may vary due to product improvements.
