Heavy Duty 4-Channel Cable Protector – 700mm L x 783mm W x 139mm H, 5,000kg, 120mm x 113mm Channels

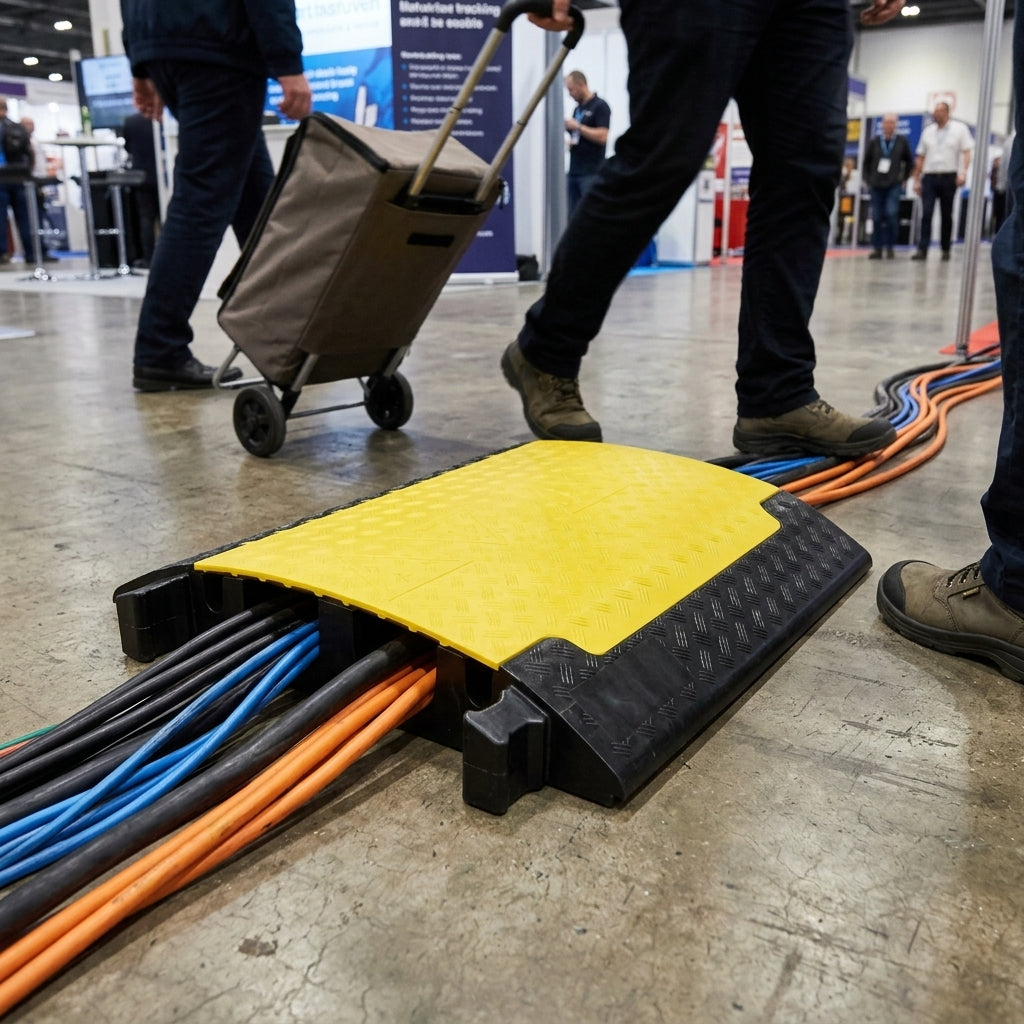

A heavy-duty 4-channel cable and hose protector for large cables, with two extra-large 120mm x 113mm channels and two 33mm x 50mm channels. Rated at 5,000kg per 20cm x 20cm (10,000kg per axle), it protects cables and hoses from pedestrian and vehicle traffic on construction sites, in warehouses and at music events.

• The large channels suit A-type suction hoses and multipin connectors.

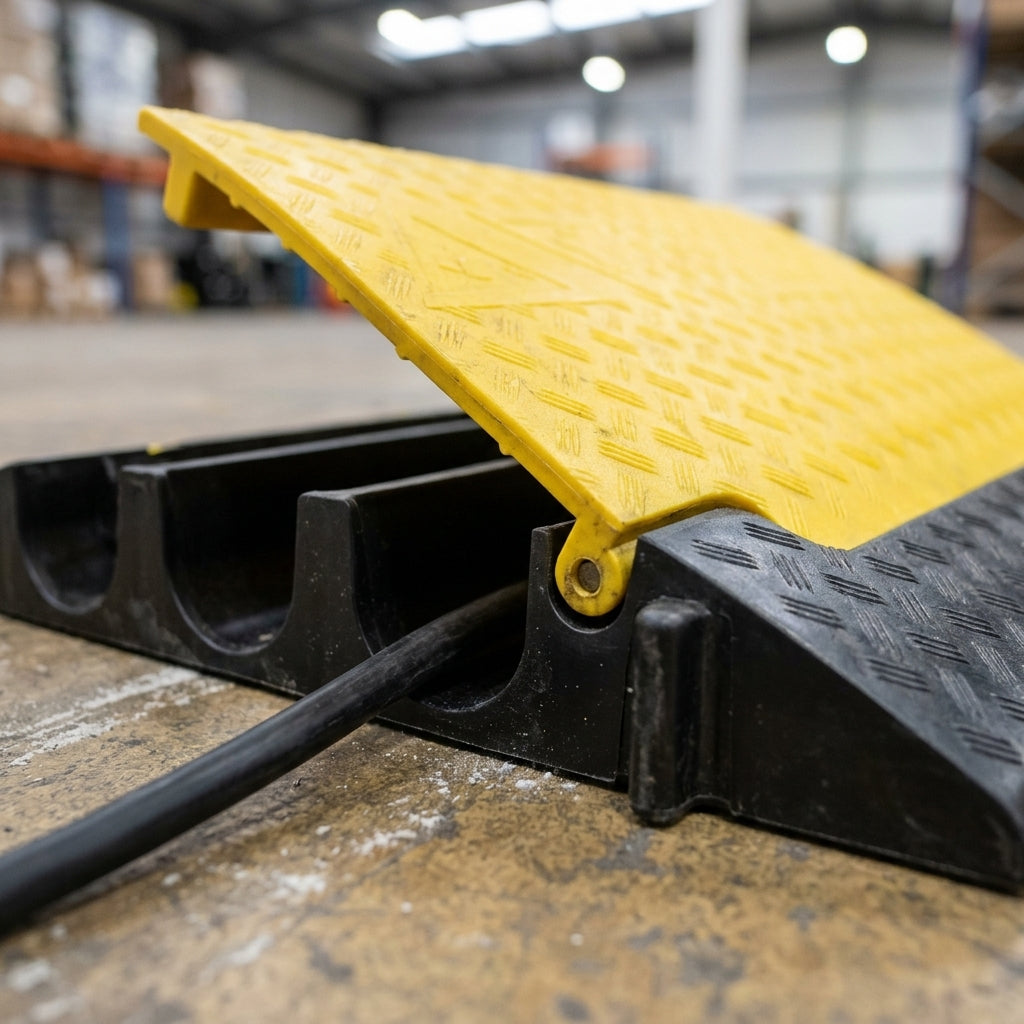

• Non-slip yellow polyethylene lid with a chequered high-visibility surface.
• Patented, self-cleaning lid hinge that locks securely when closed.
• Interlocking, so multiple units connect to cover your cable length.
• Quick to use: rest it on the floor, open the lid and insert cables and hoses.
• Made from non-breakable, 100% recyclable polyurethane, with smooth surfaces, edges and corners to prevent injuries.
• Resistant to oil, acids, solvents and petrol, for indoor and outdoor use.
• Temperature resistance -30°C to +60°C; shore A hardness 88 ± 4.
• Fire resistance class B2 (DIN 4102); TÜV SÜD certified.
• Maximum vehicle speed 5mph.
• Made in Germany. Five-year warranty.

• 700mm L x 783mm W x 139mm H
• Channels: 2 x 120mm x 113mm, 2 x 33mm x 50mm
• Weight: 30.5kg

• At 139mm high the protector is quite tall, so check your vehicle has enough ground clearance.
• Accessories such as curved sections and end caps are available to fit the protector to your area.
• Protects low-voltage cables up to 500V (such as communication, control and power-supply cables) as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
• Easy to clean with water or even a steam jet cleaner. Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not become slippery.
• Pictures are for illustration only; the actual product may vary due to product improvements.
