Lightweight Aluminium Container & Kerb Ramps (Pair) – 500mm or 800mm L x 215mm W, 1250kg
Not sure it suits your forklift?
Send us your container height and forklift weight — we'll confirm the right ramp before you order.
Overview

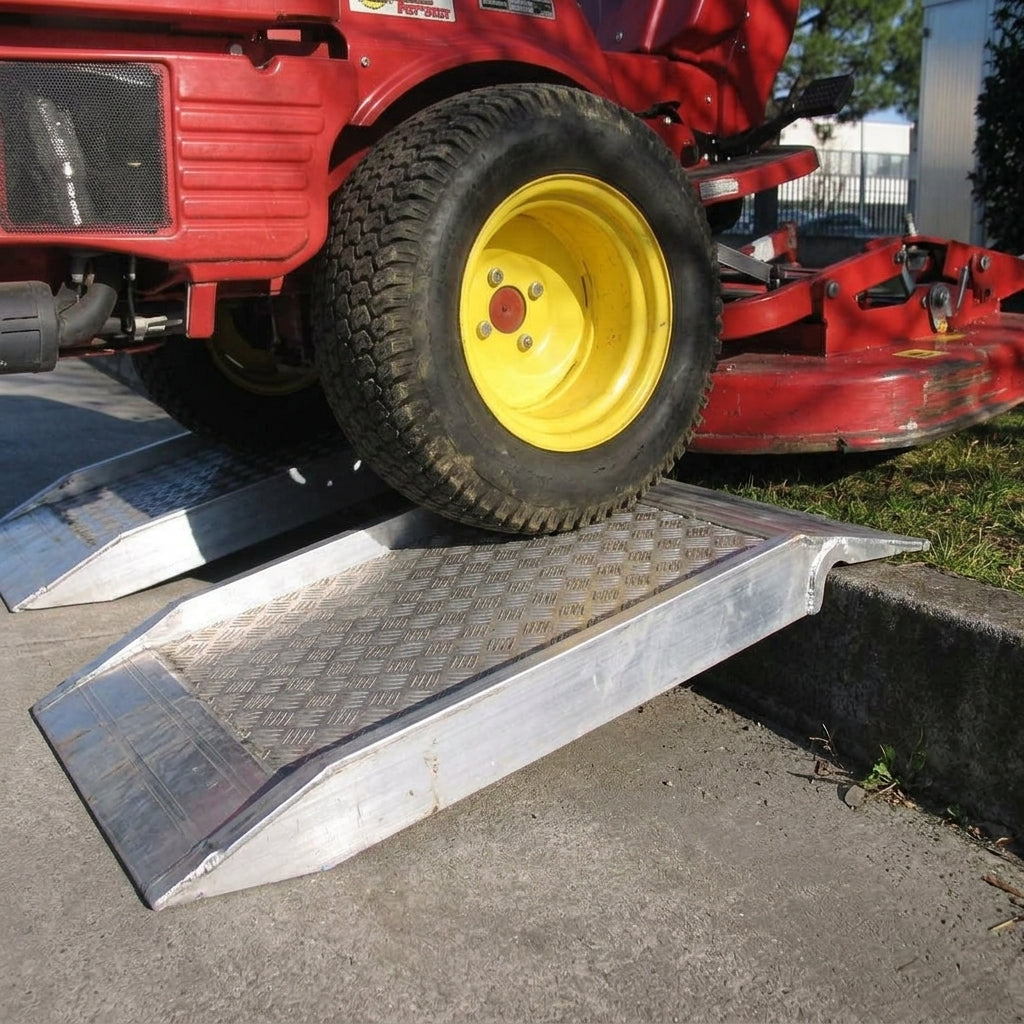

A pair of lightweight aluminium ramps that bridge the gap between the ground and a kerb or ground-level shipping container. Rated to 1,250kg across the pair, they let you load cars, forklifts, ride-on mowers, quad bikes and light machinery on rubber wheels or tracks over heights up to 180mm, improving efficiency, cutting manual handling and protecting vehicles from damage. Built for professional use in warehouses, industrial estates, construction sites and more.
Specifications
| Min - Max Load Height | 120mm - 150mm |
|---|---|
| Length Options | 500mm L x 215mm W |
| Height of Ramps Profile (mm) | 40 |
| Width (mm) | 215 |
| Minimum Track Width (mm) | 150 |
| Maximum Track Width (mm) | 220 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 1250 |
| Two Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
Features
- Curved rest-on connection (default) with a pre-drilled hole and supplied pin to hold the ramps in place during loading; four connection options are available in total.
- Angled foot, precision cut for the load height, for a smooth transition from the ground and a secure footing.
- Anti-slip, high-traction surface for grip while loading.
- Extremely low 40mm profile with no edges, giving more flexibility and helping low-clearance vehicles.
- Track width from 150mm to 220mm.
- Lightweight and portable at 3–4kg per ramp, so one person can lift them into place, helping with manual handling requirements. Line them up with the wheels and start loading.
- Two-year warranty.
Custom Solutions
Made in Italy and TÜV certified. Custom options include custom-cut ramps and load heights, wider or narrower ramps, edges, nylon grab handles, alternative connections and a smoother gradient for very low-clearance items such as scissor lifts. Bespoke quotes are available on request.
Good to Know
- Not suitable for the solid wheels found on road-surfacing machines; machines on steel tracks need dedicated industrial ramps.
- The foot is cut to sit securely within the stated load-height range; using the ramps lower or higher than this can reduce stability and capacity.
- Check that your vehicle has enough ground clearance to climb the ramps.
- A pair suits forklifts, cars and light machinery; if you also load pallet trucks, cages or equipment with a central wheel, a single wide ramp may suit better.
- For a custom quote, have ready your load height (the vertical height from the ground to where the ramp will rest), what you are loading, its maximum weight, and the vehicle data sheet for low-clearance items.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
