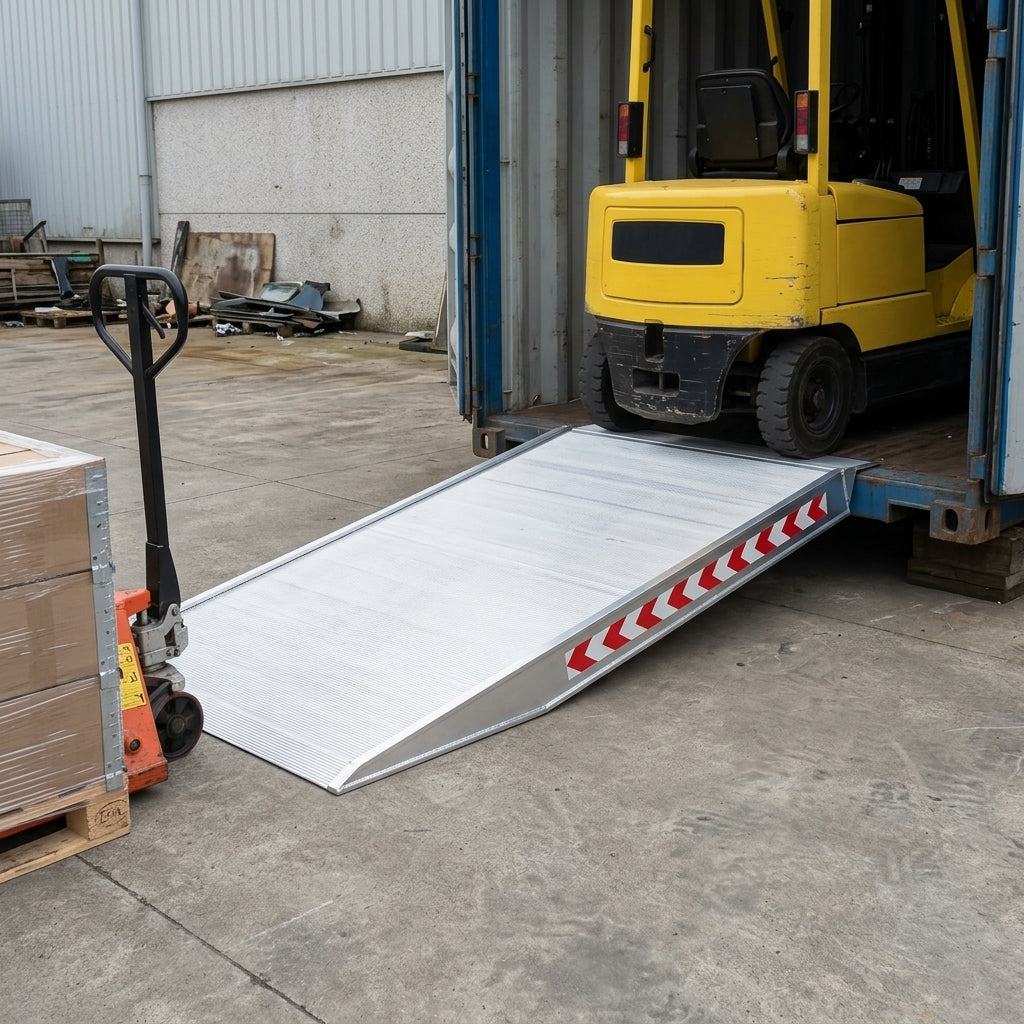

Aluminium Container Ramps (Pair) – 1250mm L x 510mm W, 150mm Profile, 7500kg Capacity

A shorter version of the 150mm-profile heavy-duty range, this pair of aluminium container ramps is made for loading forklifts, plant machinery and other machines on rubber tracks or rubber wheels into or out of containers, up steps and kerbs and over other low obstacles. Each ramp measures 1250mm L x 510mm W with a 150mm profile thickness, and the pair carries up to 7500kg. Built for professional use, they make loading easy and safe at ground-level shipping containers, in warehouses, on industrial estates and more. The price and capacity are for the pair.

• Each ramp is 1250mm L x 510mm W x 150mm and weighs 20.5kg (41kg per pair); light enough to carry, they simply rest in place when needed.
• 7500kg capacity across the pair, suitable for large vehicles, heavy machinery and equipment.
• The foot is precision cut for load heights of 220mm to 260mm, so the ramps sit securely on the ground and give a smooth, safe move from ground level onto the ramp.

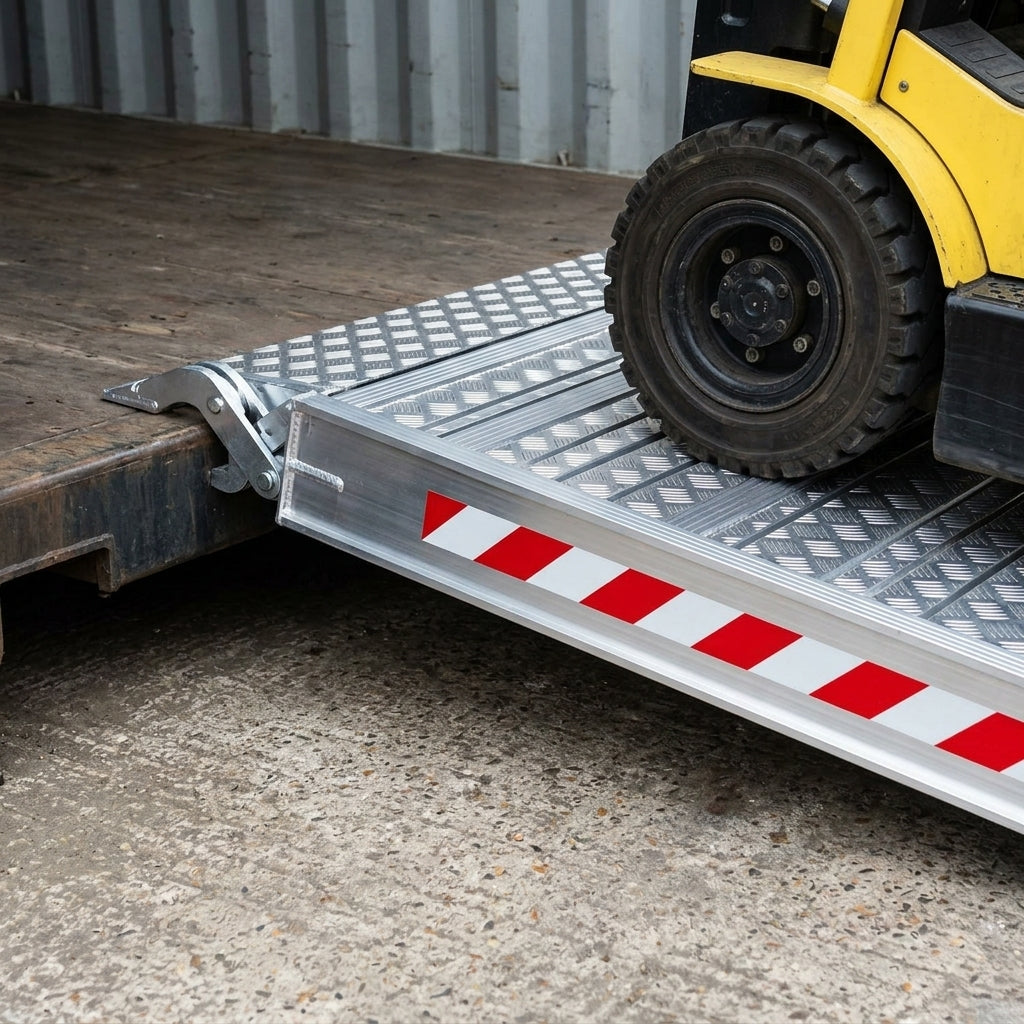

• Secure connection: the curved rest-on connection has a pre-drilled hole and a supplied pin to hold the ramps in place during loading.
• Smooth entry: an angled foot gives a seamless transition onto the ramp.
• High-traction anti-slip surface for maximum grip and safety while loading.
• No side edges, giving more flexibility when loading.
• Easy to use: line the ramps up with the wheels or tracks of the vehicle or machine and start loading.
• Made from lightweight aluminium in Italy (European made) and fully TÜV certified.
• Two-year warranty.

• Four connection options are available; the rest-on connection is supplied as standard.
• Custom load heights are available, and the ramps can be made to suit your needs: wider or narrower ramps, edges on the ramp, or a gentler gradient for items with very low ground clearance such as scissor lifts. Quotes for bespoke ramps are available on request.
• For a custom pair, you will need to supply your load height (the vertical height from the ground to where the ramp will rest), what you are loading and its maximum weight. For low-clearance items, the vehicle data sheet is also needed.

• Staying in place: along with the pinned connection, the angled foot grips the ground and the ramp's own weight and gradient help keep it steady.
• Load height range: using the ramps below or above the stated load height range affects how they sit and reduces their stability and capacity.
• Pair or single wide ramp? A pair is a lightweight, portable choice for forklifts, cars and light machinery. For pallet trucks, cages or equipment with a central wheel (such as 3-wheel counterbalance forklifts), a single full-width ramp is the better choice.
• Very low clearance: for machinery such as scissor lifts or very low cars, check that the vehicle can safely climb the ramp before ordering, as a custom solution may be needed.
• Not suitable for the solid wheels found on road surfacing machines; industrial steel-track ramps are needed for that kind of machinery.
• Product images are for illustration only; the actual product may differ slightly due to product improvements.
