Aluminium Car & Light Plant Loading Ramps (Pair) – 2500mm L x 360mm W x 100mm Profile, 3800kg

A pair of aluminium loading ramps, 2500mm long x 360mm wide with a 100mm profile thickness. Rated to 3,800kg per pair, they are ideal as car ramps or lightweight plant ramps. Custom-built sizes are available on request.

• Capacity and price are for the pair.
• Minimum track or wheel width 200mm (maximum 280mm).
• Designed for use at a 30% gradient.
• The foot of each ramp is cut to suit the load height for a smooth entry onto the ramp.
• Non-slip ramp surface.
• Designed for loading tracked plant machinery and vehicles such as diggers, tractors and excavators, and suitable for commercial use.
• Available with or without side edges – supplied without edges as standard.
• Four connection options are available. The standard rest-on connection with a pin is a popular choice for flatbed vehicles and tipper trucks; for beaver tail trailers, a hook connection is normally recommended.
• Custom load heights available, and quotes for bespoke ramps can be provided on request.
• Fully TÜV certified. Made in Europe.
• Two-year warranty.

• Not suitable for solid wheels, such as those on road surfacing machines – steel-track industrial ramps are the right choice for that type of machinery.

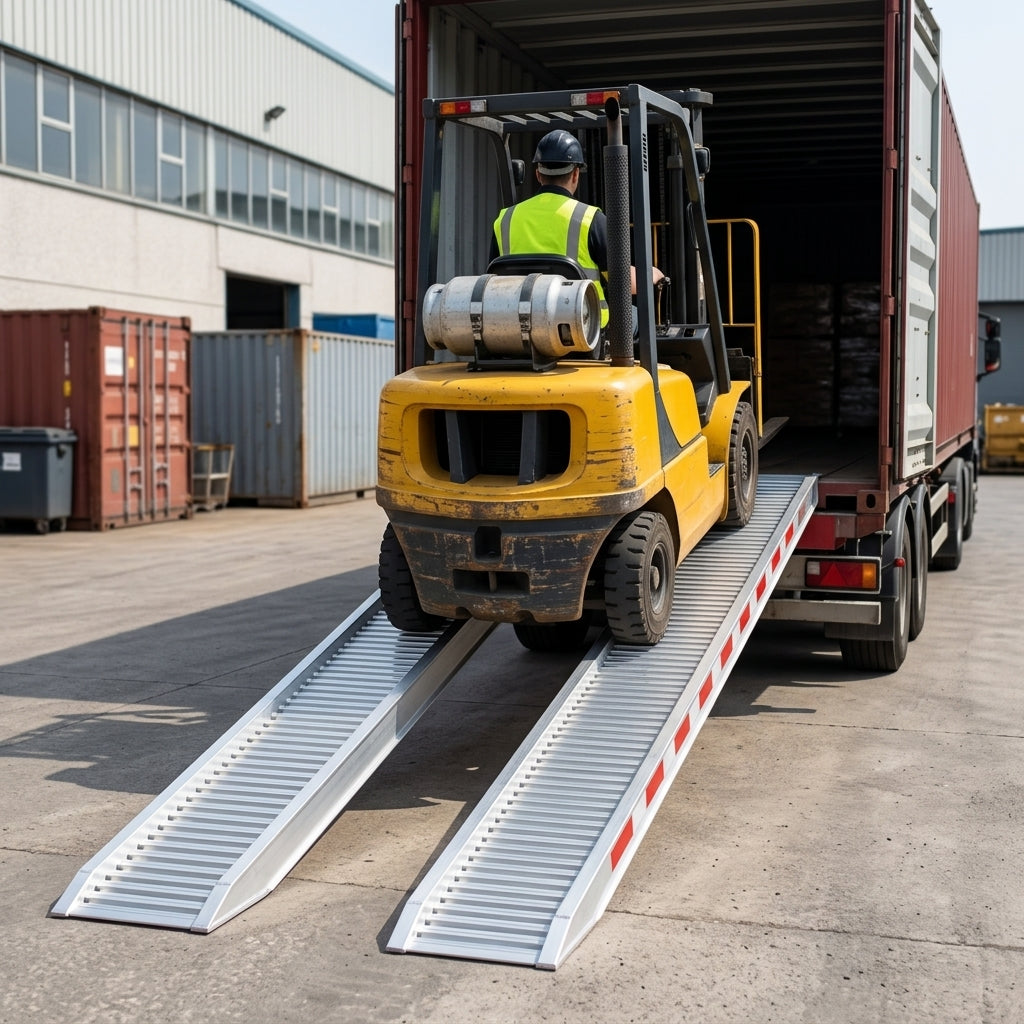

• The 30% gradient is generally too steep for low-clearance cars, forklifts and scissor lifts – car ramps or container ramps are better suited to these, and custom solutions are available.
• The stated maximum capacities only apply to vehicles whose weight is evenly distributed. For vehicles where this is not the case, please ask us for advice before ordering.
• Capacity depends on wheelbase: 2,500kg at 1000mm, 3,020kg at 1250mm and 3,800kg at 1500mm.
• Images are for illustration only; the actual product may vary slightly due to product improvements.

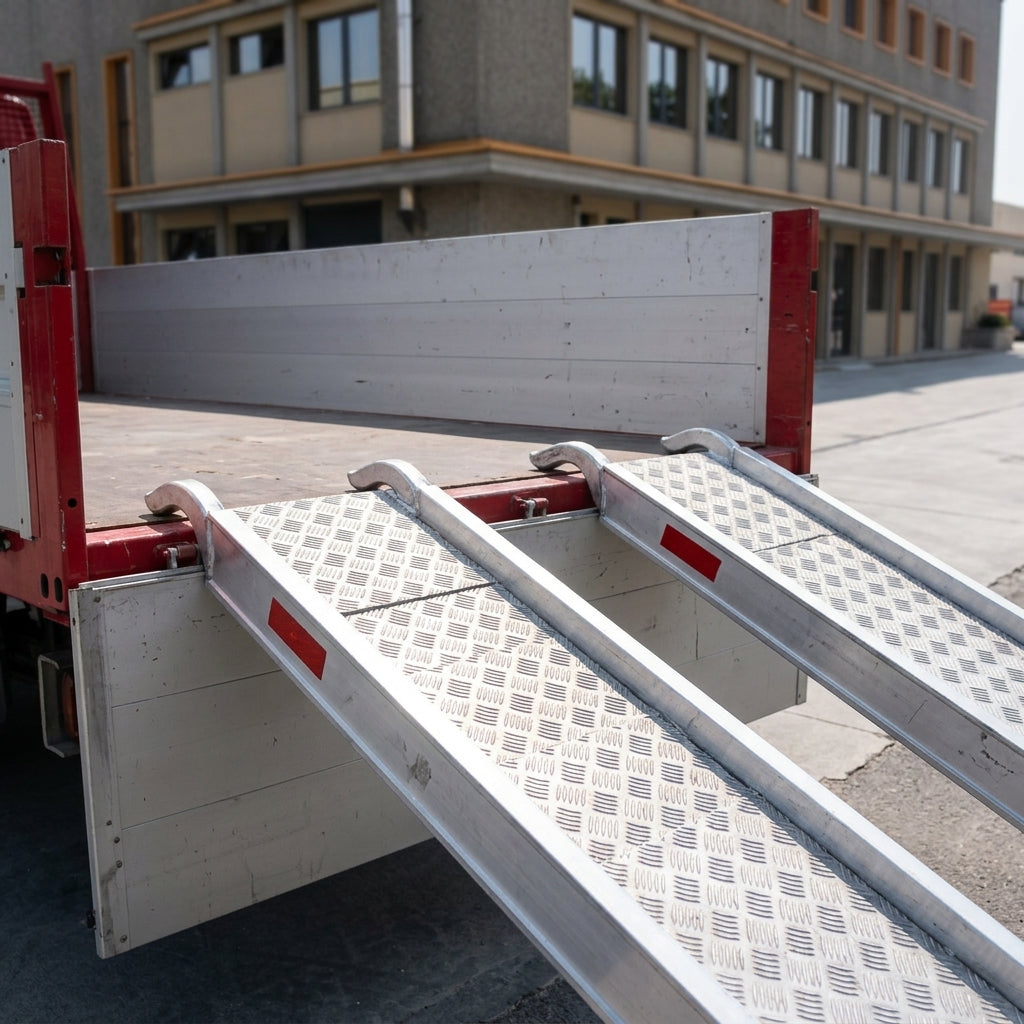

• Supplied as standard with a curved rest-on connection with a pre-drilled hole for securing the ramps to the vehicle. If you need an alternative, such as a hook connection, just let us know after you order.
• The angled foot keeps the ramp on the ground, while the ramp's own weight and gradient help hold it firmly in place.

• Measure the vertical height from the ground to where the ramp will rest on your vehicle – this is your load height – and check it falls within the minimum and maximum load heights in the details below.
• For items with low ground clearance, check suitability with us before ordering.
• For a custom pair we need your load height, details of what you are loading and its maximum weight; for low-clearance items, please also provide the vehicle data sheet.
