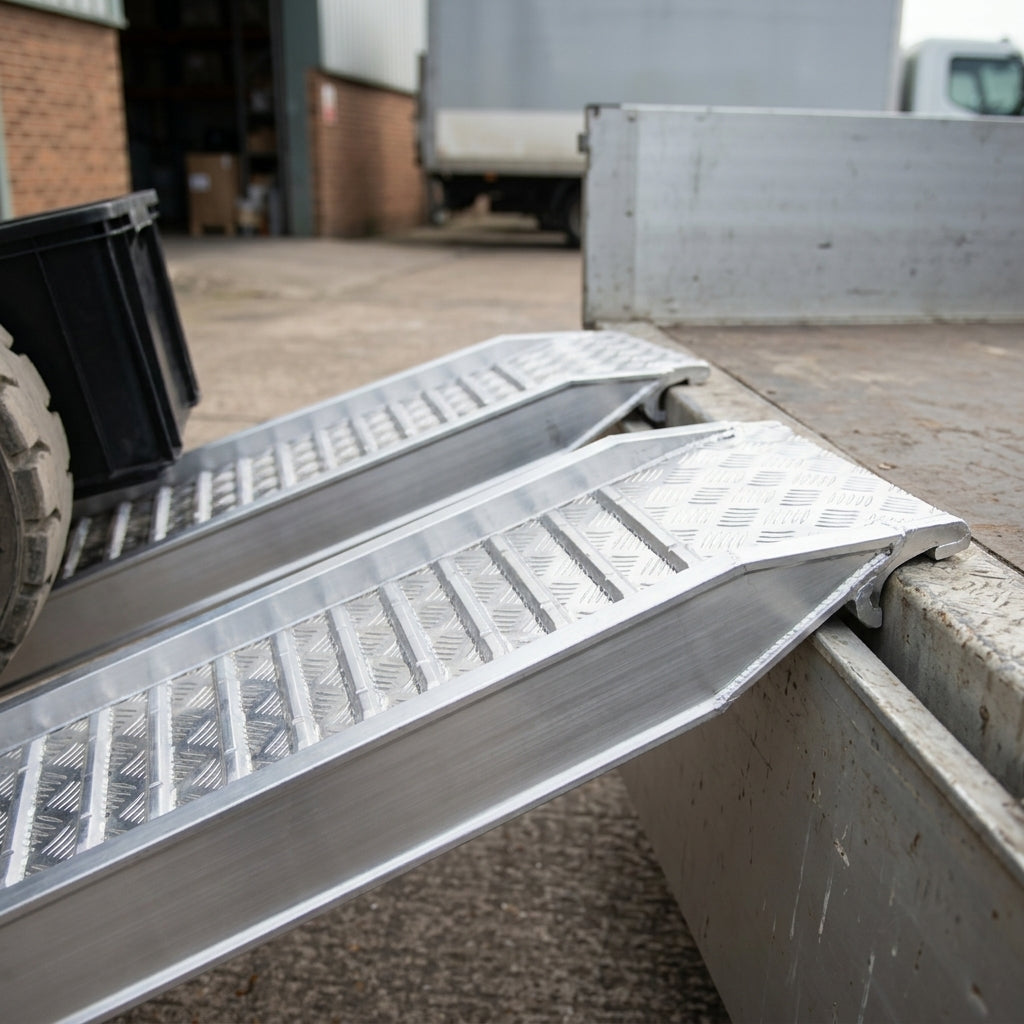

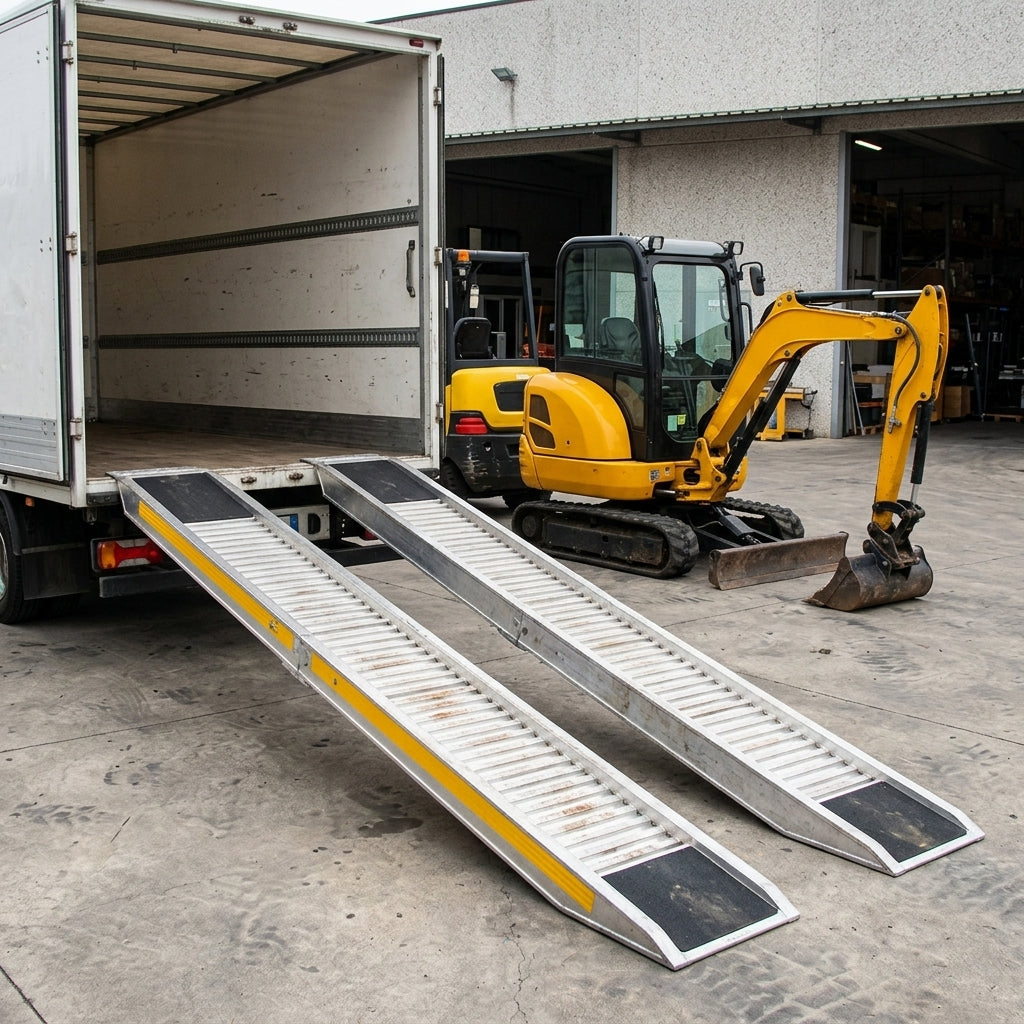

Aluminium Plant & Mini Digger Loading Ramps (Pair) – 2500mm L x 360mm W x 115mm Profile, 5000kg

A best-selling pair of aluminium plant ramps, 2500mm long x 360mm wide with a 115mm profile thickness. Rated to 5,000kg per pair, they are ideal as plant ramps and mini digger ramps for loading tracked machinery and vehicles such as diggers, tractors, excavators and ride-on mowers. Built for professional use, they are popular in the construction and landscaping industries.

• Capacity and price are for the pair.
• Minimum track or wheel width 200mm (maximum 280mm).
• Not designed for use above a 30% gradient.
• Non-slip aluminium ramp surface.
• The foot of each ramp is cut to suit the load height for a smooth entry onto the ramp.
• Available with or without side edges – supplied without edges as standard.
• Four connection options are available. The standard rest-on connection with a pin is a popular choice for flatbed vehicles and tipper trucks; for beaver tail trailers, a hook connection is normally recommended.
• Customisations available, including custom load heights, custom sizes and nylon handles. Quotes for bespoke ramps can be provided on request.
• Made in Europe. Two-year warranty.

• Not suitable for solid wheels, such as those on road surfacing machines – steel-track industrial ramps are the right choice for that type of machinery.
• The stated maximum capacities only apply to vehicles whose weight is evenly distributed. For vehicles where this is not the case, please ask us for advice before ordering.
• Capacity depends on wheelbase: 3,000kg at 1000mm, 4,500kg at 1500mm and 5,000kg at 2000mm.
• Images are for illustration only; the actual product may vary slightly due to product improvements.

• Supplied as standard with a curved rest-on connection with a pre-drilled hole for securing the ramps to the vehicle. If you need an alternative, such as a hook connection, just let us know after you order.
• The angled foot keeps the ramp on the ground, while the ramp's own weight and gradient help hold it firmly in place.

• Measure the vertical height from the ground to where the ramp will rest on your vehicle – this is your load height – and check it falls within the minimum and maximum load heights in the details below.
• For items with low ground clearance, check suitability with us before ordering.
• For a custom pair we need your load height, details of what you are loading and its maximum weight; for low-clearance items, please also provide the vehicle data sheet.
