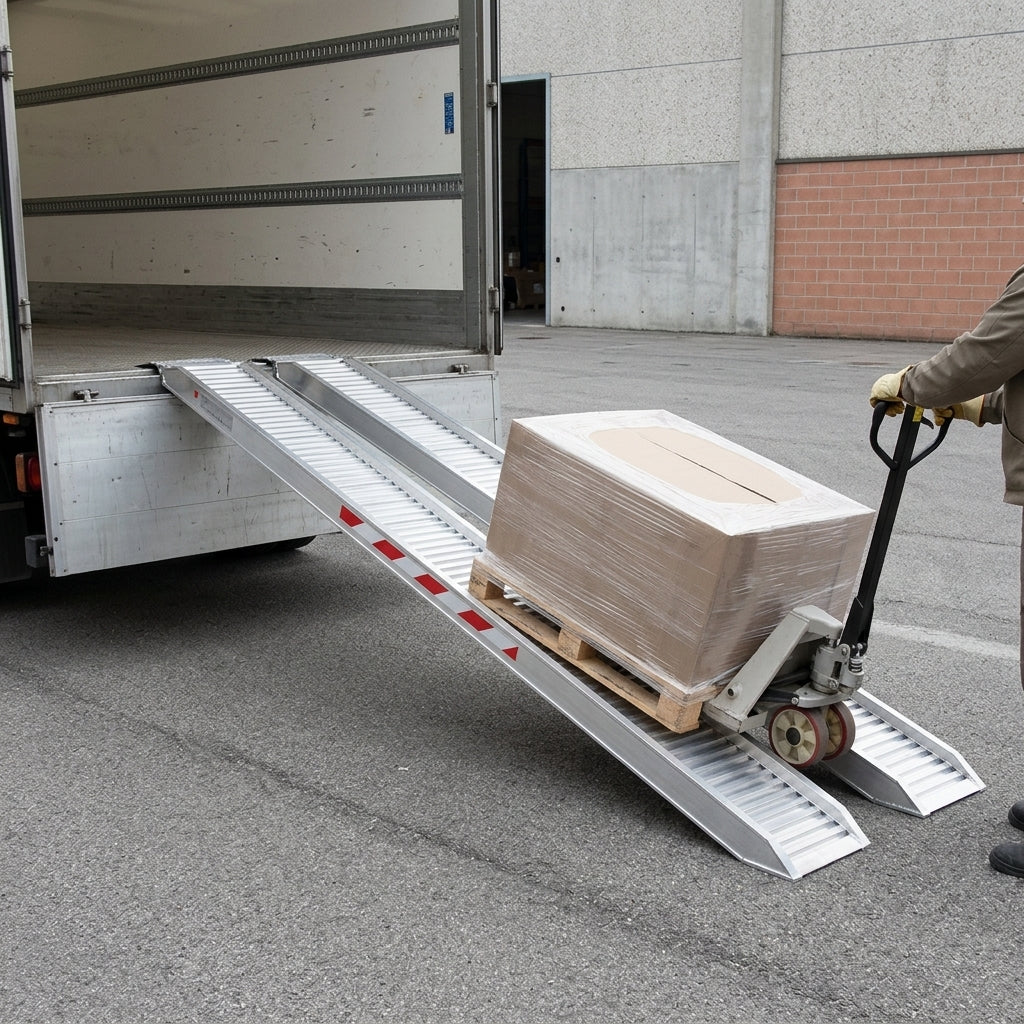

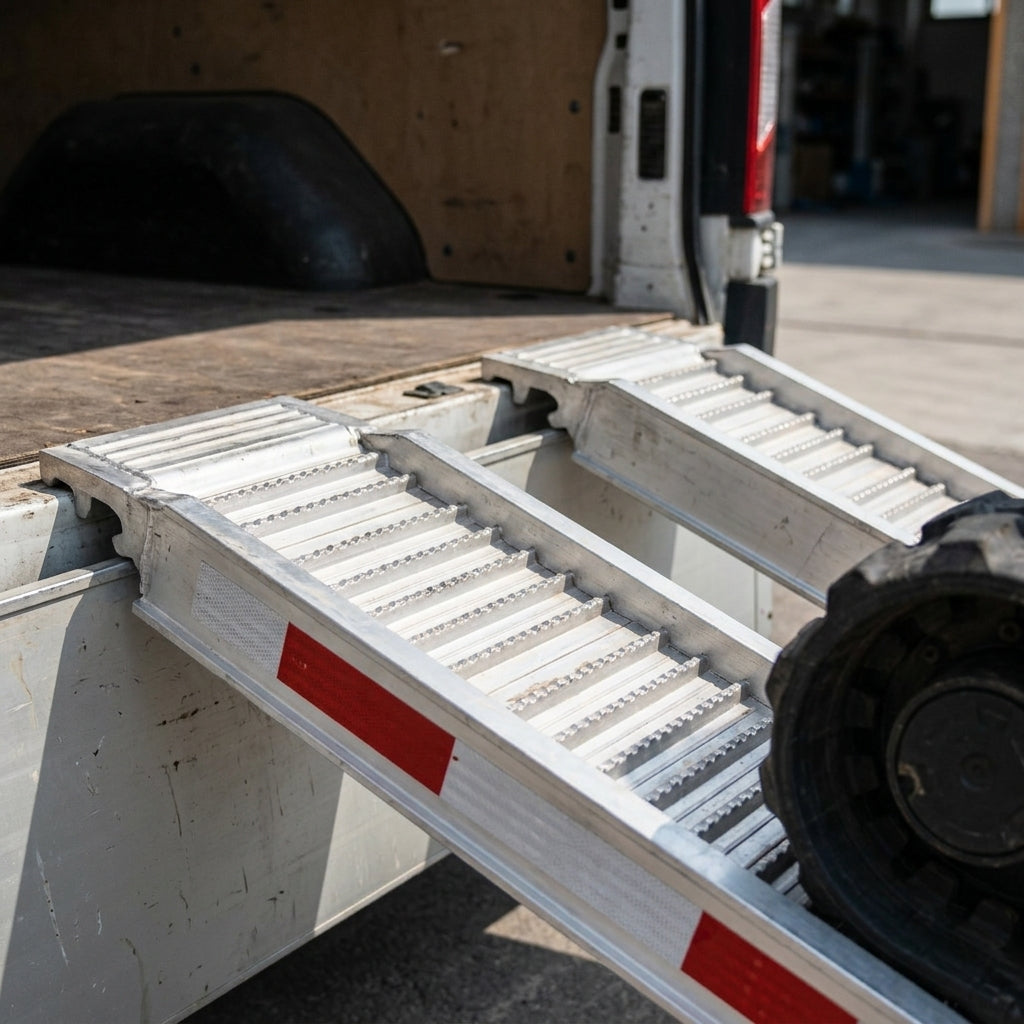

Extra Wide Aluminium Car & Plant Loading Ramps (Pair) – 2500mm L x 400mm W, 3,800kg Capacity

A pair of extra wide aluminium loading ramps, each 2500mm long and 400mm wide with a 100mm profile thickness. With a combined capacity of 3,800kg, they are ideal for cars and lightweight plant machinery. The price and capacity shown are for the pair.

• Supplied without side edges as standard; versions with edges are also available.
• Four connection options are available; the standard fitting is a rest-on connection with a pin, a popular choice for flatbed vehicles and tipper trucks; a hook connection is normally recommended for beaver tail trailers.
• The curved rest-on connection has a pre-drilled hole so the ramps can be secured to the vehicle, and the angled foot keeps the base on the ground. The ramps’ own weight and gradient also help hold them firmly in place.
• Each ramp weighs 19kg (38kg per pair).

• Load height: 600mm to 750mm.
• To find your load height, measure the vertical distance from the ground to where the ramps will rest on your vehicle, then choose the length whose load height range covers it.
• Track/wheel width: minimum 200mm, maximum 320mm.
• Designed for use at a 30% gradient.
• Capacity by machine wheelbase: 2,500kg at 1000mm, 3,020kg at 1250mm, 3,800kg at 1500mm.
• The stated maximum capacities only apply when the vehicle’s weight is evenly distributed.

• Not suitable for machines with solid wheels, such as road surfacing machines; steel-tracked machinery needs a dedicated industrial ramp.
• The 30% gradient is generally too steep for low-clearance cars, forklifts and scissor lifts; a car ramp or container ramp is the better choice for those, or a custom solution can be made.
• Fully TÜV certified. Made in Europe. Easy to fit.
• Two-year warranty.
• Custom load heights and custom sizes are available, and quotes for bespoke ramps can be supplied on request.
• If you need a different connection type, such as a hook connection, this can be arranged after purchase.
• Built to order.
• Photos are for illustration only; the actual product may vary slightly due to product improvements.
