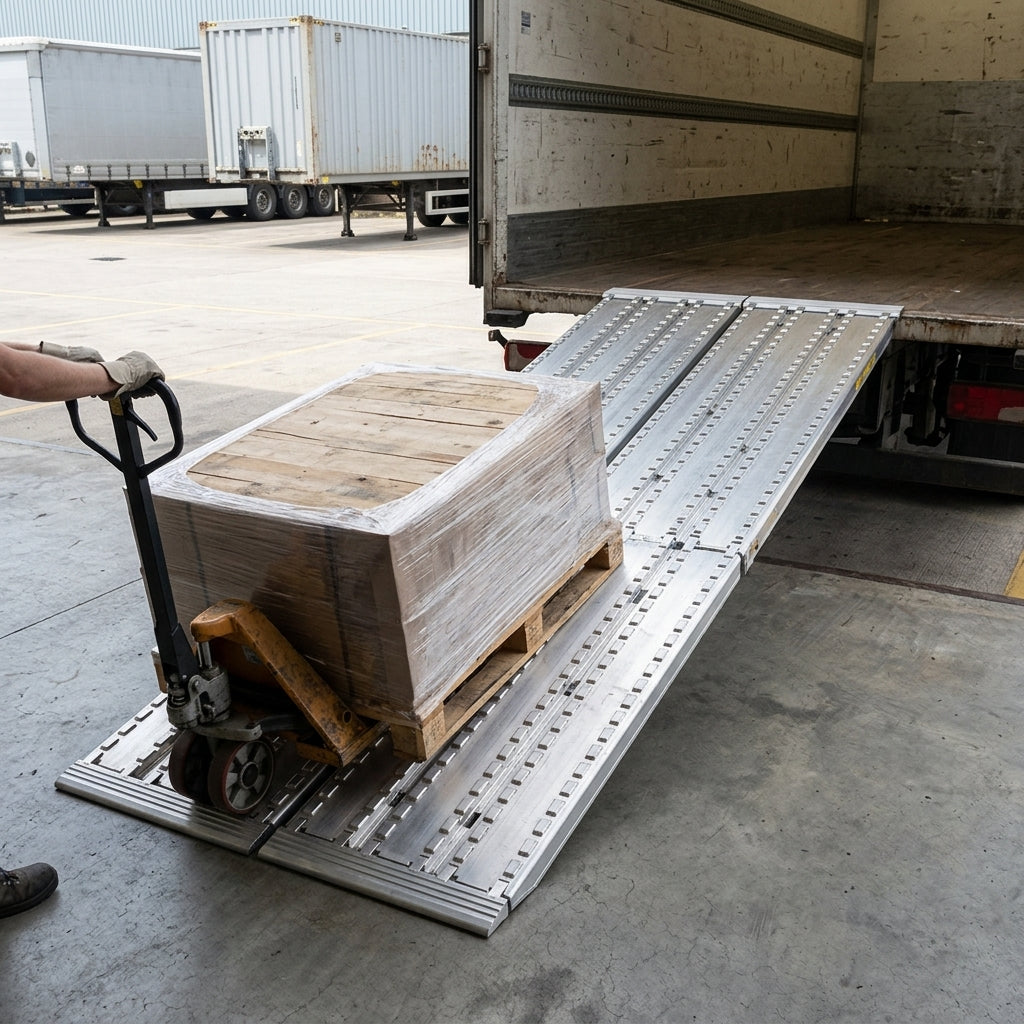

Heavy Duty Aluminium Loading Ramps for Steel Tracks (Pair) – 2500mm L x 600mm W, 48,000kg Capacity

A pair of our heaviest-duty aluminium loading ramps, made to carry steel-tracked vehicles and equipment. Each ramp measures 2500mm long x 600mm wide with a 130mm core profile, and together the pair is rated to 48,000kg. They are well suited to loading plant machinery, diggers and telehandlers, and to heavy industrial and commercial use. The price and capacity shown are for the pair.

• Flat top with no external welds.
• Surface milled in 50/50mm steps as standard for steel tracks; 25/30mm steps can be milled on request for machinery with solid rubber wheels.
• Available with a bottom hook or tube connection – your connection choice and specification are confirmed with you by email after you order.

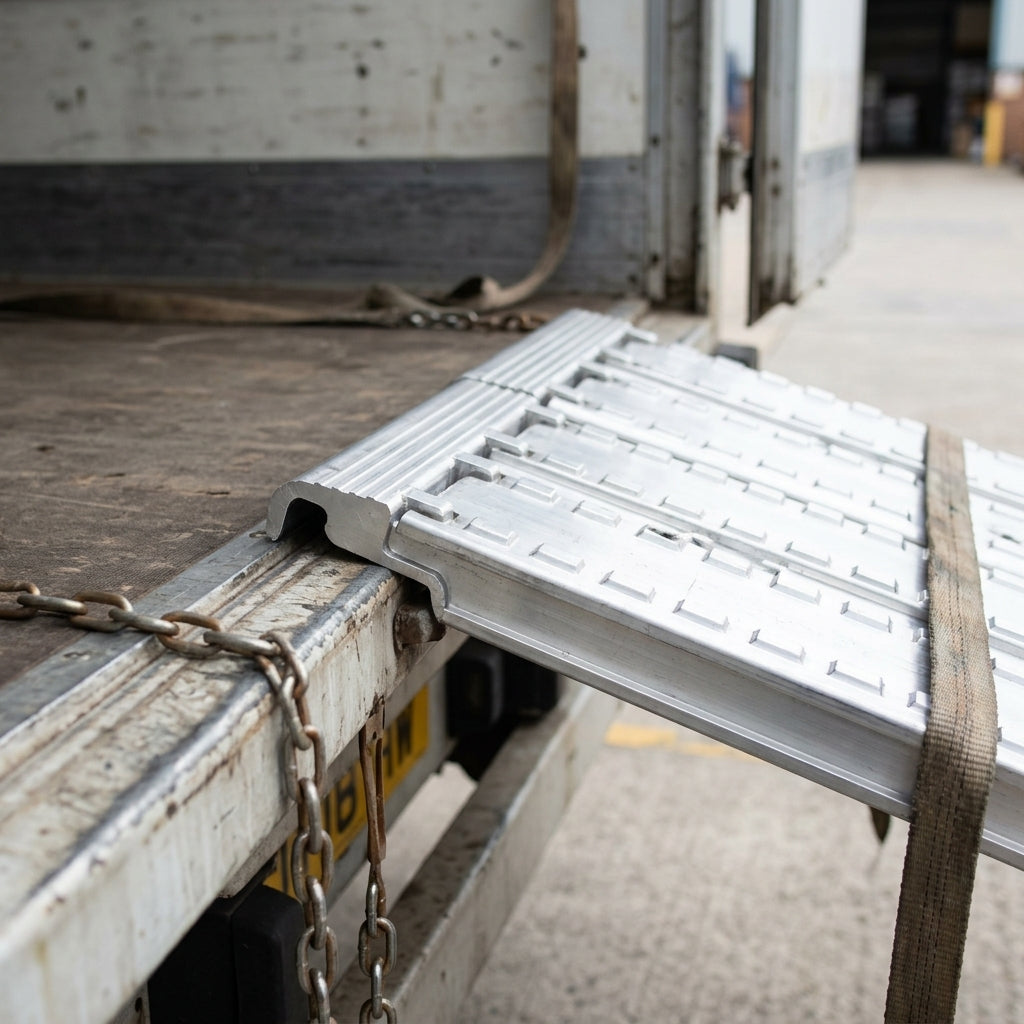

• Supplied with a carabiner clip and steel chain to secure the ramps to the loading bed.
• Fully TUV certified.
• European made and easy to fit.
• Two-year warranty.

• Size (each ramp): 2500mm L x 600mm W x 130mm profile height.
• Load height: 600mm minimum to 750mm maximum.
• Capacity (pair): 48,000kg – by wheelbase: 1500mm wheelbase 27,000kg, 1750mm wheelbase 34,000kg, 2000mm wheelbase 48,000kg.
• Weight: 192kg per pair (96kg per ramp).

• The stated maximum capacities only apply to vehicles whose weight is evenly distributed; seek advice before use with vehicles where this is not the case.
• Custom sizes, custom load heights and fully bespoke ramps can be quoted on request. For a quote we need your load height (the vertical height from the ground to where the ramp will rest), what you are loading and its maximum weight; for low-clearance items, please also provide the vehicle's data sheet.
• Images are for illustration only; the actual product may vary due to product improvements.
