3 Channel Cable Protector with Non-Slip Surface
3 Channel Cable Protector with Non-Slip Surface (view 2)
1 / 2

3-Channel Cable Protector – 1000mm L x 290mm W x 48mm H, 2,000kg, Black/Yellow Non-Slip (Pack of 5)

£1,560.00 incl. VAT · per pack
Need more width or reach? Compare other sizes ↓

Not sure which size you need?

Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.

Overview

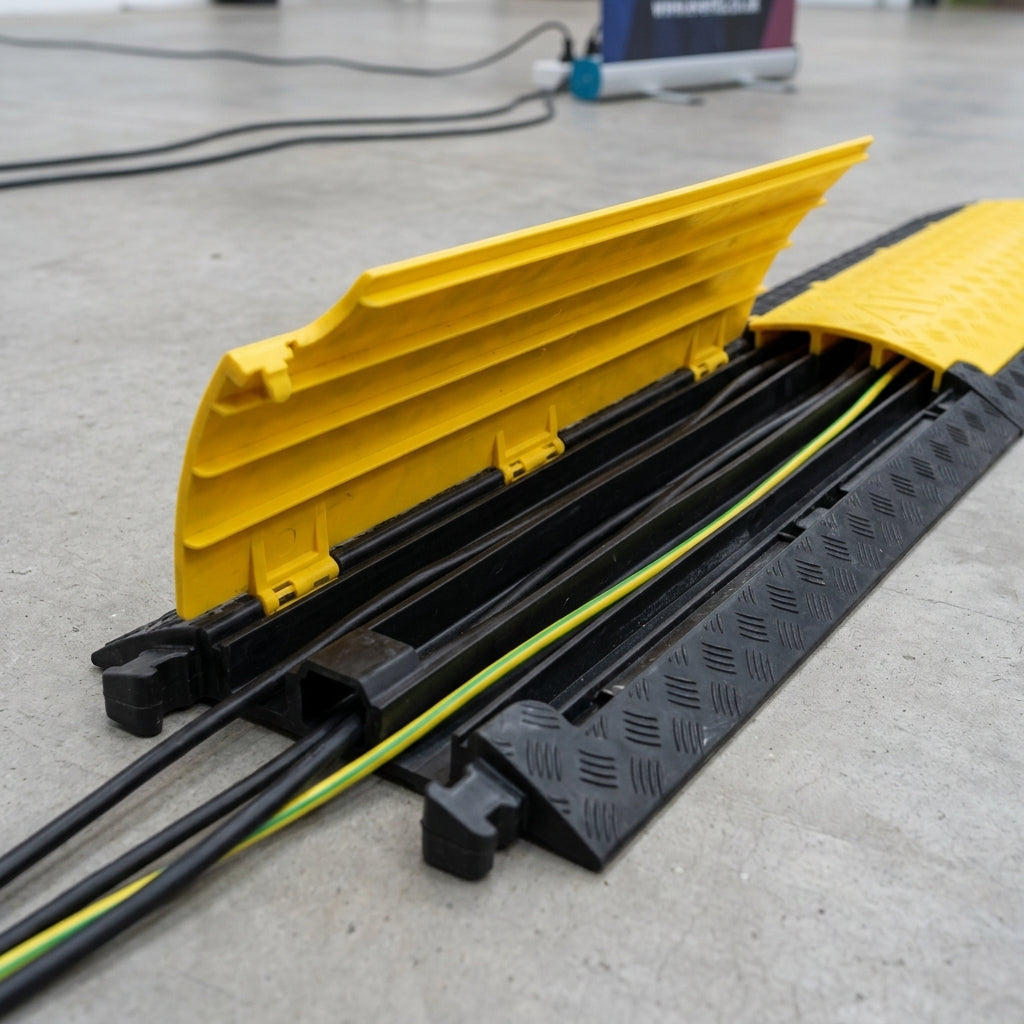

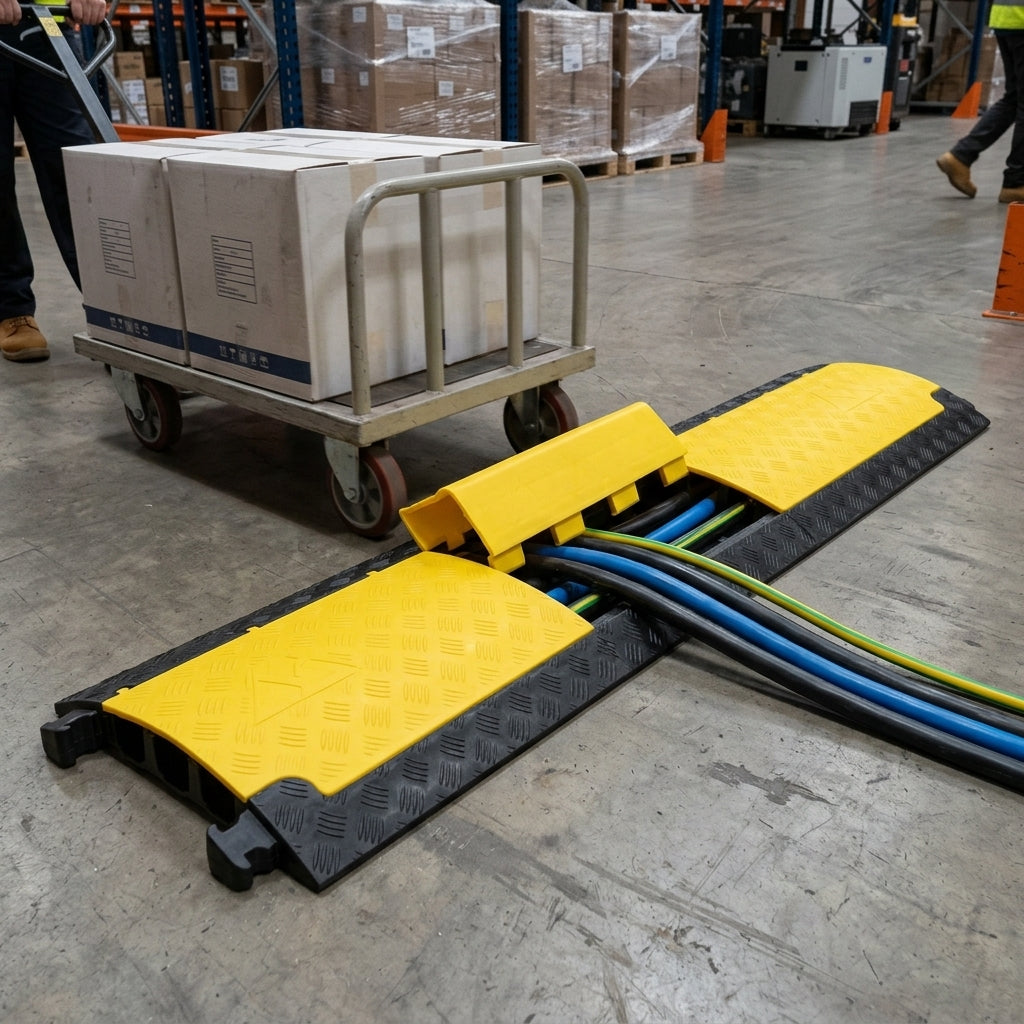

A lightweight 3-channel cable protector with a high-visibility black and yellow finish, made to protect cables from pedestrian traffic indoors and outdoors. It is a popular choice at events, trade shows and exhibitions, and is rated at 2,000kg per 20cm x 20cm and 4,000kg per axle. Suitable for pedestrians, trolleys and goods; not suitable for road traffic.

Specifications

SizePack of 5 – 1000mm L x 290mm W x 48mm H
Height (mm)48
Length (mm)1000
Width (mm)290
Channel Size (mm)1 channel 35 x 35 mm, 2 channels 35 x 30 mm
Capacity (kg)2,000kg / 20cm x 20cm
Five Years WarrantyYes
Easy to FitYes
Leave OutsideYes
Cable Protector ColorBlack/Yellow
No. Channels3
Capacity per Axle (kg)4,000
Operating Temperature (deg. F)-22 to +140
Speedlimit (mph)5
Colour OptionsYellow

Features

  • 3 channels: 1 channel 35mm x 35mm and 2 channels 35mm x 30mm, for cables or wires up to 35mm in diameter.
  • Chequered, high-visibility non-slip surface and a non-slip base that keeps it in place on a variety of surfaces.
  • Interlocking design: connect several units to cover your required cable length.
  • Quick to set up: rest it on the floor, open the lid and lay in the cables. The patented self-cleaning lid hinge locks securely when closed.
  • Weighs under 6kg, so one person can lift and move it into position.
  • Suitable for internal and external use and can be left outside.

Build Quality & Safety

  • Made from non-breakable, 100% recyclable polyurethane.
  • Resistant to oils, acids, petrol and solvents.
  • Temperature resistant from -30°C to +60°C, with a shore A hardness of 88 ± 4.
  • Smooth surfaces, edges and corners help prevent injuries.
  • Fire protection class E to DIN EN 13501-1 and TÜV SÜD certified.
  • Protects low-voltage cables up to 500V, such as communication, control and power-supply cables, as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
  • Made in Germany. Five-year warranty.

Care & Maintenance

  • Easy to clean, even with a steam jet cleaner; little maintenance is needed thanks to the self-cleaning lid.
  • Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with a silicone spray. Wipe off any excess afterwards to avoid a slip risk.

Good to Know

  • Sold in packs of 5 – the price shown is for a pack of 5 units.
  • Also available in all black.
  • Accessories are available to fit the run to your area, including 45° left and 45° right curves and female and male end ramps.
  • Pictures are for illustration only; the actual product may vary due to product improvements.
