Aluminium Container Ramps (Pair) – 495mm or 795mm L x 300mm W, 65mm Profile, 3000kg
Not sure it suits your forklift?
Send us your container height and forklift weight — we'll confirm the right ramp before you order.
Overview

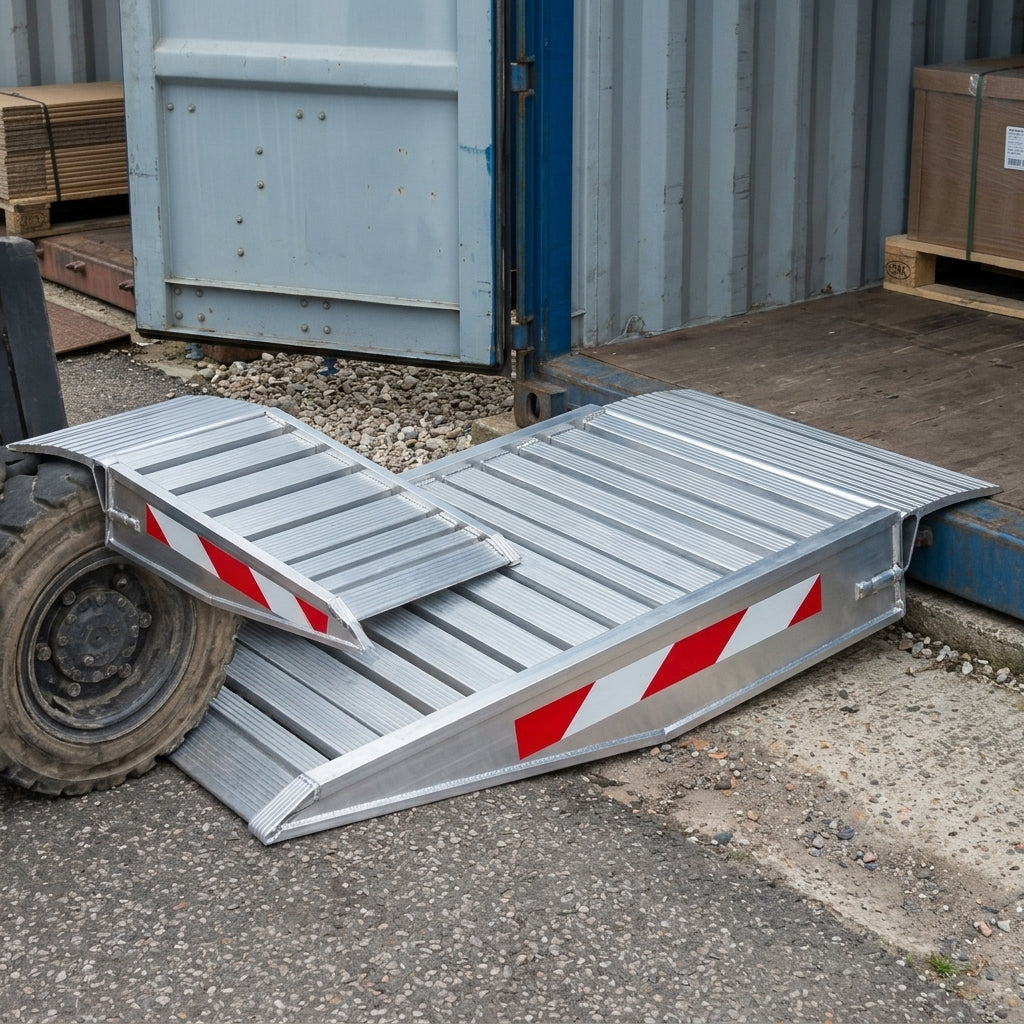

A pair of aluminium container ramps for loading cars, ride-on mowers, quad bikes, forklifts and light to medium machinery on rubber wheels or tracks into and out of containers, over kerbs, steps and other low obstacles up to 180mm. Rated to 3,000kg across the pair, they help businesses load heavy vehicles safely without damage, and are popular in construction, landscaping, gardening, logistics, warehousing and automotive work, for example storing cars and mowers in containers or loading ground-level shipping containers by forklift.
Specifications
| Min - Max Load Height | 120mm - 150mm |
|---|---|
| Length Options | 495mm L x 300mm W |
| Height of Ramps Profile (mm) | 65 |
| Width (mm) | 300 |
| Minimum Track Width (mm) | 150 |
| Maximum Track Width (mm) | 220 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 3000 |
| Two Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
Features

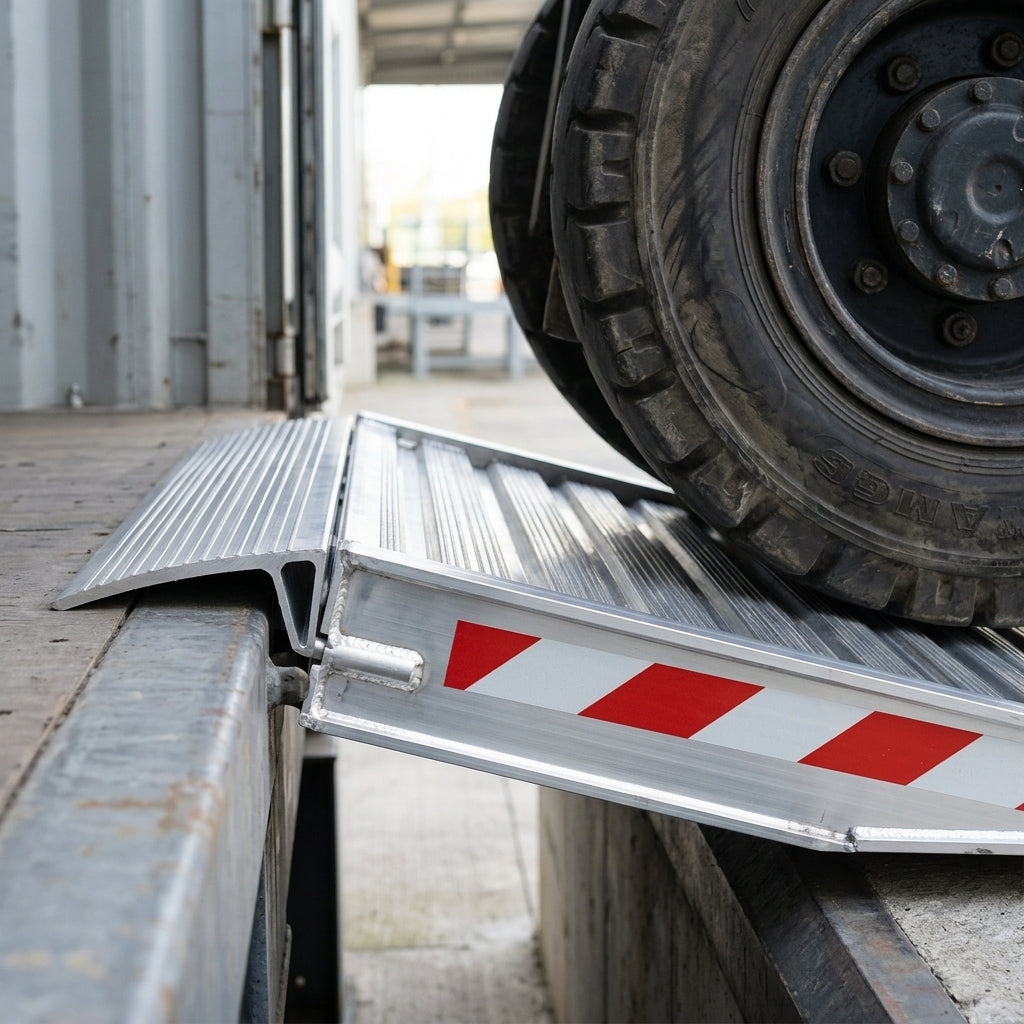

- Curved rest-on connection (default) with a pre-drilled hole and supplied pin to hold the ramps in place during loading; four connection options are available in total.
- Angled foot, precision cut for the stated load height, for a smooth entry from the ground and a secure footing.
- High-traction surface for grip while loading.
- No edges, so low-clearance vehicles do not catch on the ramps.
- Track width from 150mm to 220mm.
- Lightweight aluminium at 3.5–5kg per ramp; one person can lift and move them, and they lie flat for storage.
- Two-year warranty.
Custom Solutions
Made in Italy and TÜV certified. Custom options include custom-cut ramps and load heights, wider or narrower ramps, edges, nylon grab handles, alternative connections and a smoother gradient for very low-clearance items such as scissor lifts. Bespoke quotes are available on request.
Good to Know
- Not suitable for the solid wheels found on road-surfacing machines; machines on steel tracks need dedicated industrial ramps.
- The foot is cut to sit securely within the stated load-height range; using the ramps lower or higher than this can reduce stability and capacity.
- Check that your vehicle has enough ground clearance to climb the ramps.
- A pair suits forklifts, cars and light machinery; if you also load pallet trucks, cages or equipment with a central wheel, a single wide ramp may suit better.
- For a custom quote, have ready your load height (the vertical height from the ground to where the ramp will rest), what you are loading, its maximum weight, and the vehicle data sheet for low-clearance items.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
