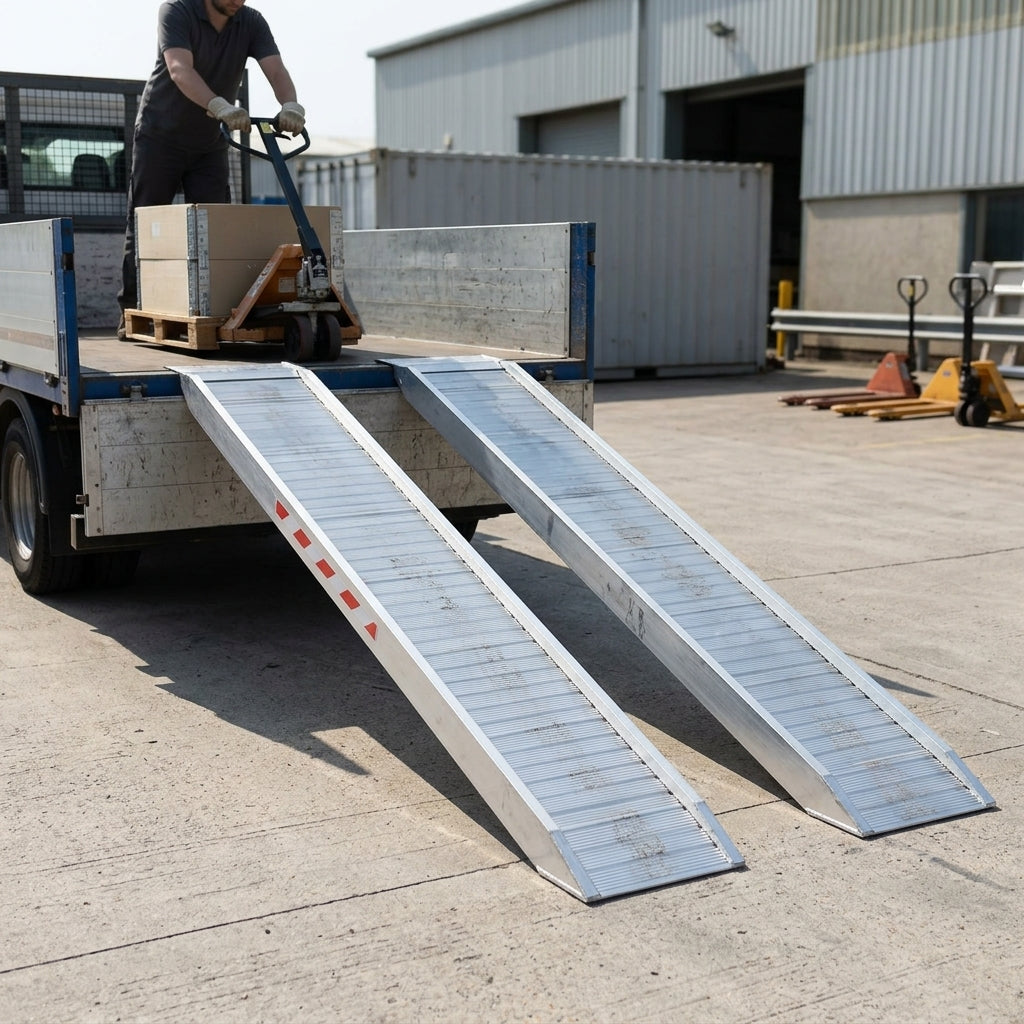

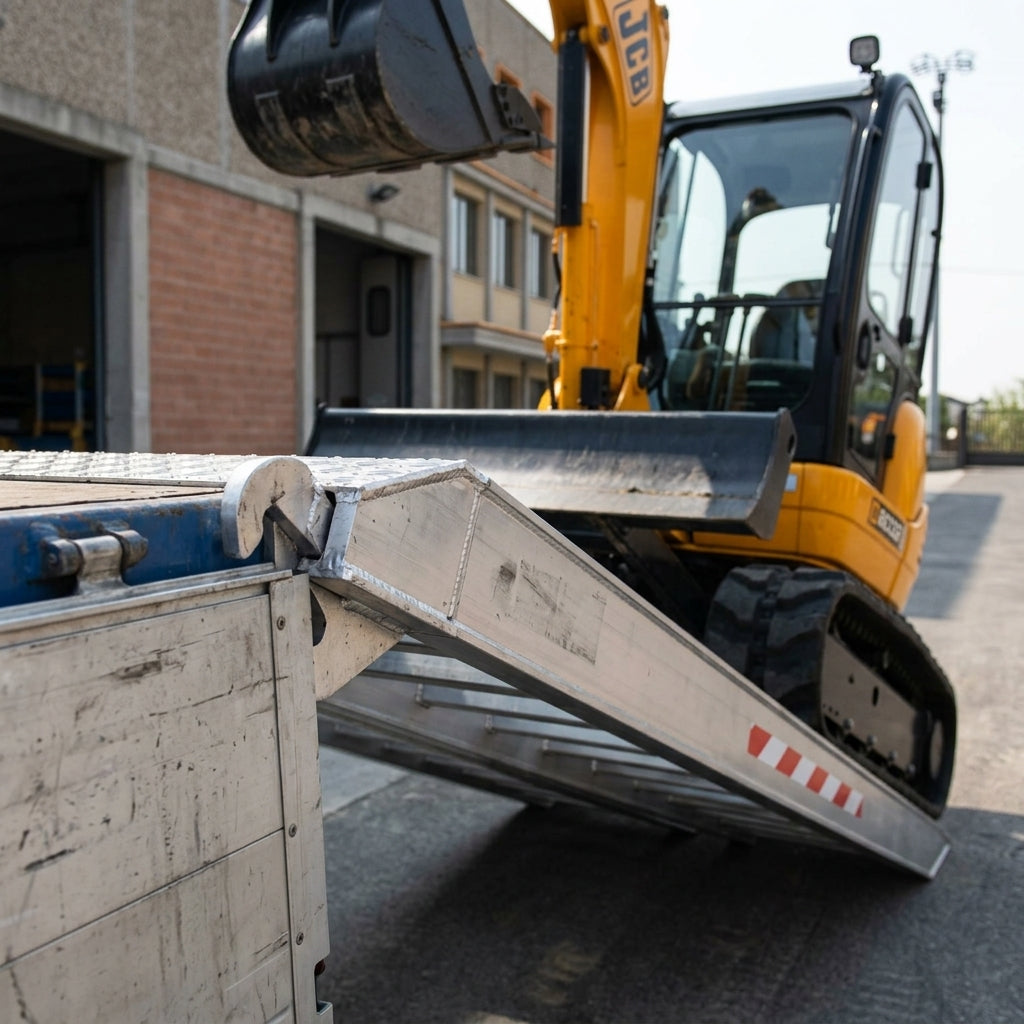

Medium to Heavy Duty Aluminium Plant Loading Ramps (Pair) – 3000mm L x 400mm W, 7,000kg Capacity

A pair of medium to heavy duty aluminium loading ramps, each 3000mm long and 400mm wide with a 140mm profile thickness. With a combined capacity of 7,000kg, they are ideal for plant machinery, diggers and tele-handlers. The price and capacity shown are for the pair.

• Made from durable aluminium that is lightweight and corrosion resistant.
• Non-slip loading surface for safe loading and unloading.
• Easy to store when not in use.
• Supplied without side edges as standard; versions with edges are also available.
• Four connection options are available; the standard fitting is a rest-on connection.
• The curved rest-on connection has a pre-drilled hole so the ramps can be secured to the vehicle, and the angled foot keeps the base on the ground. The ramps’ own weight and gradient also help hold them firmly in place.
• Each ramp weighs 32.5kg (65kg per pair).

• Load height: 750mm to 900mm.
• To find your load height, measure the vertical distance from the ground to where the ramps will rest on your vehicle, then choose the length whose load height range covers it.
• Track/wheel width: minimum 200mm, maximum 320mm.
• Designed for a maximum loading gradient of 30% – do not use them any steeper.
• Capacity by machine wheelbase: 4,155kg at 1000mm, 5,500kg at 1500mm, 7,000kg at 2000mm.
• The stated maximum capacities only apply when the vehicle’s weight is evenly distributed.

• Not suitable for machines with solid wheels, such as road surfacing machines; steel-tracked machinery needs a dedicated industrial ramp.
• Fully TÜV certified. Made in Europe. Easy to fit.
• Two-year warranty.
• Custom load heights and custom sizes are available, and quotes for bespoke ramps can be supplied on request.
• For a custom quote you will need your load height, details of what you are loading and its maximum weight; for low-clearance items, the vehicle’s data sheet.
• If you need a different connection type, such as a hook connection, this can be arranged after purchase.
• Photos are for illustration only; the actual product may vary slightly due to product improvements.
