3-Channel Cable Protector with Light-Tube Lid – 1000mm L x 290mm W x 48mm H, 2,000kg (Pack of 5)

£1,800.00 incl. VAT · per pack
Need more width or reach? Compare other sizes ↓

Not sure which size you need?

Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.

Overview

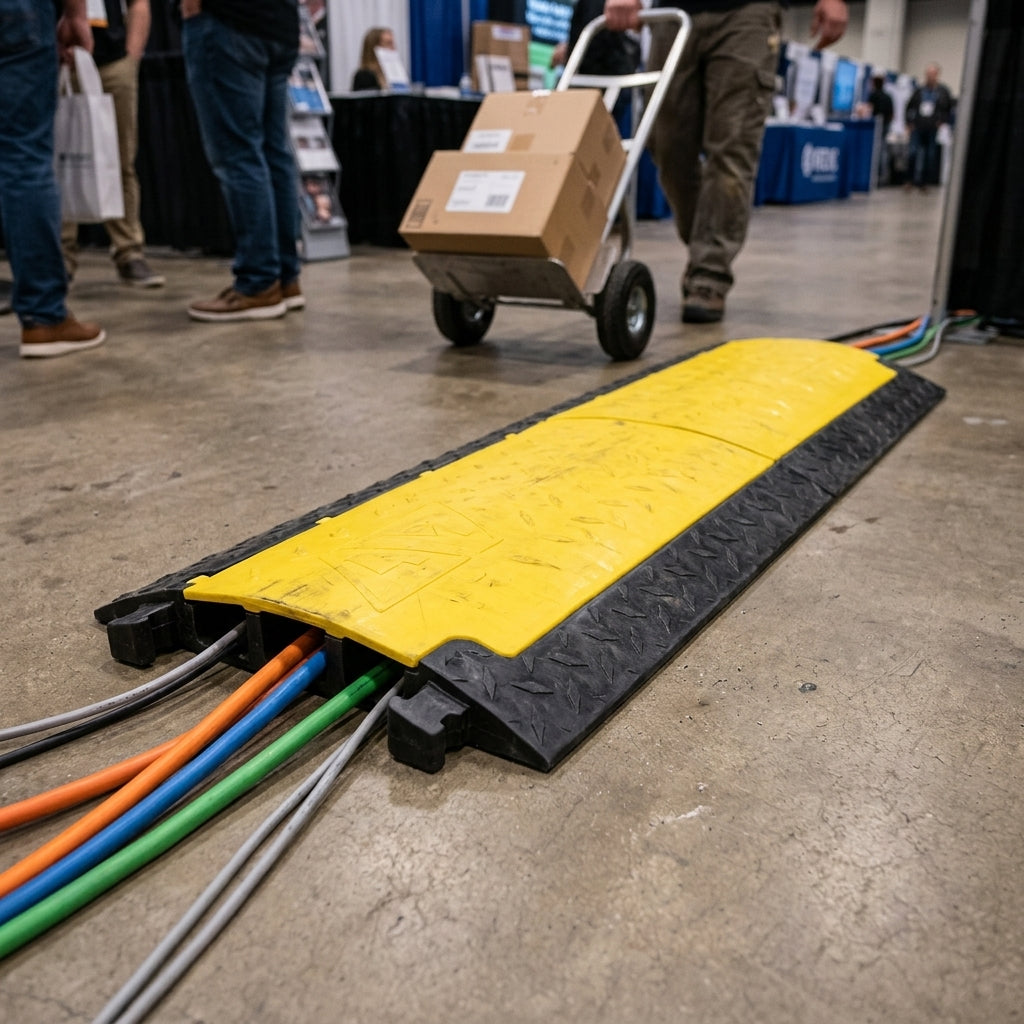

A lightweight 3-channel cable protector that protects up to three cables from foot traffic and reduces trip hazards, indoors and outdoors. Its highly transparent, yellow-tinted lid lets you insert LED light tubes, so it stays visible in the dark and in low light, making it ideal for events, studios, theatres and festivals. With a 2,000kg capacity, it suits pedestrians, trolleys and only occasional light vehicles; it is not designed for road or vehicle traffic.

Specifications

SizePack of 5 – 1000mm L x 290mm W x 48mm H
Height (mm)48
Length (mm)1000
Width (mm)290
Channel Size (mm)1 channel 35 x 35 mm, 2 channels 35 x 30 mm
Capacity (kg)2000
Weight (kg)5
Five Years WarrantyYes
Easy to FitYes
European MadeYes
Leave OutsideYes
Cable Protector ColorBlack and Yellow
No. Channels3
Colour OptionsTranslucent

Features

  • 3 channels: 1 channel 35mm x 35mm and 2 channels 35mm x 30mm.
  • Highly visible black and yellow design to reduce trip hazards.
  • Chequered, high-traction anti-slip surface and a non-slip base that stops it moving on a variety of floors.

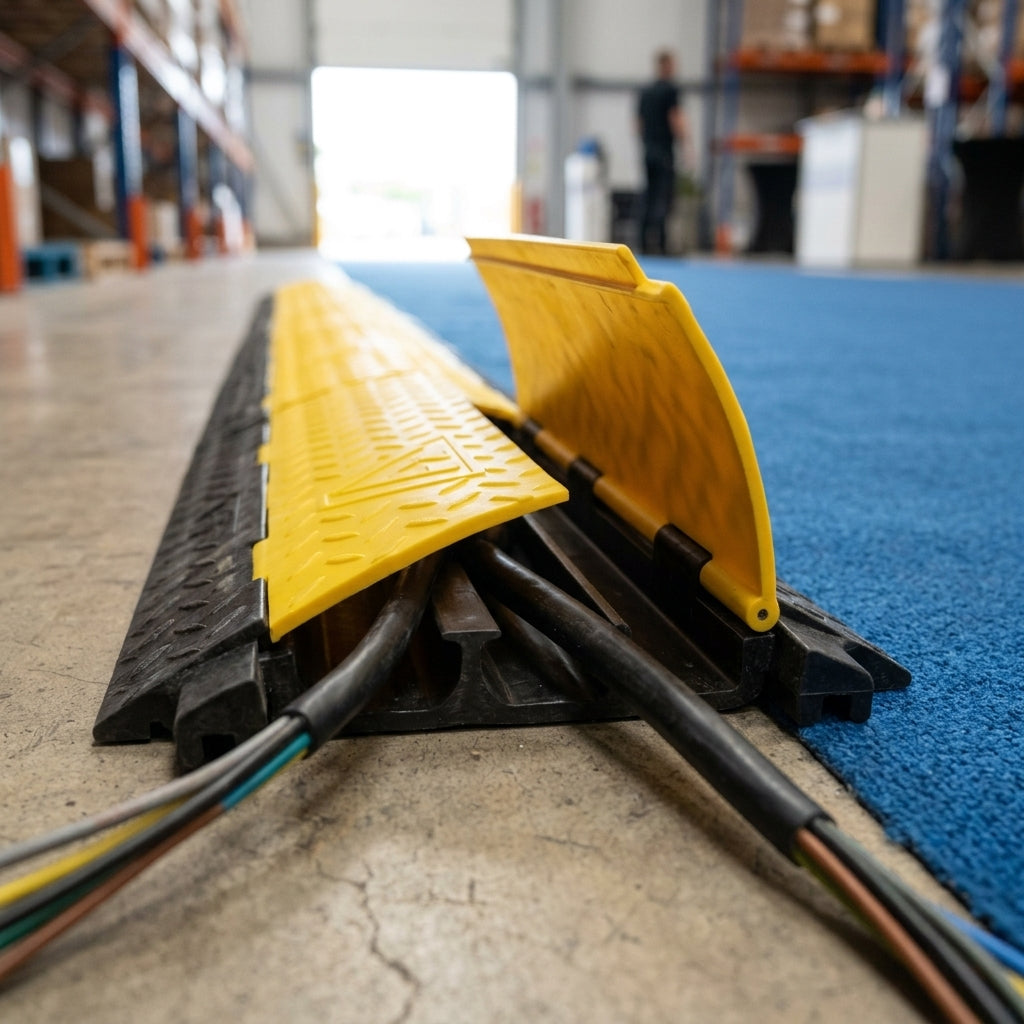

  • Hinged lid: rest it on the floor, open the lid and lay in the cables. The lid locks securely when closed and is self-cleaning.
  • Interlocking design: connect several units to cover your required cable length.
  • Weighs under 6kg, so it is easy to lift and move into position.
  • Suitable for indoor and outdoor use and can be left outside.

Build Quality & Safety

  • Made from non-breakable, 100% recyclable polyurethane, built for use in industrial areas.
  • Resistant to oil, acid and petrol, and to short-term contact with solvents.
  • Temperature resistant from -30°C to +60°C, with a shore A hardness of 88 ± 4.
  • Smooth surfaces, edges and corners help prevent injuries.
  • Fire protection class E to DIN EN 13501-1. TÜV SÜD certified.
  • Protects low-voltage cables up to 500V, such as communication, control and power-supply cables, as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
  • Made in Germany. Five-year warranty.

Care & Maintenance

  • Easy to clean, even with a steam jet cleaner; little maintenance is needed thanks to the self-cleaning lid.
  • Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with a silicone spray. Wipe off any excess afterwards to avoid a slip risk.

Good to Know

  • Sold in packs of 5 – the price shown is for a pack of 5 units.
  • Accessories are available, including 45° left and 45° right curves and female and male end ramps.
  • Pictures are for illustration only; the actual product may vary due to product improvements.
