Milled Surface Aluminium Loading Ramps for Steel Tracks (Pair) – 3500mm L x 390mm W, 9,145kg

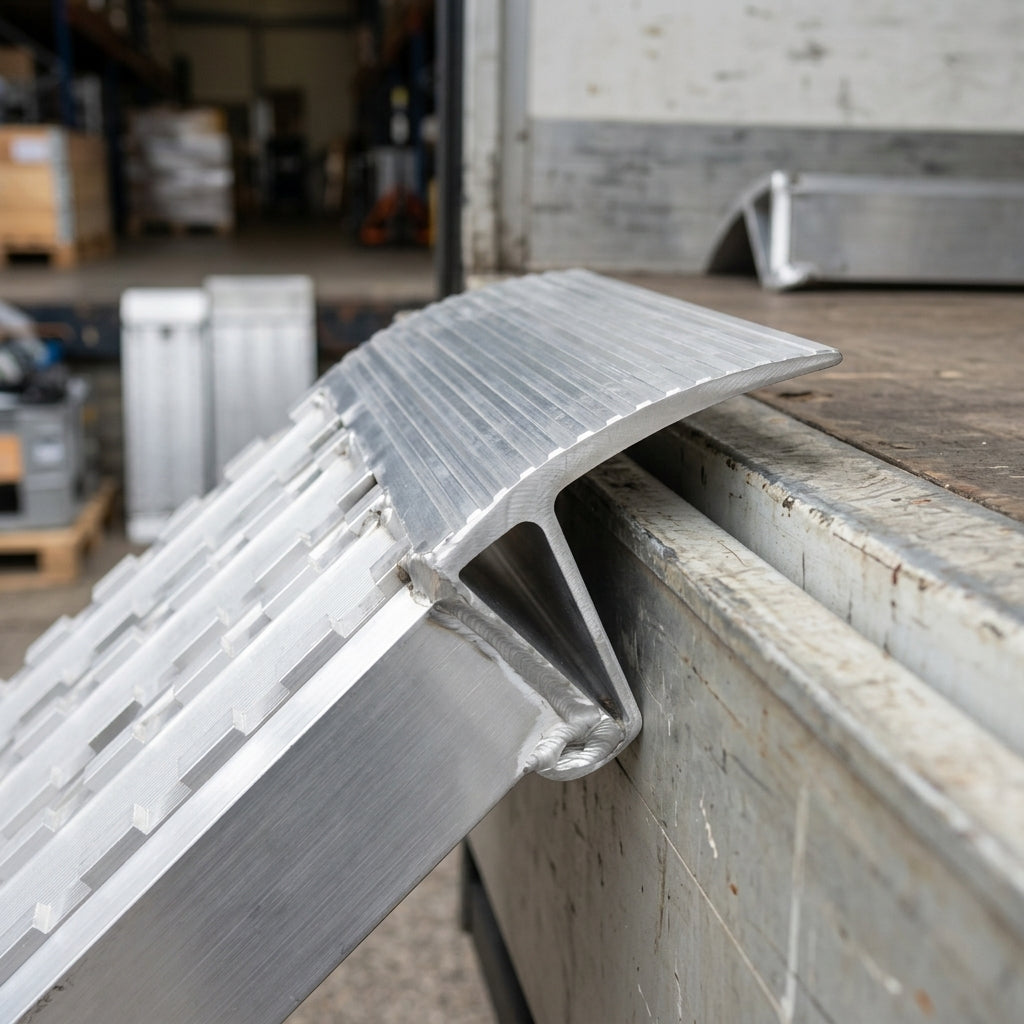

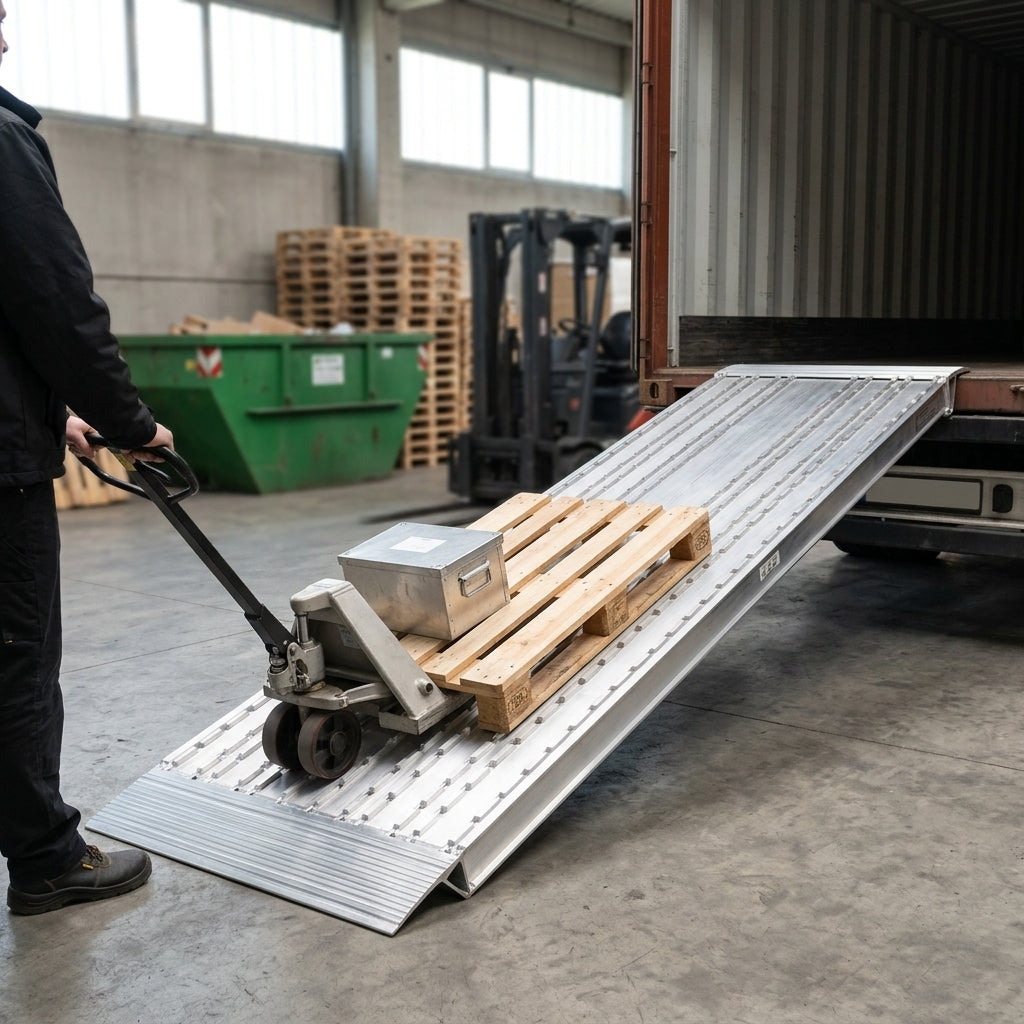

A pair of heavy-duty aluminium loading ramps with a milled surface, built for the toughest work: carrying steel-tracked vehicles and equipment. Each ramp is 3500mm long x 390mm wide with a 105mm profile thickness, and the pair is rated to 9,145kg. They work well as plant ramps, digger ramps and telehandler ramps, and as heavy-duty commercial ramps.

• Flat top with no external welds.
• Milled in 50/50mm steps as standard for steel-tracked machinery. A 25/30mm milled surface is available on request for machines with solid rubber wheels or rubber tracks.
• Rest-on connection as standard: the ramp simply rests on your vehicle, and a carabiner clip with steel chain is supplied to secure it. The shape of the ramp foot, the ramp angle and its weight also help keep it in place while loading.
• Other connection options, such as a hook connection, are available. Just let us know after ordering.
• Fully TÜV certified.
• Easy to fit. Made in Europe. Finished in black.
• Two-year warranty.

• Size (each ramp): 3500mm L x 390mm W x 105mm profile thickness.
• Load height: suits a load height of 900mm to 1050mm (the vertical height from the ground to where the ramp rests).
• Weight: 60.5kg per ramp, 121kg per pair.
• Capacity by vehicle wheelbase: 5,485kg at 1000mm, 6,860kg at 1500mm and 9,145kg at 2000mm.
• Price and capacity are for the pair.
• The stated capacities only apply to vehicles whose weight is evenly distributed. If your vehicle's weight is not evenly spread, ask us for advice before ordering.

• Custom sizes and custom load heights are available, and bespoke ramps can be quoted on request.
• For a quote, we need your load height, details of what you are loading and its maximum weight. For low-clearance machines, please also send the vehicle's data sheet.

• Product images are for illustration only; the actual ramps may differ slightly due to product improvements.
