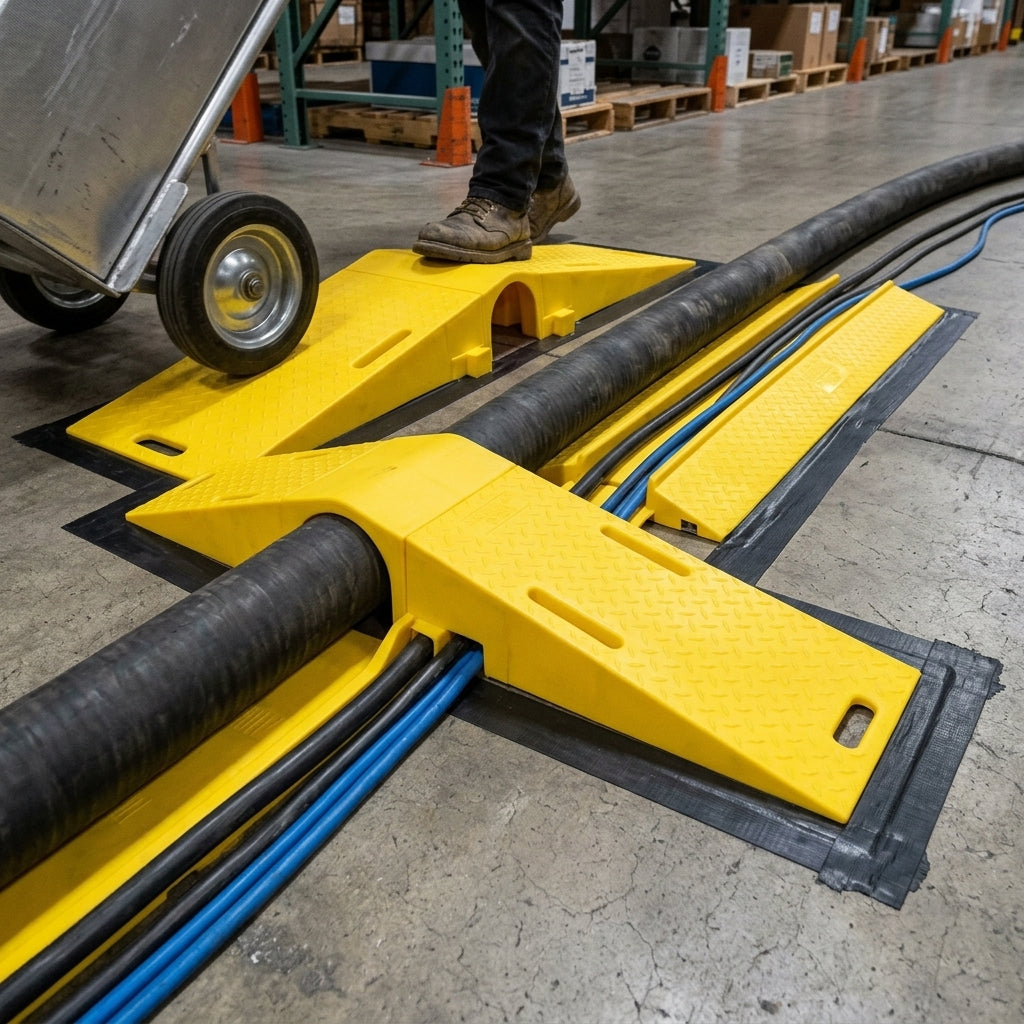

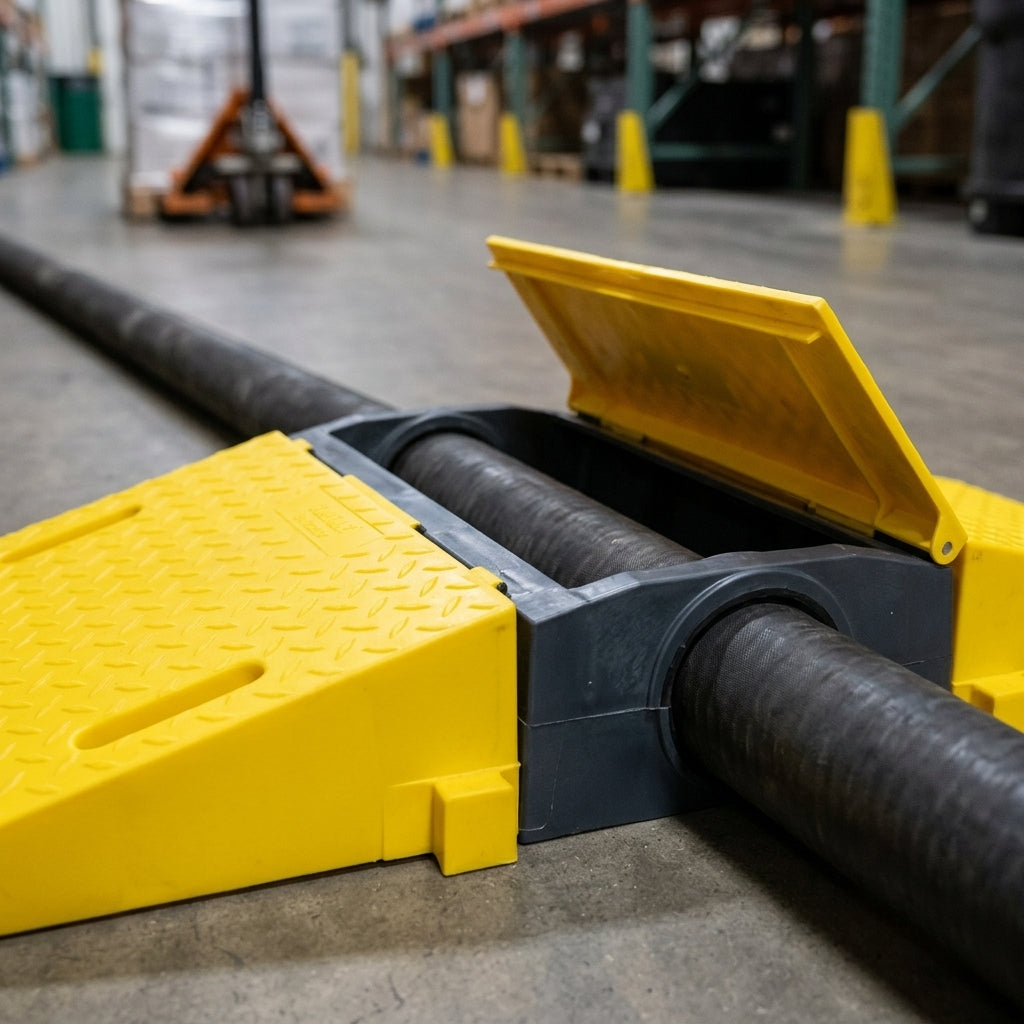

Single Tunnel Hose Bridge Kit for 4.5" / 114.3mm Hoses – 1118mm L x 406mm W x 141mm H, 8754kg Per Axle

A complete single-tunnel hose bridge kit that protects valuable cables and hose lines while giving vehicles a safe way to cross them. Made from high-density, all-weather urethane, it shields lines from damage caused by physical pressure, cutting maintenance and replacement costs for cables and hoses. It takes hoses and cables up to 4.5" (114.3mm) in diameter.

• Polyurethane construction that resists abrasion, impact and weather, with a high load-bearing capacity of 8754kg per axle.
• Diamond-plate tread surface for better traction.
• Yellow caution colour for high visibility.
• Modular interlocking design that is lightweight and easy to transport, set up, take apart and store.
• Built-in hand holds make handling easy and double as attachment points for mounting brackets.
• Easy to fit.
• One-year warranty.

• Overall: 1118mm L x 406mm W x 141mm H; weight 22.7kg.
• 1 channel, 114.3mm diameter.

• Speed limit when crossing: under 5mph.
• Any vehicle crossing the bridge system must have more ground clearance than the height of the bridge.
• For rubber-tyred vehicles only – not for equipment with metal tracks.

• The actual product may vary slightly due to ongoing product improvements.
