Orange 1-Channel Drop-Over Cable Cover for Cables up to 1" (25.4mm) – 914.4mm L x 273mm W x 38.1mm H, 954kg Per Axle
£312.00
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview

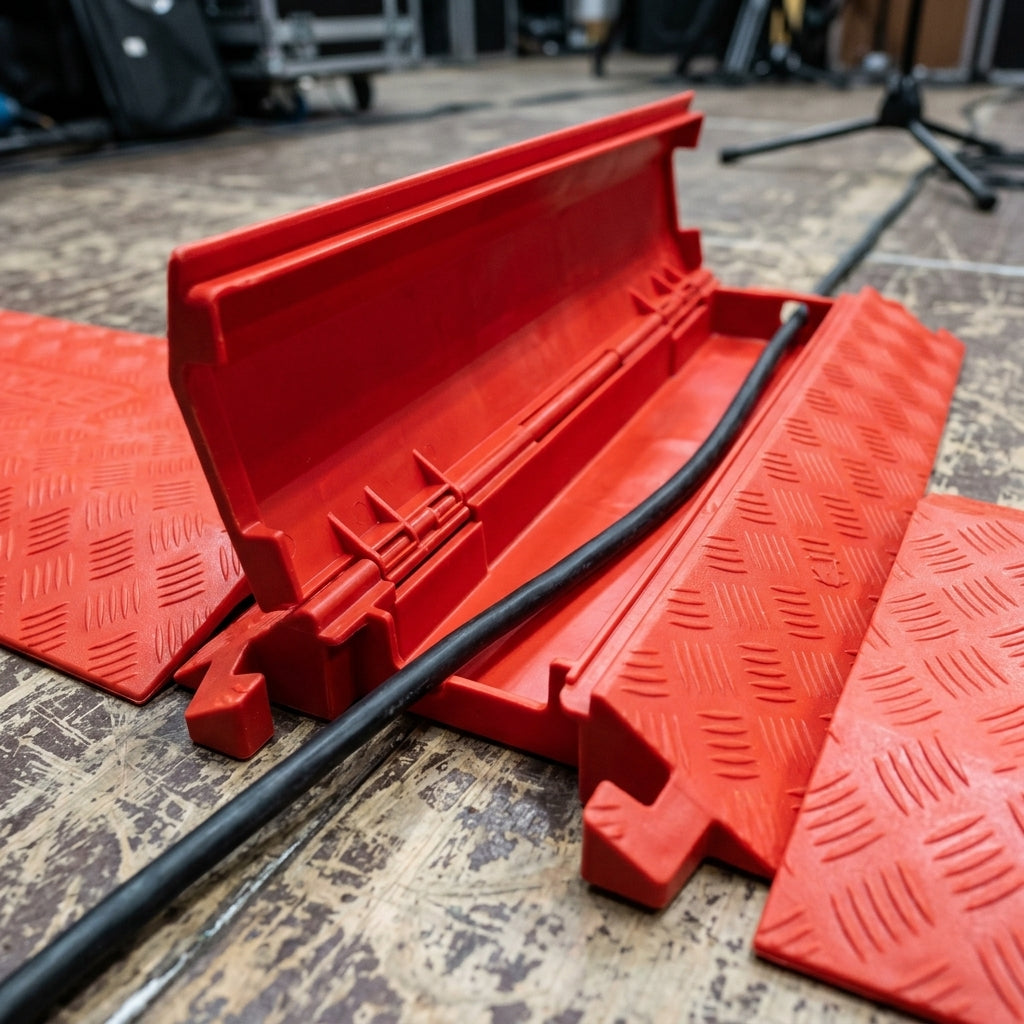

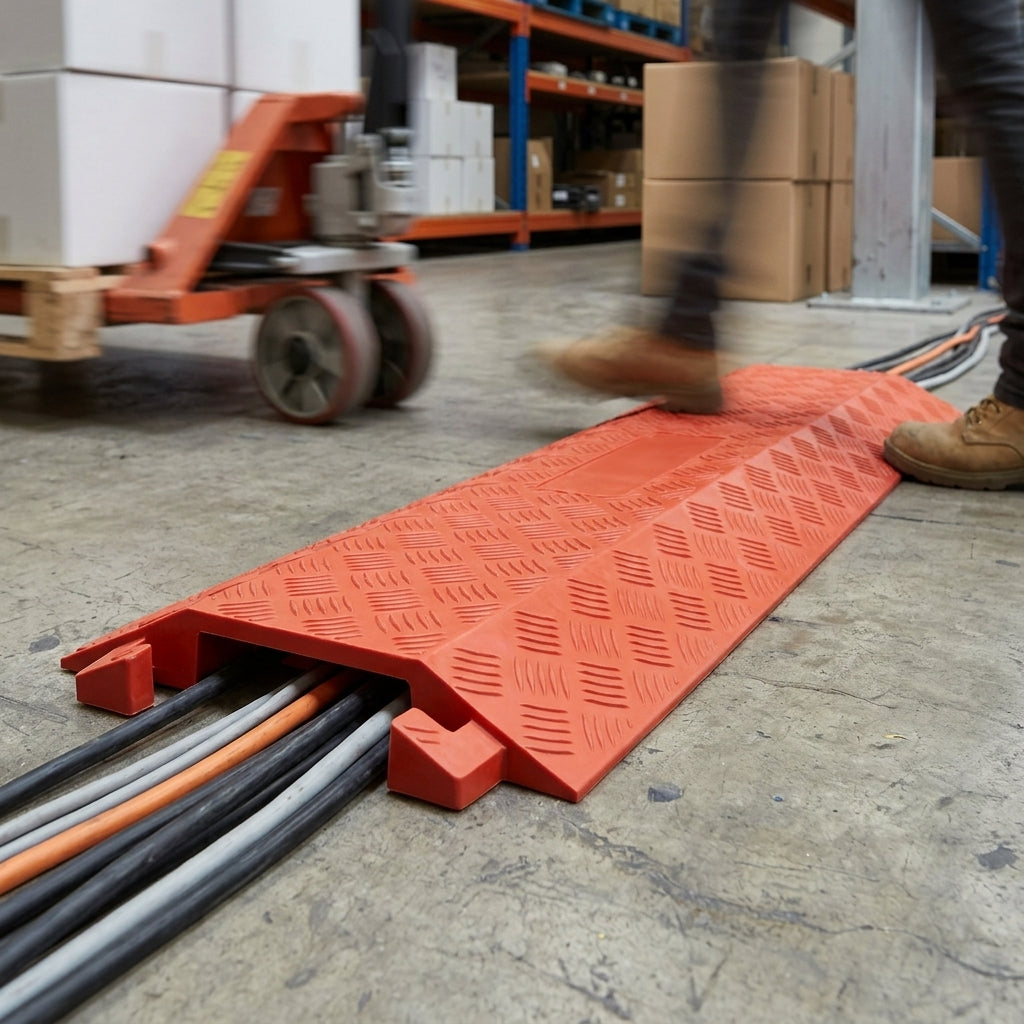

An orange, single-channel drop-over cable cover with a 4" (101.6mm) wide channel that holds a cable or hose up to 1" (25.4mm) in outside diameter. Made for pedestrian traffic and lightweight vehicles, and fine to leave outside.
Specifications
| Size | 914.4mm L x 273mm W x 38.1mm H |
|---|---|
| Height (mm) | 38.1 |
| Length (mm) | 914.4 |
| Width (mm) | 273 |
| Channel Width (mm) | 101.6 |
| Channel Size (mm) | 101.6 x 25.4 |
| Channel Height (mm) | 25.4 |
| Capacity (kg) | 954 |
| Weight (kg) | 3.6 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Orange |
| Max Cable/ Hose Diameter (mm) | 25.4 |
| No. Channels | 1 |
| Capacity per Axle (kg) | 954 |
| Capacity per Tyre (kg) | 477 |
| Operating Temperature (deg. F) | 70 |
| Speedlimit (mph) | 10 |
| Colour Options | Black |
Features
- Protects cables and hoses up to 1.0" outside diameter.
- Patented L-connectors let you extend the run to any length.
- For lightweight vehicles and pedestrians, with a capacity of 954kg per axle (477kg per tyre).
- Patented 5-bar tread surface for maximum traction.
- Universal safety colours with UV stabilisers.
- Modular interlocking design for quick, easy setup.
- Easy to fit and suitable to leave outside.
- One-year warranty.
Size
- Each section: 914.4mm L x 273mm W x 38.1mm H; weight 3.6kg.
- 1 channel, 101.6mm W x 25.4mm H.
Good to Know
- Speed limit when crossing: 10mph.
- The actual product may vary slightly due to ongoing product improvements.
Need more width or reach?
All cable protectors & covers →Wider tracks

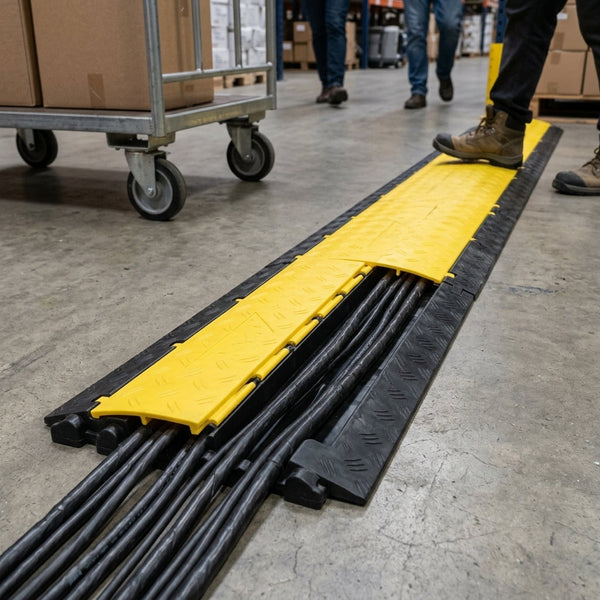

Low Profile 6-Channel Cable Protector – 1000mm L x 280mm W x 32mm H, 2,000kg, Yellow (Pack of 5)
£1,080.00
Longer reach

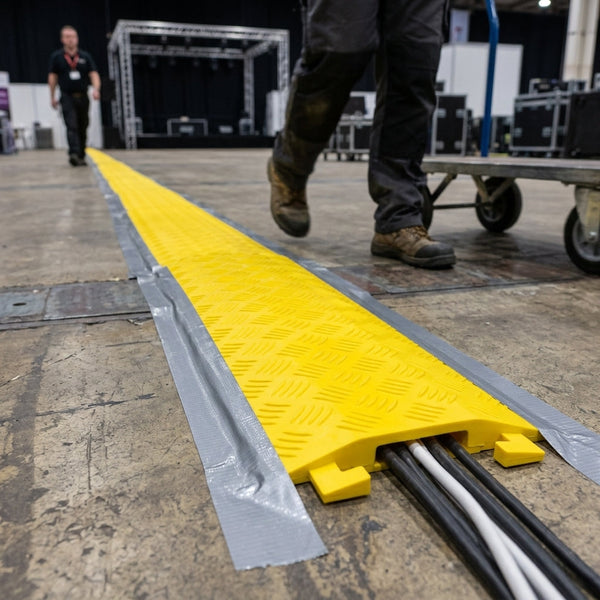

20mm High Yellow Single-Channel Cable Cover for Cables up to 12.7mm – 959mm L x 131mm W
£36.00
Higher capacity

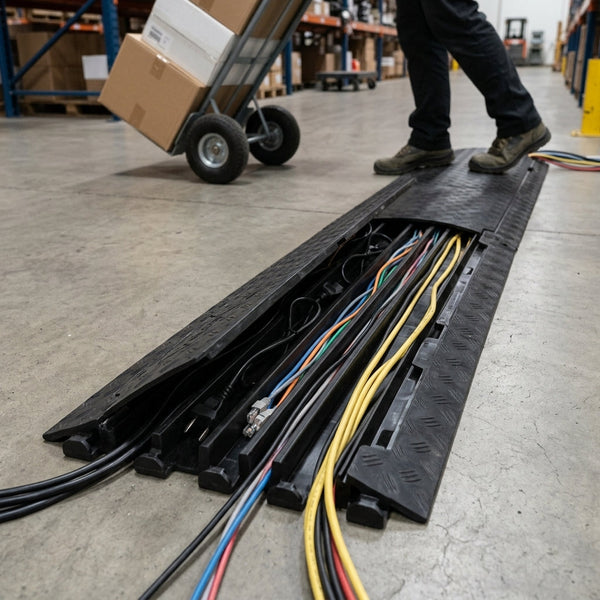

Low Profile 6-Channel Cable Ramp – 1000mm L x 280mm W x 32mm H, 2,000kg, Black (Pack of 5)
