Non-Folding Aluminium Loading Ramps Pair 4000mm x 315mm – 1,200kg Capacity

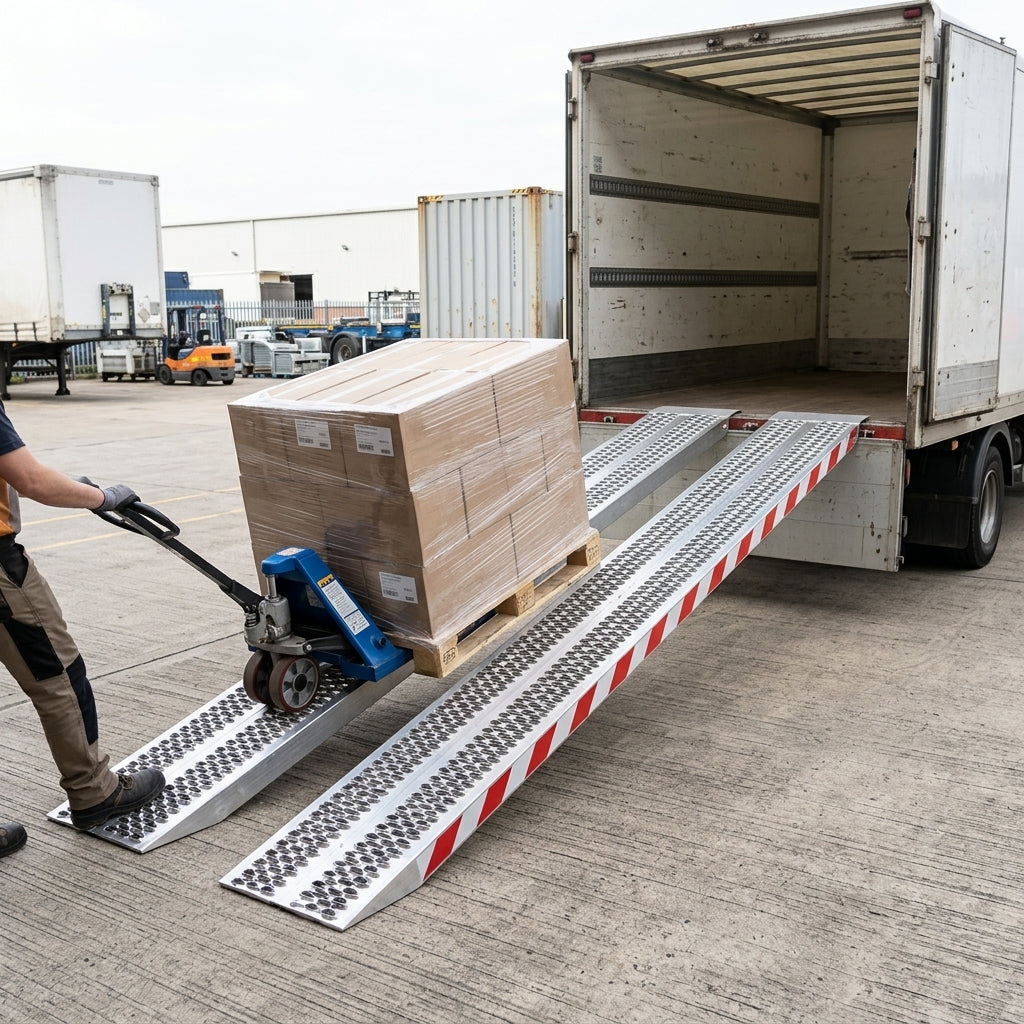

A pair of straight, one-piece aluminium loading ramps, each 4000mm long x 315mm wide, for professional work or frequent home use. Together they carry up to 1,200kg, making them a strong choice for loading small plant and wheeled machinery onto vans, trailers and flat-bed vehicles. Made in Italy and TÜV certified for safe use in commercial settings. Price and capacity are for the pair.

• One-piece design with zero welding – strong yet compact.
• High-traction grip surface with large cut-out holes so dirt drops straight through; rated R13 slip resistance (DGUV 108-003).
• Low 70mm profile height – the ramps lie flat and store easily in the van or trailer.
• Made from lightweight aluminium, durable and lighter than steel.
• Portable – each ramp weighs just 27kg, so it is easy to lift into position when needed.
• Angled foot, precision cut for the recommended load height, for a smooth roll onto the ramp with wheeled vehicles.
• Flat top with no edges for greater flexibility of use.
• TÜV certified to safely support the stated maximum capacity.
• European manufactured, with a two-year warranty.

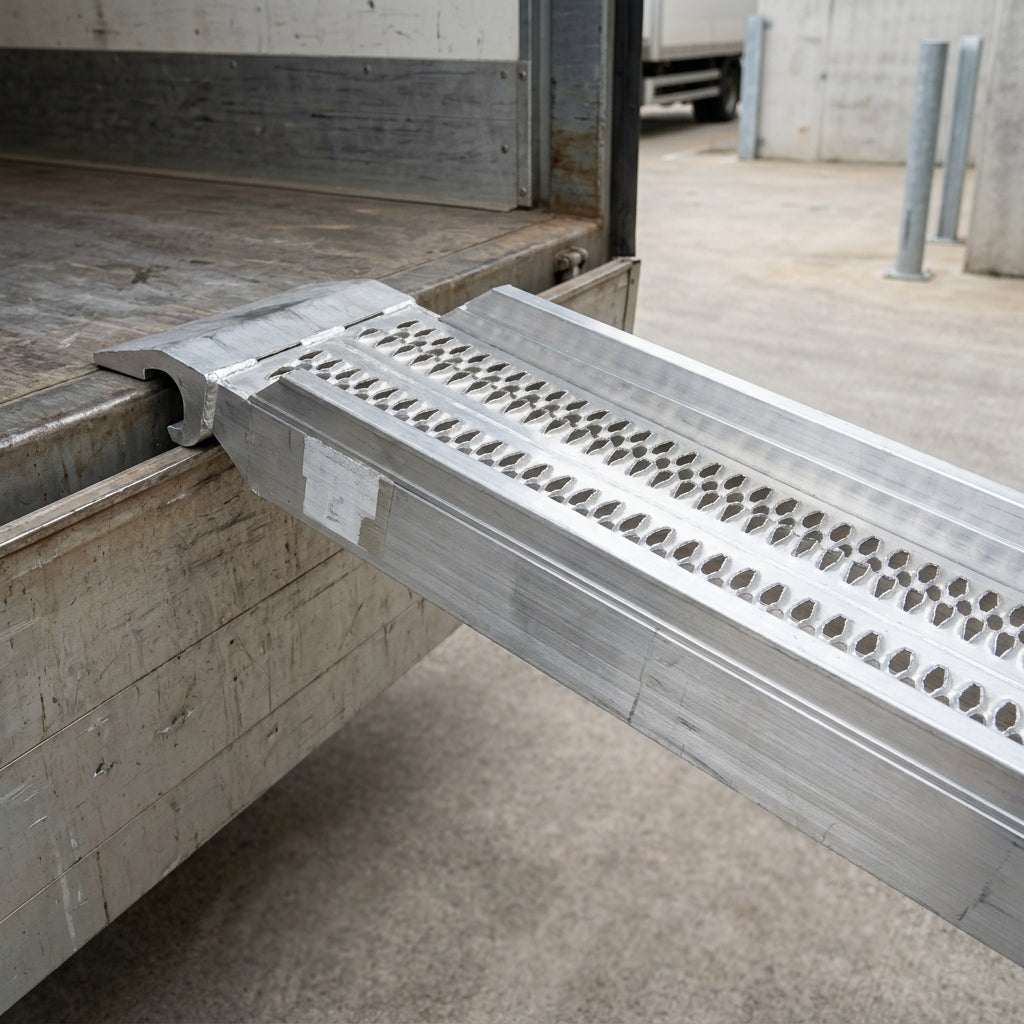

• Supplied as standard with a curved rest-on connection with a pre-drilled hole and pin, to secure the ramps to your vehicle during loading. This suits flat-bed vehicles.
• Four connection options are available in total. If you need an alternative such as a hook connection, just let us know after you place your order.
• The curved connection, angled foot, the ramp's own weight and its gradient all work together to keep the ramps firmly in place.

• Designed for load heights between 1050mm and 1200mm – measure the vertical height from the ground to where the ramp will rest on your vehicle to check this length suits you.
• Capacity up to 1,200kg across the pair with a 1,500mm wheelbase (see the table below for shorter wheelbases).
• Suits track widths from 150mm to 295mm.

• The grip surface gives excellent traction, so make sure your tyres have enough tread to avoid damage. If your tyres have little tread, a smoother-surface ramp is a better choice.
• Always wear gloves and take extra care when handling these ramps, because of the grip surface.

• Customised ramps can be quoted. Have your load height, details of what you are loading and its maximum weight ready – for low-clearance machines, the vehicle's data sheet is also needed.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
