45° Curve for 3-Channel Cable Protector – 45mm x 50mm & 52mm x 49mm Channels, 5000kg
£516.00
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview

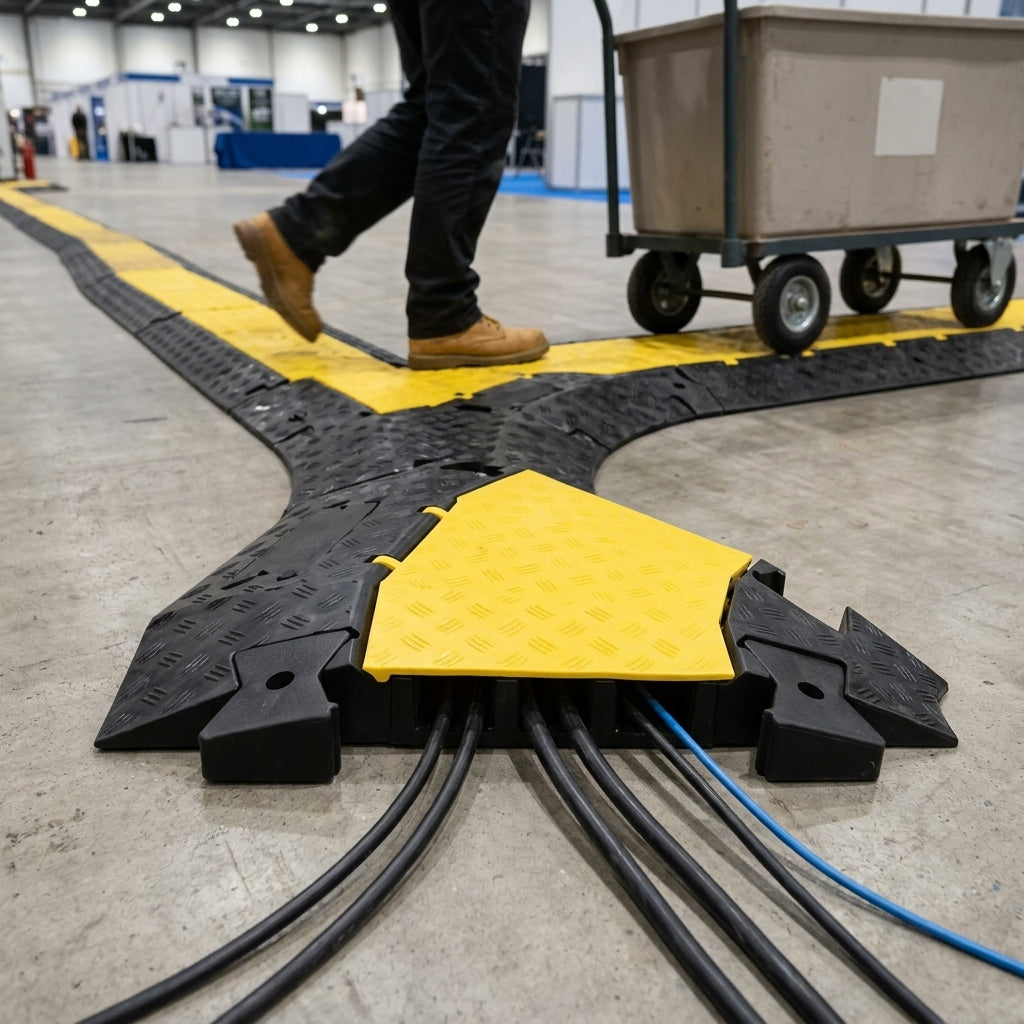

A 45° curved section for our 3-channel cable protector (45mm x 50mm / 52mm x 49mm channels), letting your cable run turn a corner while staying fully protected. Like the straight sections, the curve has three channels and a 5,000kg capacity, and is suitable for indoor and outdoor use.
Specifications
| Size | 45° Curve – Channels 1 x 45mm x 50mm, 2 x 52mm x 49mm |
|---|---|
| Capacity (kg) | 5.000 |
| Weight (kg) | 5,226 |
| Five Years Warranty | Yes |
| Bulk Prices Available | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Colour Options | Black |
Features
- 45° curve with 3 channels: one 45mm x 50mm and two 52mm x 49mm.
- 5,000kg capacity.
- Made from 100% recyclable plastic.
- Resistant to oil, acid and petrol, and to short-term contact with solvents.
- Fire protection class E.
- TÜV certified.
- Developed and made in Germany.
- Five-year warranty.
Use & Care
- Protects low-voltage cables up to 500V – such as communication, control and power-supply cables – as well as water and sewage pipes. Not suitable for rigid gas pipes.
- Only compatible with the matching 3-channel cable protector linked above.
- Easy to clean, even with a steam jet cleaner. Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not create a slip risk.
- Bulk pricing is available.
