45° Curve Section for 5-Channel Cable Protector – 34mm x 36mm Channels, 5,000kg
£504.00
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview

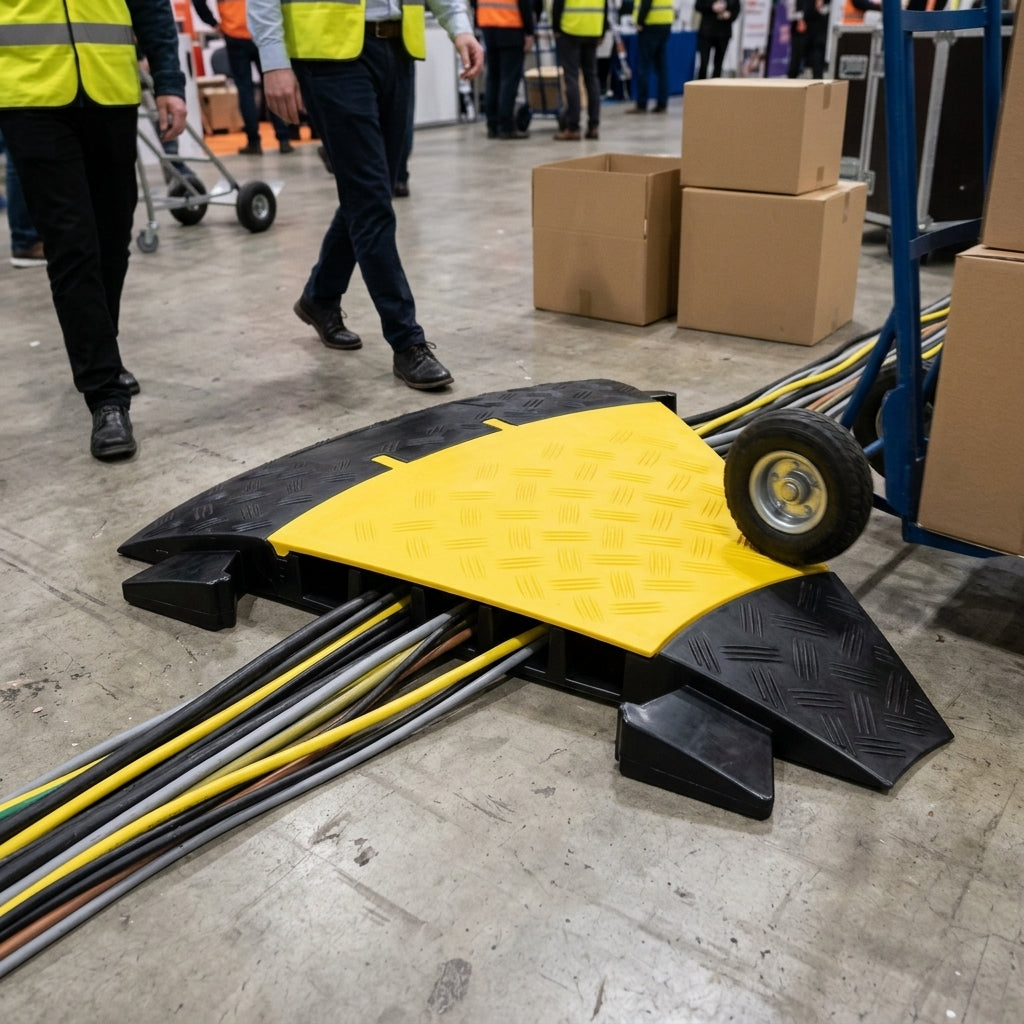

A 45-degree curved section that lets all five cables of the 5-channel cable protector (34mm x 36mm channels) turn a 45° corner neatly and safely. It is designed only for use with that cable protector.
Specifications
| Size | 52mm H – 45° Curve, 5 Channels 34mm x 36mm |
|---|---|
| Height (mm) | 52 |
| Channel Width (mm) | 4 |
| Channel Size (mm) | 34 x 36 mm |
| Channel Height (mm) | 36 |
| Capacity (kg) | 5,000 |
| Curved | Yes |
| Weight (kg) | 3.55 |
| Safety Standard | DEKRA safety certified, Fire Protection Class B |
| Five Years Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| No. Channels | 5 |
| Operating Temperature (deg. F) | -22 to 140 |
| Colour Options | Black |
Features
- 5 channels, each 34mm x 36mm.
- Load capacity of approx. 5,000kg on a 20cm x 20cm area.

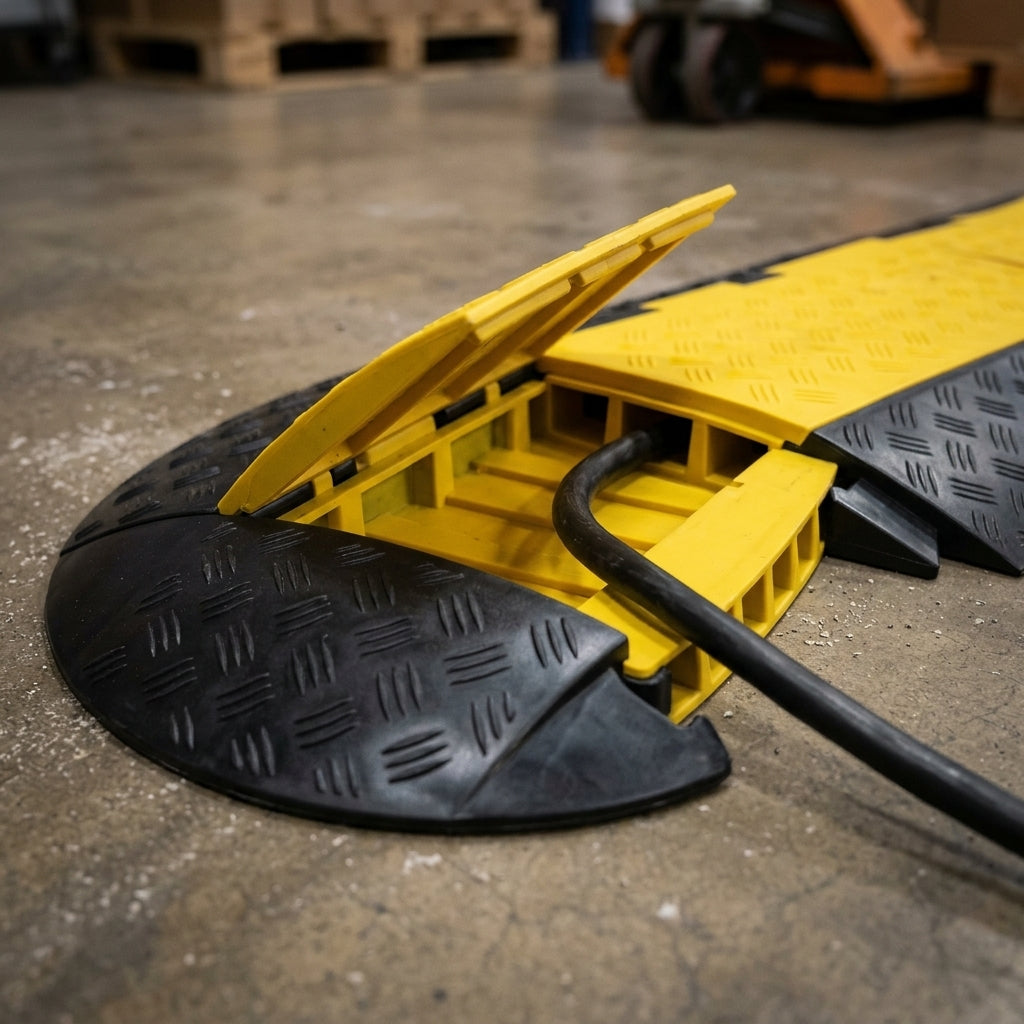

- Highly visible hinged lid.
- Made from thermoplastic polyurethane, resistant to most acids, oils and petrol.
- Suitable for indoor and outdoor use, and can be left outside.
- Fire protection class B2 (DIN 4102); TÜV SÜD certified.
- Operating temperature -22°F to 140°F.
- Easy to fit. Five-year warranty.
Size
- Height: 52mm
- Weight: 3.55kg
- Angle: 45°
Good to Know
- Protects low-voltage cables up to 500V (such as communication, control and power-supply cables) as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
- Easy to clean with water or even a steam jet cleaner. Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not become slippery.
- Part of a premium cable protection range developed and made in Germany from 100% recyclable plastic.
- Pictures are for illustration only; the actual product may vary due to product improvements.
