4790mm Vehicle Accessible Ramp with Handrails 1250mm Width

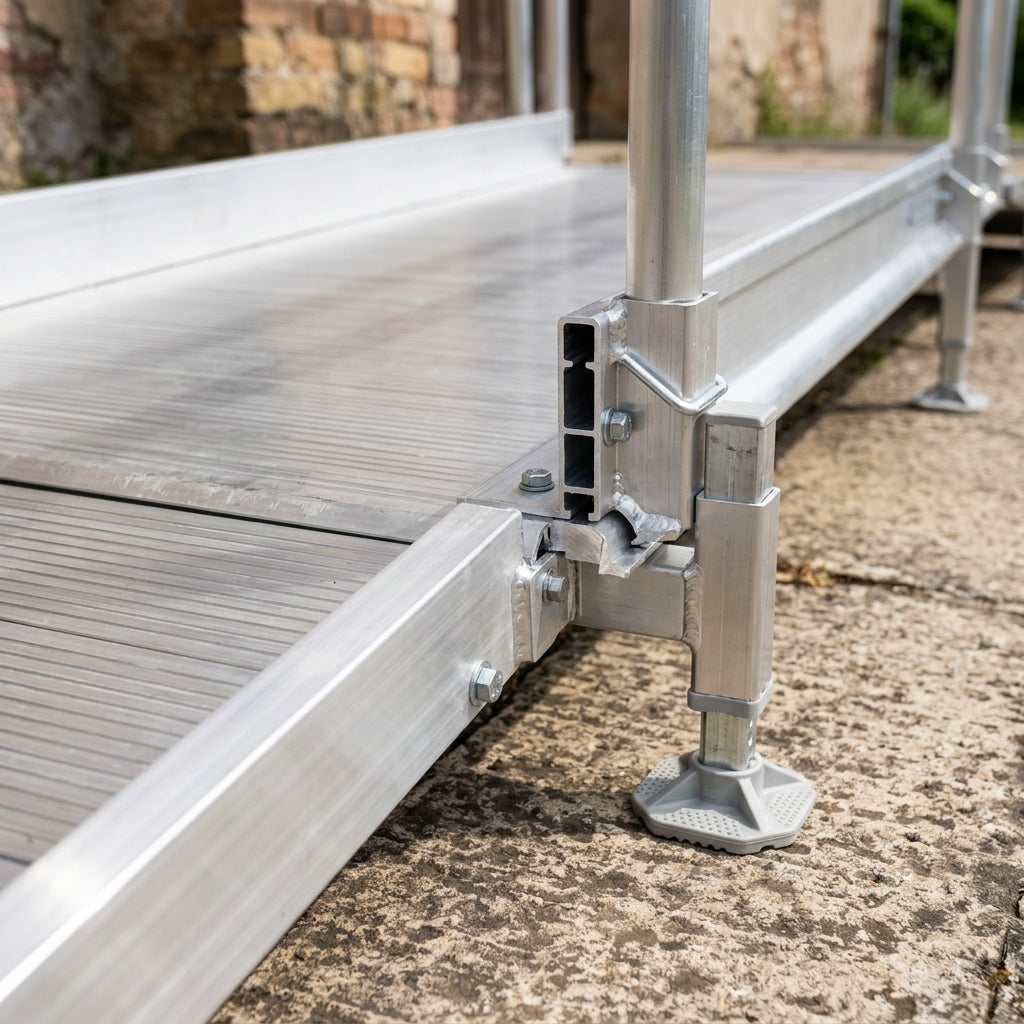

4790mm Vehicle Accessible Ramp with Handrails 1250mm Width (view 2)
1 / 2

Vehicle Access Ramp with Folding Handrails – 4790mm L x 1250mm W, 1292kg Capacity

£6,480.00 incl. VAT
Need more width or reach? Compare other sizes ↓

Not sure which length you need?

Send us the step height and who will use it — we'll confirm the right ramp before you order.

Call +44 1282 270214Email us
How long a ramp do you need?Open the ramp length checker

Overview

A portable vehicle access ramp with folding handrails, 4790mm long with a 1250mm usable width and a load capacity of 1292kg. It lets vehicles and pedestrians safely cross height differences caused by trenches, public works and construction sites.

Specifications

Size4790mm L x 1250mm Internal W x 1055mm H
Height (mm)1055
Internal Width (mm)1250
Length (mm)4790
External Width (mm)1370
Default ConnectionRest On Connection
Capacity (kg)1292
Max Load Height (mm)380
Weight (kg)147
Two Year WarrantyYes
CustomisableYes
Easy to FitYes
European MadeYes
Leave OutsideYes
Capacity Wheelbase 750mm (kg)1292
Capacity Wheelbase 1000mm (kg)1204
Colour OptionsBlack

Features

  • Rest-on connection: simply place the ramp and start using it. The curved connection has a pre-drilled hole so it can be secured to the step or kerb.
  • The angled foot end sits firmly on the ground and suits load heights of up to 380mm. Its own weight and the gradient also help hold the ramp in place.
  • R12 slip-resistant surface for vehicles and people on foot.
  • Ergonomic double handrails 1m high that fold down for easier transport.
  • Suitable for pedestrian access as well as vehicles.
  • Customisable, easy to fit, European made and can be left outside.
  • Finished in black. Two-year warranty.

Sizes & Capacity

  • Length: 4790mm
  • Internal (usable) width: 1250mm
  • External width: 1370mm
  • Height: 1055mm
  • Weight: 147kg
  • Capacity: 1292kg
  • Capacity by wheelbase: 1292kg at 750mm, 1204kg at 1000mm

Safe Use

  • Never exceed a maximum gradient of 8%.
  • Use the ramp with the handrails in place; fold them only for transport.
  • Pictures are for illustration only; the actual product may vary due to product improvements.

Ramp length checker

Measure from the ground to the top of the step or threshold.

Need more width or reach?

All wheelchair ramps →

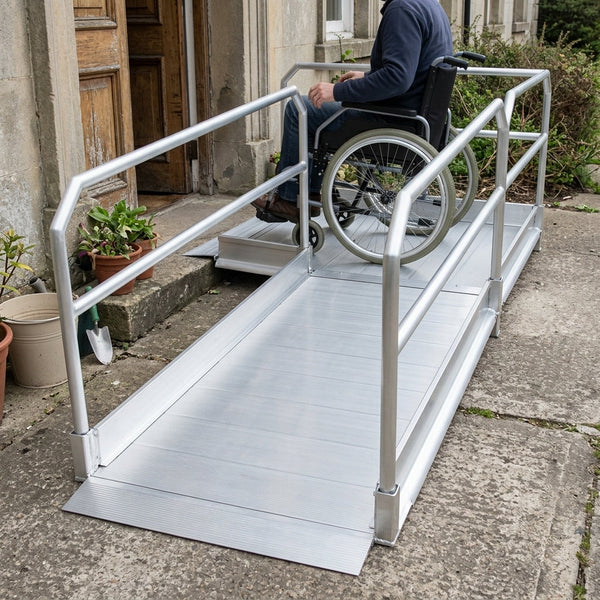

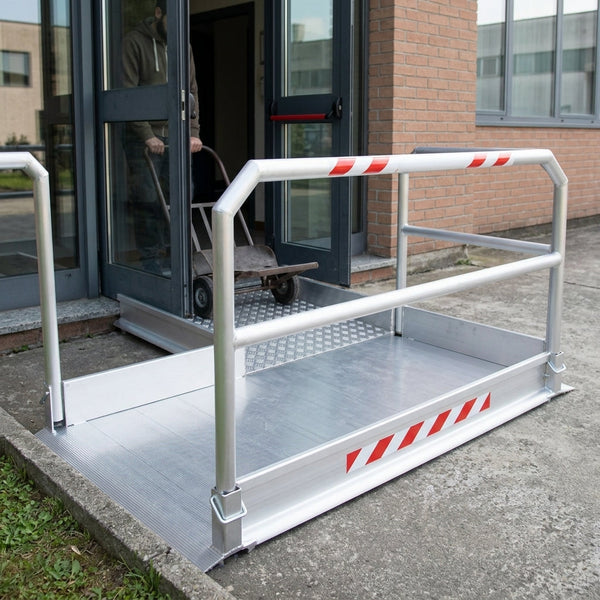

Longer reach5790mm Pedestrian Ramp with Handrails, 1000mm Internal Width Pedestrian Ramp with Folding Handrails – 5790mm L x 1000mm Internal Width, 400kg/m², Rises up to 460mm £6,600.00 Higher capacity1390mm Vehicle Accessible Ramp with Handrails, 1250mm Width Vehicle Access Ramp with Folding Handrails – 1390mm L x 1250mm Internal W, 1500kg Capacity £3,240.00
