Industrial Aluminium Loading Ramps (Pair) – 5000mm L x 580mm W x 230mm Profile, 10,000kg

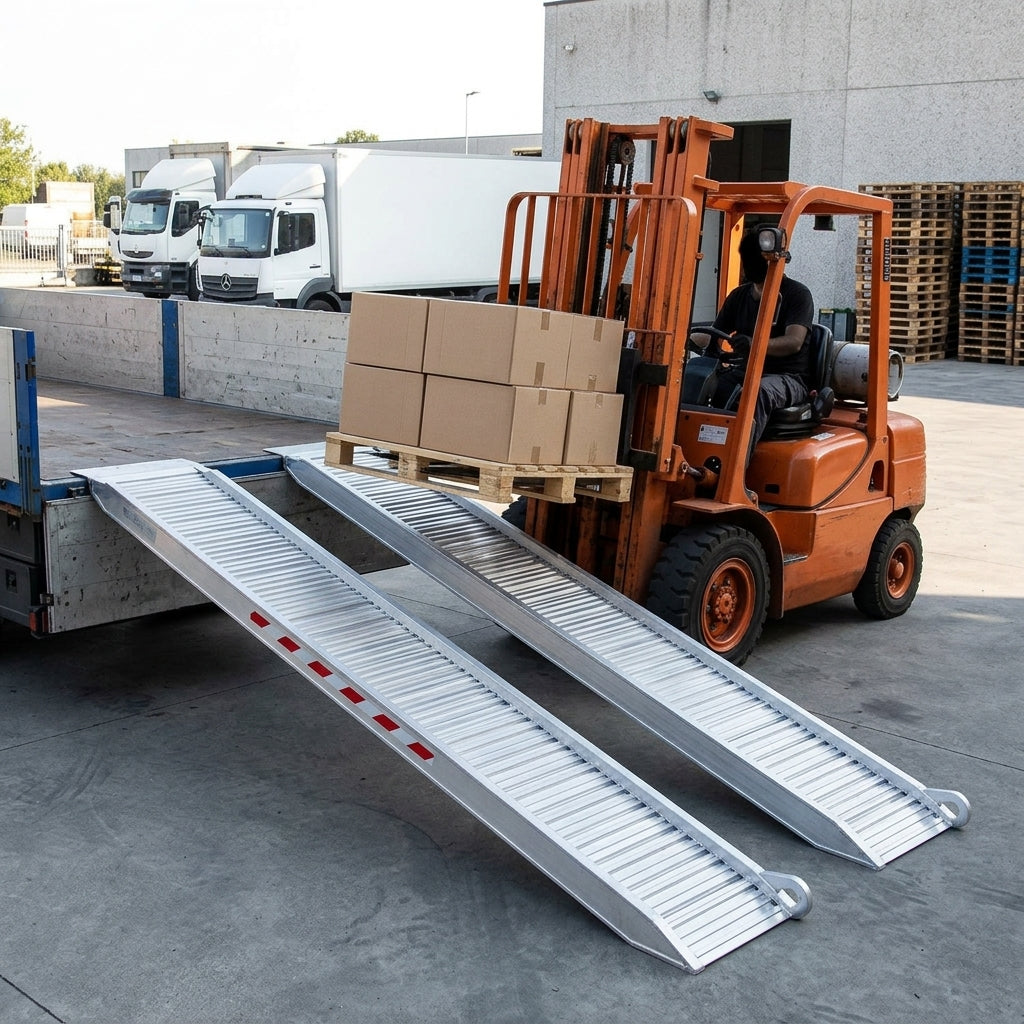

A pair of industrial loading ramps in aluminium, 5000mm long and 580mm wide with a 230mm profile, rated to 10,000kg for the pair. They are made for industrial plant and heavy-duty commercial loading. One of the two heaviest-duty ramps in the standard range, they are over half a metre wide.

• Maximum capacity 10,000kg across the pair. Capacity depends on the machine's wheelbase: 7500kg at 1000mm, 8570kg at 1500mm, 10,000kg at 2000mm.
• The stated capacities apply only where the vehicle's weight is spread evenly; if your machine carries more weight over one end, ask us to check suitability before ordering.
• Tracks or wheels must be at least 300mm wide, up to a maximum of 480mm.
• Suits a load height of 1350mm to 1500mm (measured from the ground to the point where the ramps rest).
• Each ramp weighs 109.5kg (219kg per pair).
• Not suitable for the solid wheels found on road surfacing machines; steel-tracked machinery needs industrial ramps with a suitable surface.
• Fully TÜV certified.

• Supplied as standard with a rest-on connection.
• Four connection options are available. To change from the standard rest-on connection, for example to a hook connection, let us know after you order.

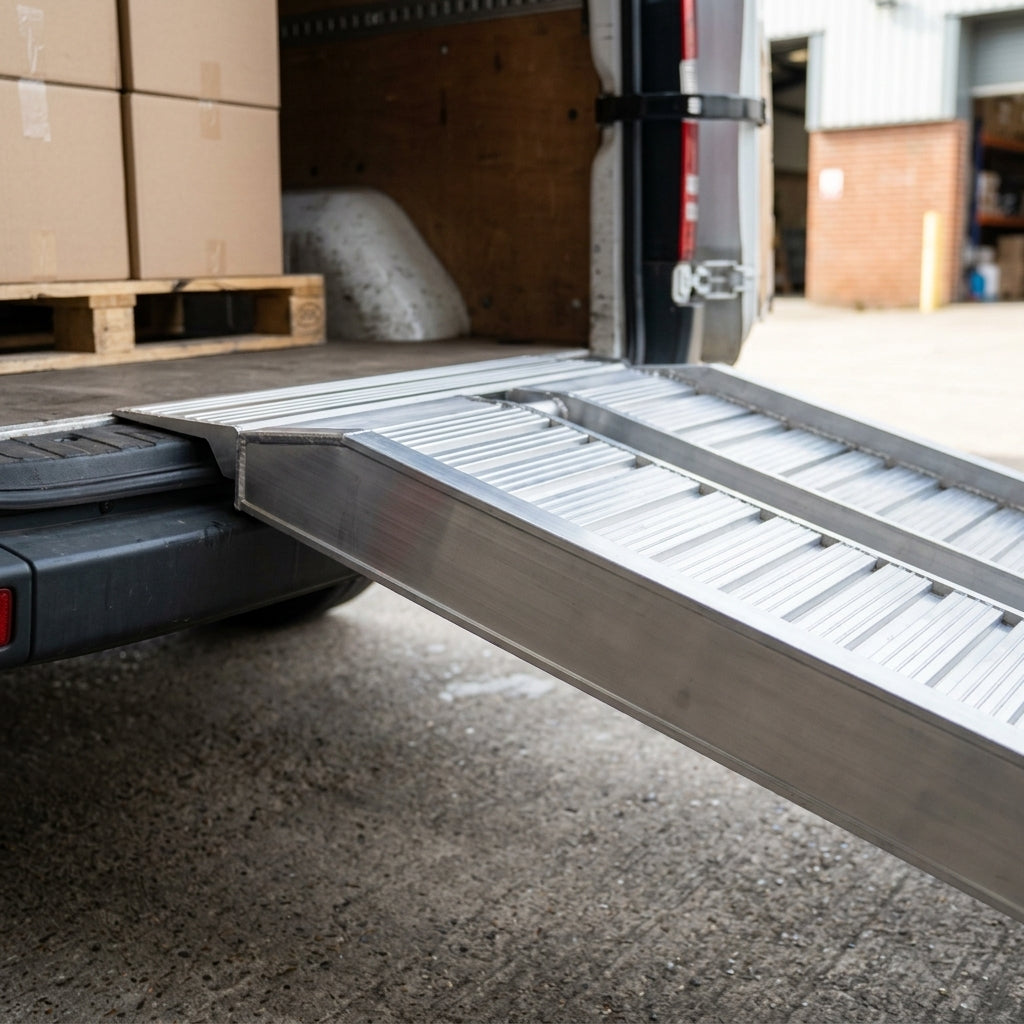

• The curved rest-on lip has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while its own weight and gradient hold it firmly in place.

• Built without side edges as standard; versions with edges are also available.
• Customisable: custom load heights and custom-built sizes are available on request.
• Quotes for bespoke ramps are available on request. To prepare one we need your load height, what you are loading and its maximum weight, plus the vehicle's data sheet for low-clearance machines.
• Easy to fit, made in Europe and covered by a two-year warranty.

• Sold as a pair; the price and capacity shown are for both ramps.
• Using the ramps outside their load height range is dangerous because they will not sit flush with the ground. Ramps can be custom cut for other heights, for example to give a gentler gradient.
• Product images are for illustration only; the actual product may differ slightly due to ongoing improvements.
