Heavy Duty Industrial Aluminium Loading Ramps (Pair) – 5500mm L x 580mm W x 230mm H, 8570kg Capacity

A pair of non-folding aluminium loading ramps, each 5500mm long and 580mm wide with a 230mm core profile thickness. Together they carry up to 8570kg, making them one of the heaviest-duty options in the standard range, ideal as industrial plant ramps and heavy-duty commercial ramps. The price and the stated capacity are for the pair.

• 8570kg capacity across the pair.
• Each ramp is 5500mm L x 580mm W, with a 230mm profile height.
• Suits tracks or wheels from 300mm up to 480mm wide.
• Built for a 1500mm to 1650mm load height (ground to where the ramp rests on your vehicle).
• Each ramp weighs 120.5kg (241kg for the pair).
• Fully TÜV certified and made in Europe.
• Two-year warranty.

• Supplied without side edges as standard; a version with edges is also available.

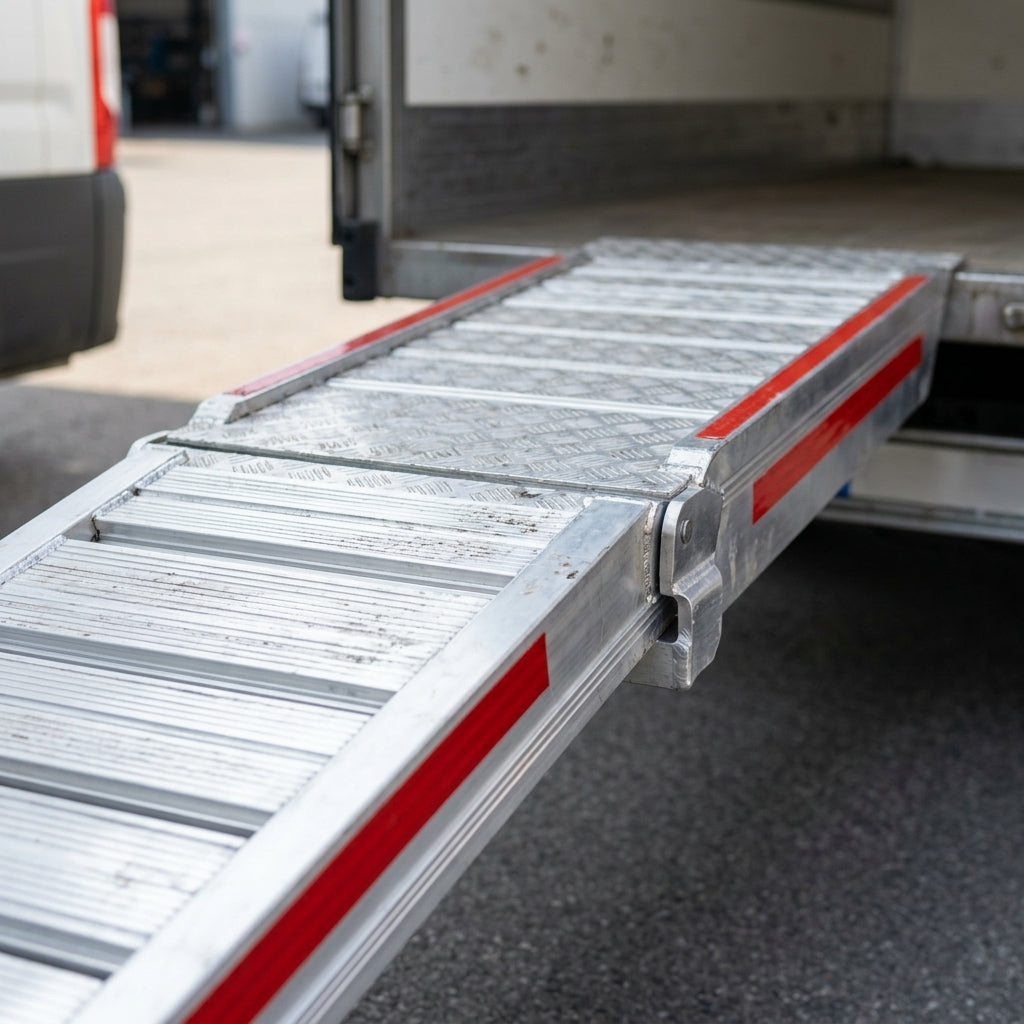

• Comes with a curved rest-on connection and a pre-drilled hole so the ramps can be secured to the vehicle.
• Four connection types are available in total. If you need something other than the rest-on connection, such as a hook, just let us know after ordering.
• The angled foot keeps the ramp planted on the ground, while the ramp's own weight and gradient help hold it firmly in place during loading.

• The maximum capacities only apply when the vehicle's weight is spread evenly. If your vehicle's weight is not evenly distributed, please check suitability with us before ordering.
• Capacity depends on the vehicle's wheelbase: 6670kg at 1000mm, 7500kg at 1500mm and 8570kg at 2000mm.
• Not suitable for the solid wheels found on road surfacing machines; machinery with solid wheels or steel tracks needs an industrial ramp instead.

• Use the ramps only within the stated load height range; outside it they will not sit flush with the ground, which can be dangerous. Ramps can be custom cut for other heights, for example to give a gentler gradient.
• Custom load heights and bespoke sizes are available, with quotes on request.
• For a custom quote we need your load height, details of what you are loading and its maximum weight. For low-clearance items, please also supply the vehicle's data sheet.
